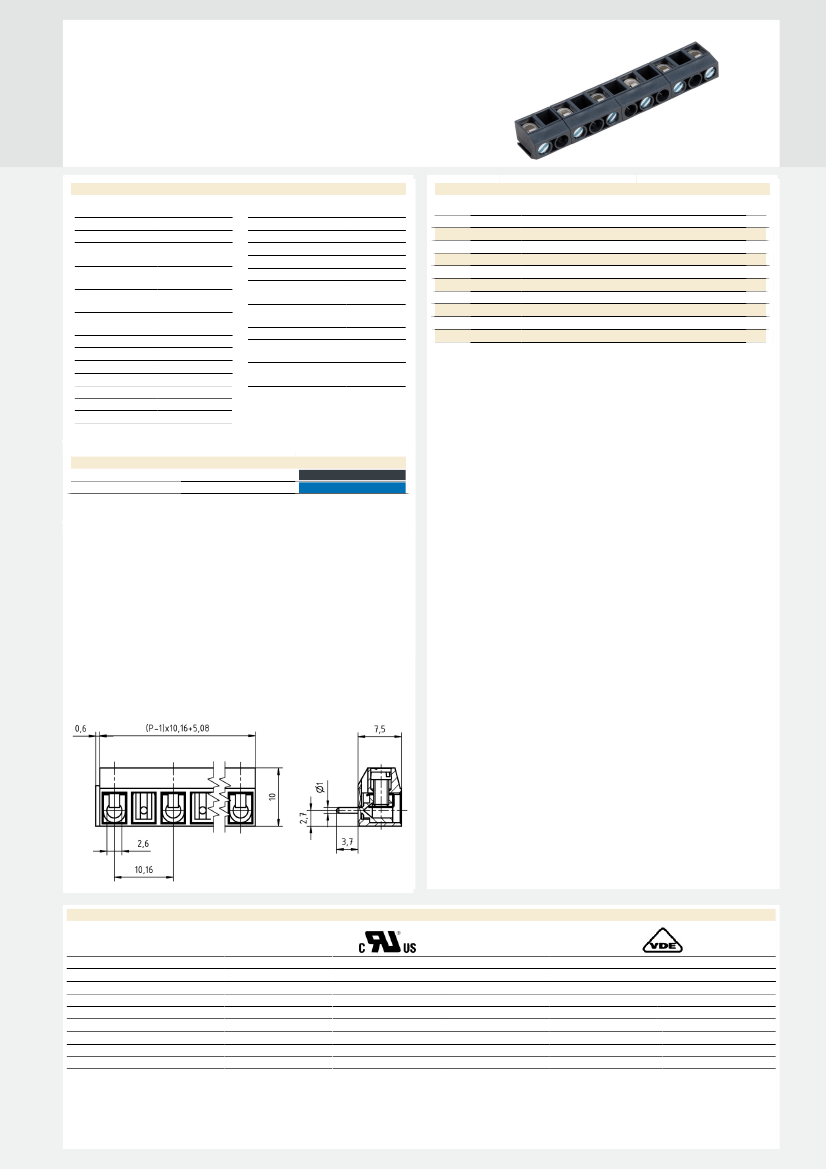

Wire Guard |
Spacing 10.16 mm
AKZ500/..DS-10.16-H-GREY
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
15.84
26.00
36.16
46.32
56.48
66.64
76.80
86.96
97.12
107.28
117.44
Article Designation
AKZ500/2DS-10.16-H-GREY
AKZ500/3DS-10.16-H-GREY
AKZ500/4DS-10.16-H-GREY
AKZ500/5DS-10.16-H-GREY
AKZ500/6DS-10.16-H-GREY
AKZ500/7DS-10.16-H-GREY
AKZ500/8DS-10.16-H-GREY
AKZ500/9DS-10.16-H-GREY
AKZ500/10DS-10.16-H-GREY
AKZ500/11DS-10.16-H-GREY
AKZ500/12DS-10.16-H-GREY
Article Number
50500020251G
50500030251G
50500040251G
50500050251E
50500060251E
50500070251D
50500080251D
50500090251D
50500100251D
50500110251D
50500120251D
PU
250
250
250
100
100
50
50
50
50
50
50
Stranded with Ferrule 0.2 mm²
min
Stranded with Ferrule 1.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Clamp
Wire Guard
Screw
Brass
Stainless Steel
Steel
5.0 mm
1.3 mm
Colours
GREY
BLUE
RAL7016
RAL5015
RAL7016
RAL5015
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
300 V
15 A
AWG 22-14
AWG 22-14
0.40 Nm
M2.6
1.6 kV
C
150 V
15 A
AWG 22-14
AWG 22-14
0.40 Nm
M2.6
1.6 kV
D
-
-
-
-
-
-
-
min
0.5 mm²
0.5 mm²
750 V
17.5 A
max
1.5 mm²
1.5 mm²
0.40 Nm
M2.6
3.5 kV
