5VTP1.25-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 5VTP1.25-R

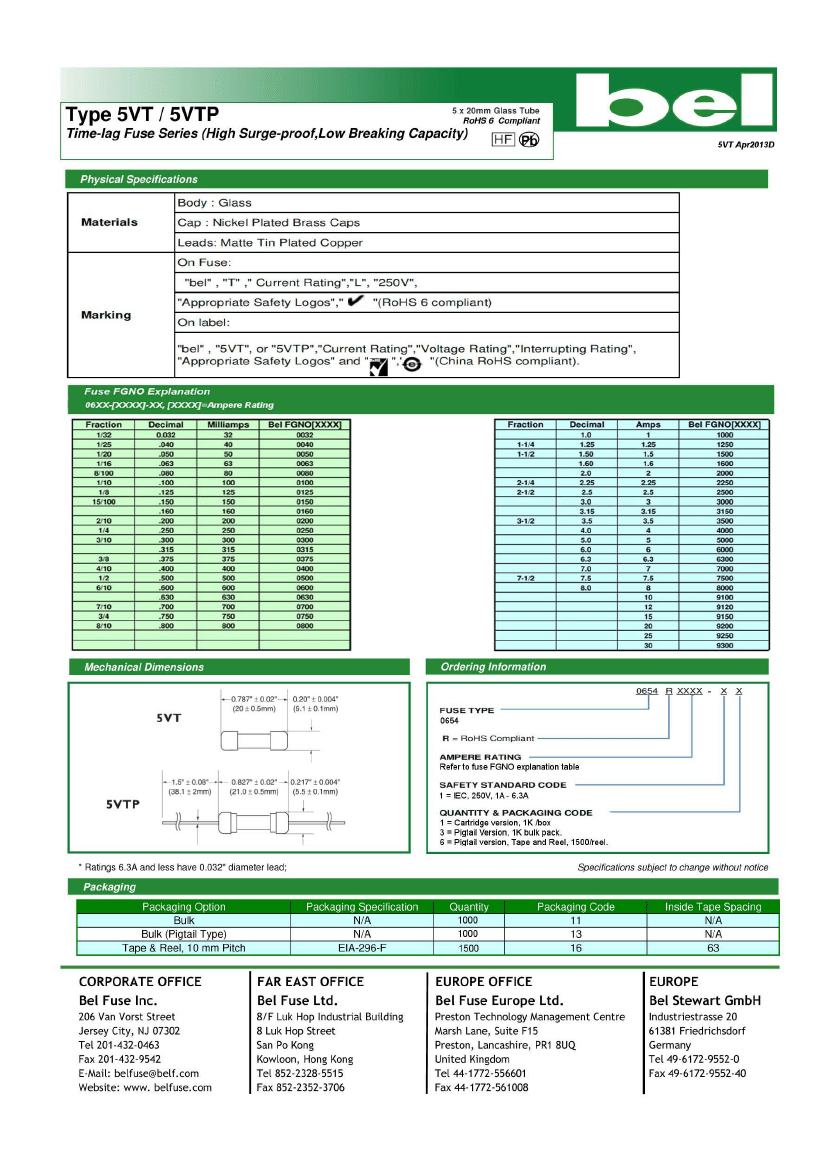

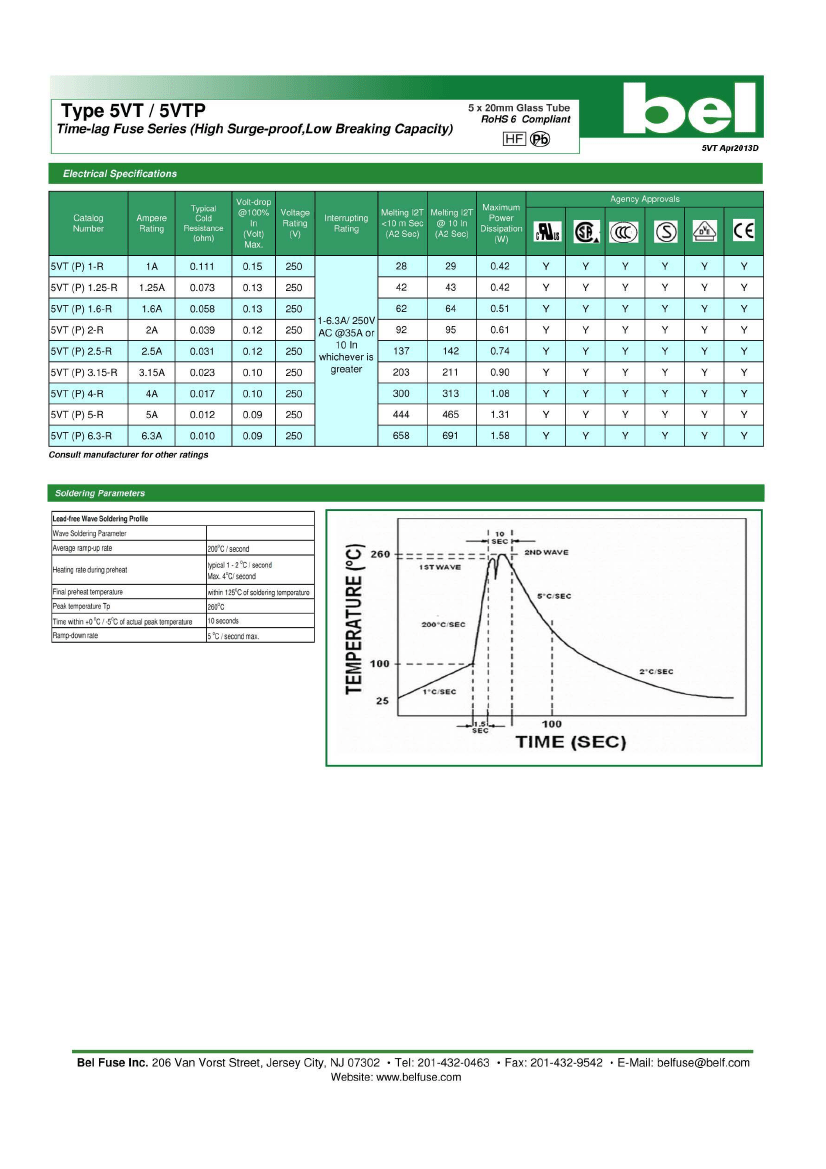

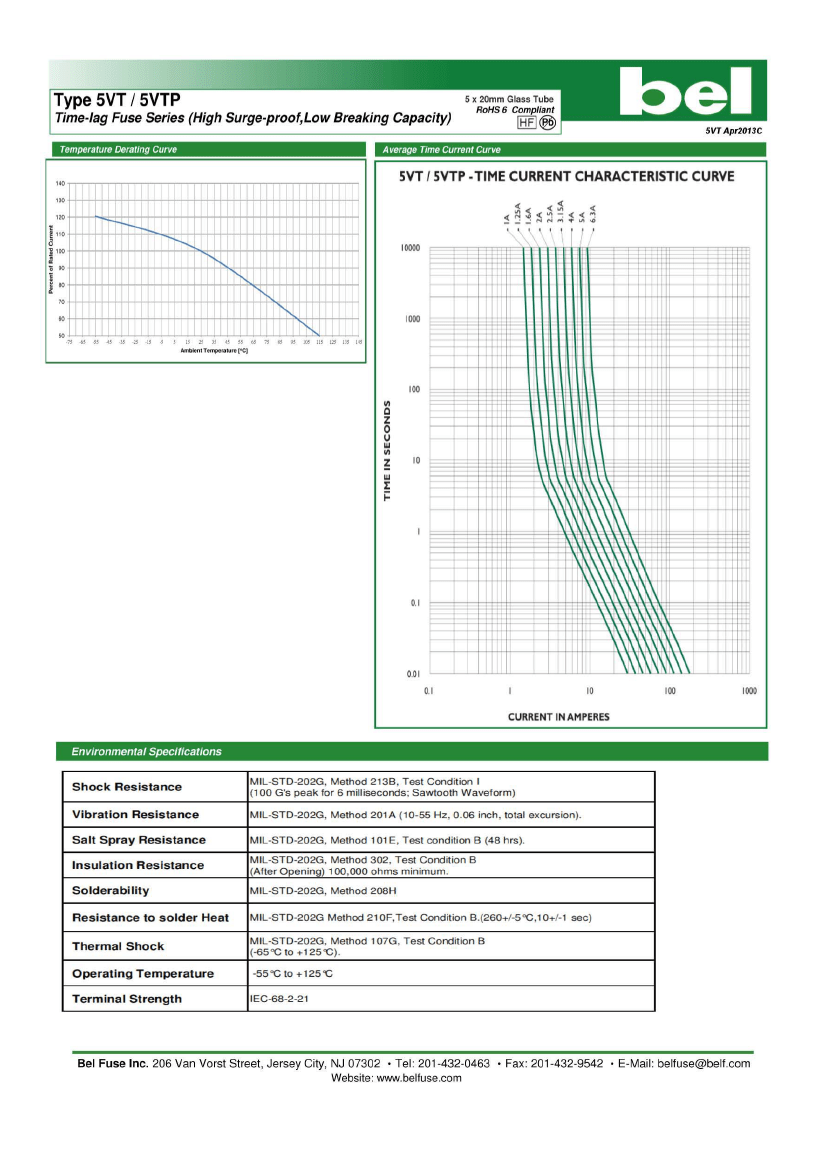

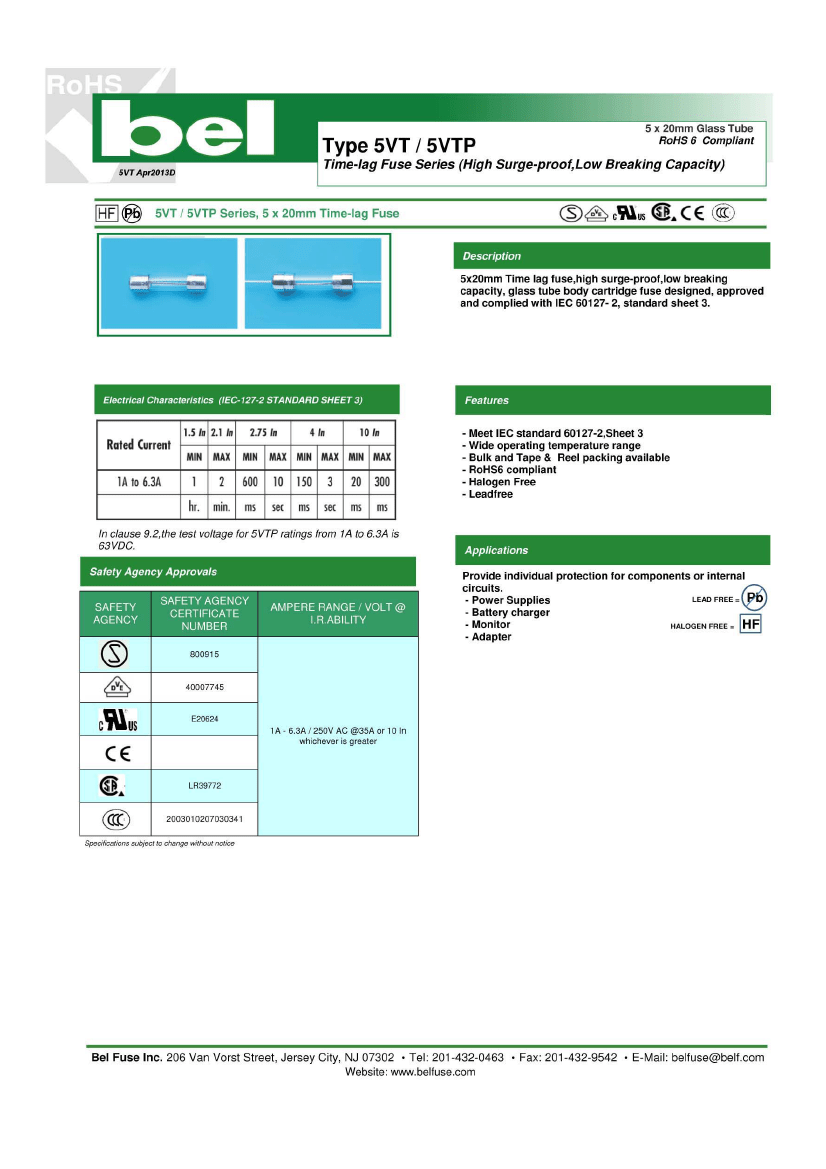

5VTP1.25-R: DescriptionElectric Fuse, Time Lag Blow, 1.25A, 250VAC, 35A (IR), Through Hole, 5x20mm, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size1MB，4 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

5VTP1.25-R Overview

Electric Fuse, Time Lag Blow, 1.25A, 250VAC, 35A (IR), Through Hole, 5x20mm, ROHS COMPLIANT

5VTP1.25-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Fusing characteristics	TIME LAG
body height	21 mm
Body length or diameter	5.5 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
JESD-609 code	e3
Joule integral nominal	42 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	5.5mm x 21mm
Rated breaking capacity	35 A
Rated current	1.25 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; SEMKO; UL; VDE
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

5VTP1.25-R Related Products

	5VTP1.25-R	5VTP6.3-R	5VTP4-R	5VTP2-R	5VT1
Description	Electric Fuse, Time Lag Blow, 1.25A, 250VAC, 35A (IR), Through Hole, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 6.3A, 250VAC, 35A (IR), Through Hole, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 4A, 250VAC, 35A (IR), Through Hole, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 2A, 250VAC, 35A (IR), Through Hole, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 1A, 250VAC, 35A (IR), Inline/holder,
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG
body height	21 mm	21 mm	21 mm	21 mm	20 mm
Body length or diameter	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.1 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	42 J	658 J	300 J	92 J	29 J
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	INLINE/HOLDER
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BULK	BULK	BULK	BULK	BULK
physical size	5.5mm x 21mm	5.5mm x 21mm	5.5mm x 21mm	5.5mm x 21mm	5.1mm x 20mm
Rated breaking capacity	35 A	35 A	35 A	35 A	35 A
Rated current	1.25 A	6.3 A	4 A	2 A	1 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V
Guideline	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; IEC; SEMKO; UL; VDE
surface mount	NO	NO	NO	NO	NO
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	END CAP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Fuse size	5x20mm	5x20mm	5x20mm	5x20mm	-
JESD-609 code	e3	e3	e3	e3	-
Rated voltage	250 V	250 V	250 V	250 V	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-
Base Number Matches	1	1	1	1	-
