Bluetooth HCI Data Module
®
BTM420/421
Innovative
Technology
for a
Connected
World

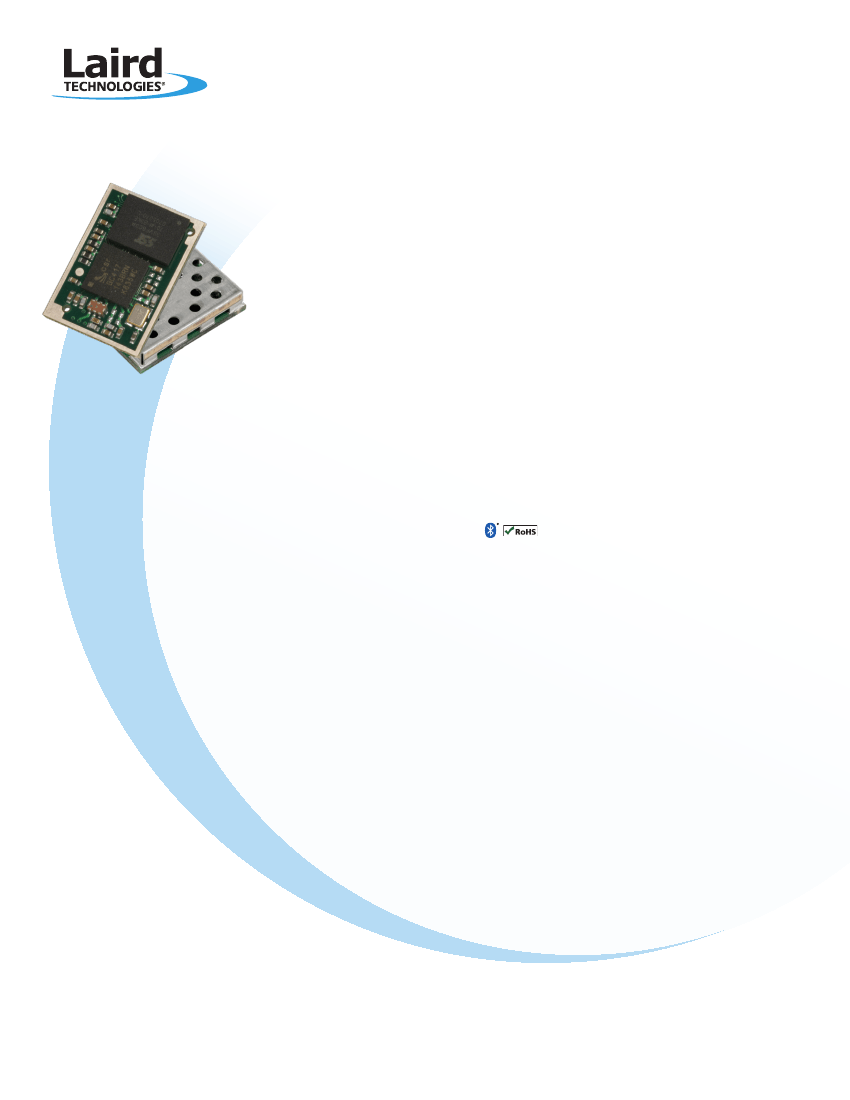

The BTM420 and BTM421 Bluetooth
®
modules are designed to meet the needs of
developers adding robust, short range Bluetooth data connectivity to their products
and using embedded Bluetooth stacks within these products. They are based on the
market-leading Cambridge Silicon Radio BC04 chipset, providing exceptionally low power
consumption with outstanding range. Supporting the latest Bluetooth Version 2.1
Specification with EDR (Enhanced Data Rate), HCI Data Modules increase data throughput
up to 2.1 Mbps. BT version 2.1 provides the advantage of Secure Simple Pairing that
improves security and enhances ease of use for end customers.
With a footprint as small as 12.5mm x 18.0mm and best-of-class low-power operation,
these modules are ideal for applications where designers need both performance and
minimum size. For maximum flexibility in systems integration, the modules are designed to
support separate power supplies for I/O and the USB interface.
These modules present an HCI interface and are fully qualified as Bluetooth Controller
Subsystem products. This also allows designers to integrate their existing pre-approved
Bluetooth Host and Profile subsystem stacks to gain a Bluetooth END product approval for
their products.
A low-cost developer’s kit is available for prototyping, ensuring a fast route to market.
FEATURES AND BENEFITS
• Bluetooth v2.1+EDR
• Adaptive frequency hopping to cope with interference
from other wireless devices
• Secure Simple Pairing support
• External or internal antenna options
• HCI interface
• Bluetooth controller subsystem product qualified
• Compact size
• Class 2 output – 4dBm
• Low power operation
• USB interface
• PCM for external codec
• Wi-Fi co-existence hardware support
APPLICATION AREAS
• Embedded devices
• Phone accessories
• Security devices
• Medical devices
• Aftermarket automotive
applications
• Bluetooth advertising
• ePOS
global
solutions:
local
support
USA: +1.800.492.2320
Europe: +44.1628.858.940
Asia: +852.2268.6567
wirelessinfo@lairdtech.com
www.lairdtech.com/wireless
TM
Bluetooth HCI Data Module
®
BTM420/421
Innovative
Technology
for a
Connected
World
CATEGORIES
Wireless Specification
FEATURE
Bluetooth
®
Frequency
Max Transmit Power
Receive Sensitivity
Range
Data Rates
IMPLEMENTATION
Version 2.1+EDR
2.402 – 2.480 GHz
Class 2
+ 4dBm (at antenna pad – BTM420)
+4dBm (from integrated antenna – BTM421)
Better than -84dBm
Up to 30 meters
Up to 2.1Mbps (over the air)
Qualified to USB v 1.1. Compliant
with USB 2.0 Data signalling requirements.
Less than 40 mA during SCO transmission
3.0V to +3.3V
3.1V to 3.6V
1.7V to +3.3V (independent of Vcc)
2 wire and 3 wire schemes supported
Connection via SMT pad – BTM420
Multilayer ceramic – BTM421
12.5mm x 18.0mm x 3.4mm (external antenna – BTM420)
12.5mm x 22.0mm x 3.4mm (integrated antenna – BTM421)
Host Interface
Power Consumption
Supply Voltage
USB
Current Consumption
Supply
USB
I/O
Coexistence /
Compatibility
Connections
Physical
802.11 (Wi-Fi)
External Antenna
Internal Antenna
Dimensions
Environmental
Miscellaneous
Development Tools
Approvals
Operating Temperature
Storage Temperature
Lead free
Warranty
Development Kit
Bluetooth
®
-30°C to +70°C
-40°C to +85°C
Lead-free and RoHS compliant
1 Year
Development board
Controller Subsystem Product
BTM420 - Limited Modular Approval
BTM421 - Full Modular Approval
FCC/IC & CE
ORDERING INFORMATION
BTM420
BTM421
DVK- BTM420
DVK- BTM421
Bluetooth HCI Data Module (external antenna)
Bluetooth HCI Data Module (with integrated antenna)
Development Kit (external antenna)
Development Kit (with integrated antenna)
