2552-3071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2552-3071

2552-3071: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2552-3071 Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

2552-3071 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.134 inch
subject depth	0.319 inch
body length	0.72 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	2552
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	7
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

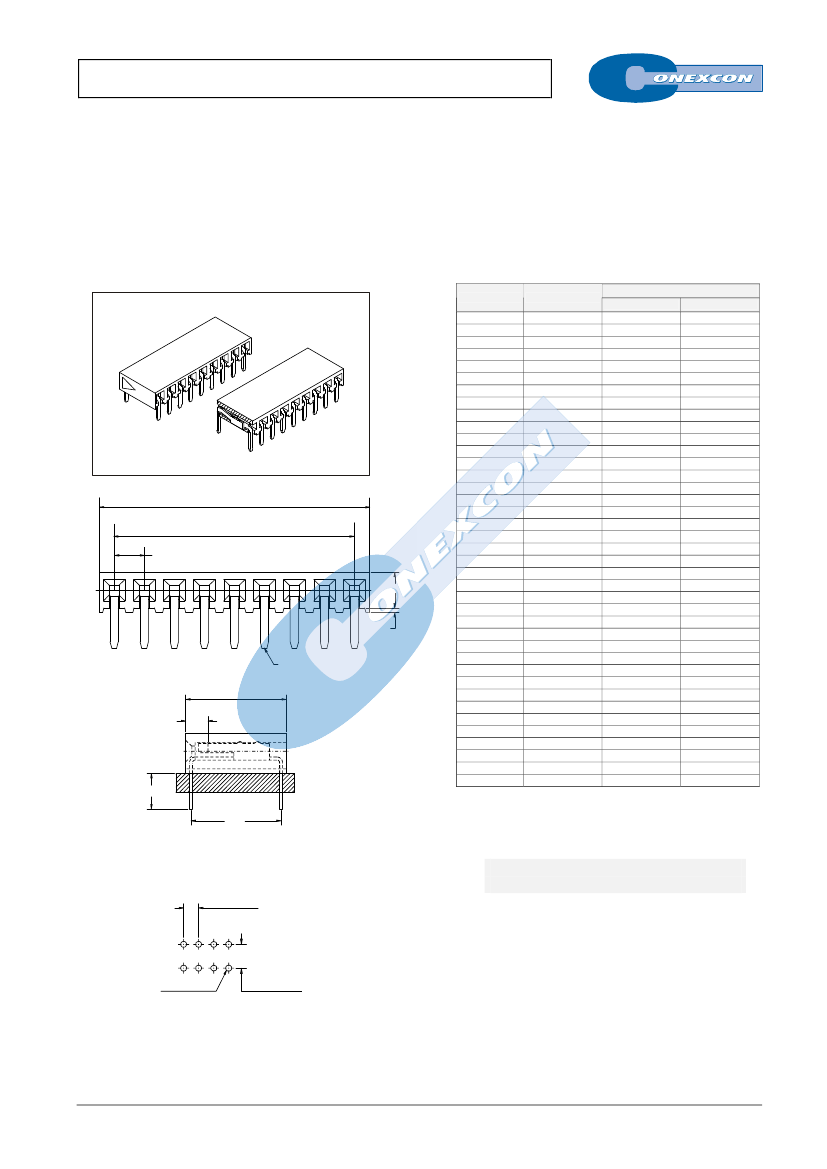

SIDE ENTRY SINGLE ROW PCB SOCKET

2552 SERIES.

2.54mm(0.100”). For PCB Solder

Features



Available in 2 through 40 circuits

Insulator Material: P.B.T. UL 94V-0

Mates with 2.54mm pitch and 0.64mm pin headers

Low profile and high density PCB socket



Height: 3.40mm

Designed for Right-Angle P.C. Board mounting

High quality dual beam phosphor bronze contacts

Pin Stop to prevent shorting circuits between rows

Ordering and Dimensional Information

Dimensional Information

Circuit Size

Part Number

2552-T021

2552-T031

2552-T041

2552-T051

2552-T061

2552-T071

2552-T081

2552-T091

2552-T101

2552-T111

2552-T121

2552-T131

2552-T141

2552-T151

2552-T161

2552-T171

2552-T181

2552-T191

2552-T201

2552-T211

2552-T221

2552-T231

2552-T241

2552-T251

2552-T261

2552-T271

2552-T281

2552-T291

2552-T301

2552-T311

2552-T321

2552-T331

2552-T341

2552-T351

2552-T361

2552-T371

2552-T381

2552-T391

2552-T401

Dimensions

2.54(0.100)

5.08(0.200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

5.08(0.200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

101,60(4,000)

2.54

3.00

0.40

PIN 0.7X0.25

8.10

1.90

3.00

7.87

T = Contact Plating

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

1.02±0.05

.040±.002

7.87±0.05

.310±.002

FULL LINE CATALOGUE

E-XX

Recommended Resources

Lithium battery charging integrated circuit

Moving magnet phono equalization circuit and microphone input circuit

High Stability 1A Voltage Regulator Circuit

Belt conveyor stall protection circuit

C523 double column vertical lathe main circuit

Wind speed-frequency conversion circuit
