CA29-1

Description
cascadable amplifier 10 to 1500 mhz
CategoryWireless rf/communication    Radio frequency and microwave
File Size1MB,2 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

CA29-1 Online Shopping

Suppliers Part Number Price MOQ In stock
CA29-1 - - View Buy Now

CA29-1 Overview

cascadable amplifier 10 to 1500 mhz

CA29-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMACOM
Reach Compliance Codecompliant
Other featuresSMA, HIGH RELIABILITY
Characteristic impedance50 Ω
structureCOAXIAL
Gain8.5 dB
Maximum input power (CW)15.5 dBm
Maximum operating frequency1500 MHz
Minimum operating frequency10 MHz
Maximum operating temperature50 °C
Minimum operating temperature
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio1.9

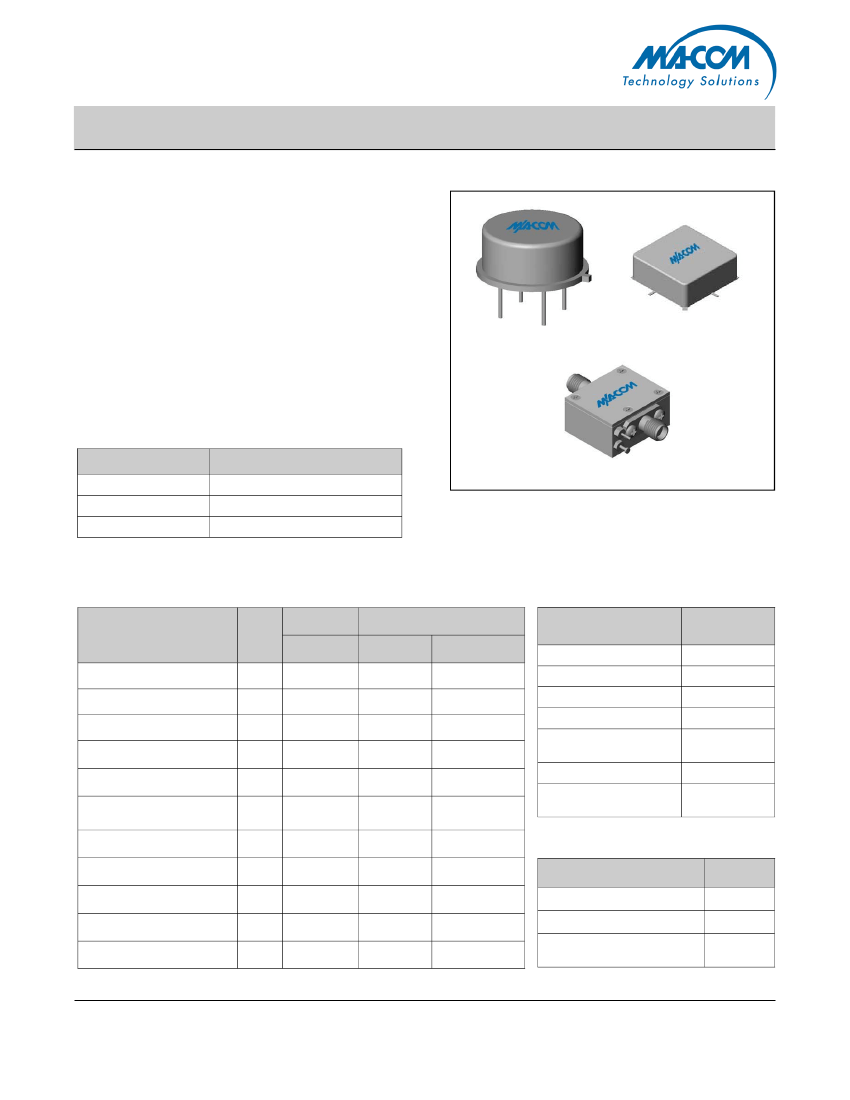

A29-1 / SMA29-1
Cascadable Amplifier
10 to 1500 MHz
Features
HIGH OUTPUT POWER: +22 dBm (TYP.)
HIGH THIRD ORDER I.P.: +32 dBm (TYP.)
Rev. V3
Product Image
Description
The A29-1 RF amplifier is a discrete thin film hybrid design, which
incorporates the use of thin film manufacturing processes for
accurate performance and high reliability.
This single stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband frequency
range. An active DC biasing network is used for temperature-
stable performance, in addition to an RF Choke, used for power
supply decoupling.
Both TO-8 and Surface Mount packages are hermetically sealed,
and MIL-STD-883 environmental screening is available
.
Ordering Information
Part Number
A29-1
SMA29-1
CA29-1
Package
TO-8
Surface Mount
SMA Connectorized **
** The connectorized version is not RoHs compliant.
Electrical Specifications: Z
0
= 50Ω, V
CC
= +15 V
DC
Typical
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Guaranteed
0º to 50ºC
10-1500
8.5
±0.5
Units
25ºC
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
10-1600
9.0
±0.2
14
5.5
22.0
+32
+49
+57
1.6:1 / 1.6:1
90
1.9:1 / 1.9:1
94
2.0:1 / 2.0:1
99
6.5
20.0
7.0
19.0
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+17 V
15.5 dBm
100 mW
0.5 W
+125ºC
-54º to +85ºC*
10-1500
7.5
±1.0
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance
θ
jc
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
100ºC/W
0.966 W
+96ºC
* Over temperature performance limits for part number CA29-1, guaranteed from 0
o
C to +50
o
C only.

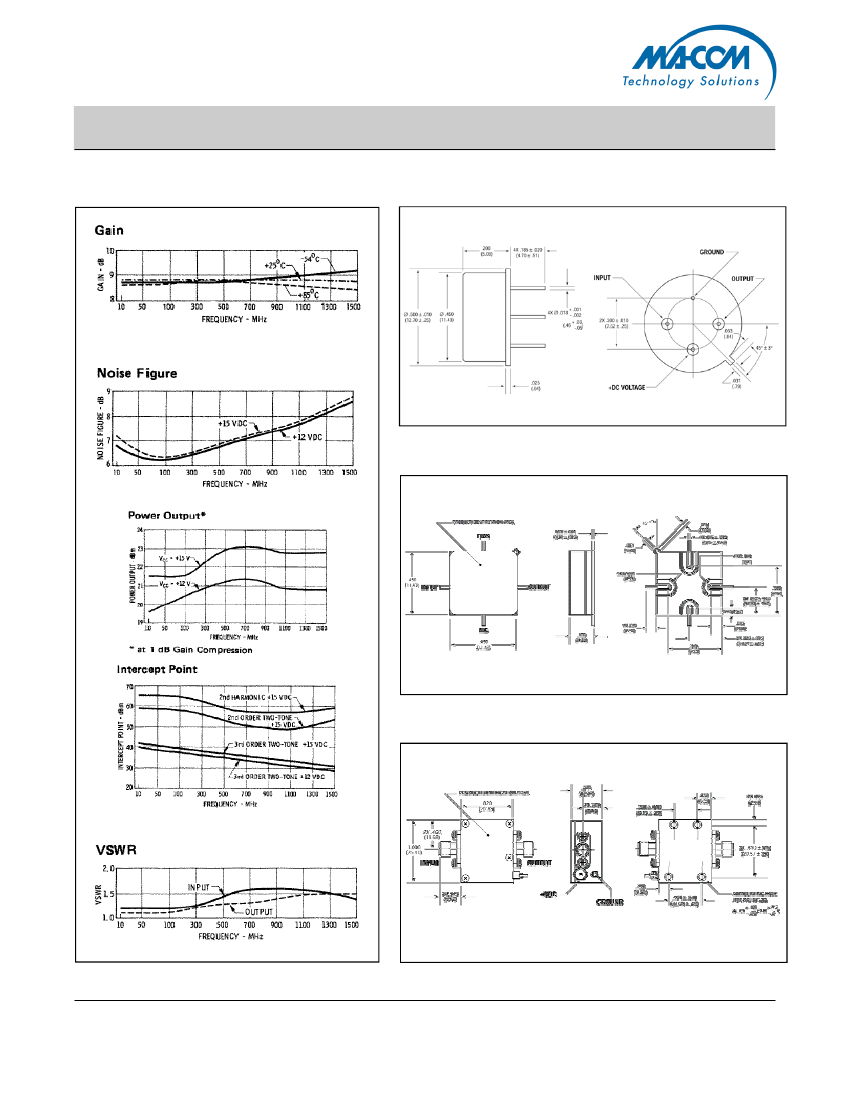

1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
India
Tel: +91.80.4155721
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
