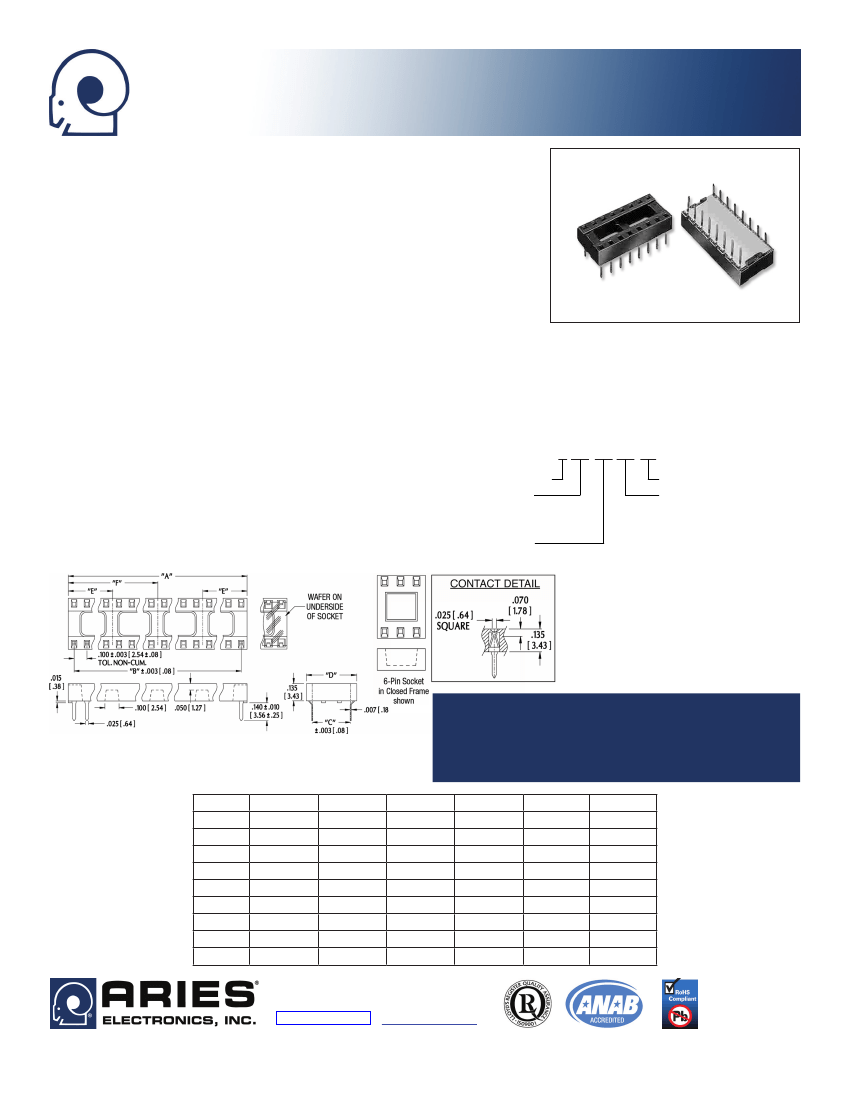

Series C84/93 LO-PRO
®
file
Dual Beam Edge-Grip Socket w/Solder Tails
FEATURES
• Anti-wicking design on LO-PRO
®
file sockets eliminates flux or solder contamination
• Dual beam, edge-grip contacts provide high retention and positive contact
• End-to-end and side-to-side stackable
GENERAL SPECIFICATIONS
• BODY: black UL 94V-0 glass-filled Nylon 4/6
• DUAL BEAM CONTACT: Phosphor Bronze 521
• CONTACT PLATING: (overall 50μ [1.27μ] Ni per SAE AMS-QQN-290); Sn 200μ
[5.08μ] min. matte Sn per ASTM B545-97; Sn/Pb 100-150μ [2.54-3.81μ] min.
90/10 Sn/Pb per MIL-P-81728; Au 10μ [0.25μ] min. Au per MIL-G-45204 in
contact area and 100-150μ [2.54-3.81μ] min. 90/10 Sn/Pb per MIL-P-81728 on
CUSTOMIZATION:
In addition to the standard products shown
Solder Tail
on this page, Aries specializes in custom design and production.
• WAFER: Nomex, 0.005 [0.13] thick
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• CONTACT CURRENT RATING: 1 amp
right to change product general specifications without notice.
• CONTACT RESISTANCE: 20 mΩ initial
• INSULATION RESISTANCE: 100 mΩ @ 500VDC per MIL-STD-1344, Method 3003.1
• DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC
ORDERING INFORMATION
• OPERATING TEMPERATURE: -67°F [-55°C] to [105°C] 221°F for
C XX-XX XX-TL
Sn: -67°F [-55°C] to 257°F [125°C] for Au
• ACCEPTS LEADS: up to 0.011 x 0.018 ±0.003 [0.28 x 0.46
Optional Plating Sn/Pb
Socket Series
±0.08]
or
0.021 [0.53] dia., 0.070-0.135 [1.78-3.43] long
02 = Nomex Wafer
(std)
Pin Plating
93 = Au
MOUNTING CONSIDERATIONS
84 = Sn
• SUGGESTED PCB HOLE SIZE: 0.036 ±0.002 [0.91 ±0.05] dia.
No. of Pins
(see Table)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
No. of Pins
6
8
14
16
18
20
24
28
40
Dim “A”
0.290 [7.37]
0.390 [9.91]
0.690 [17.53]
0.790 [20.07]
0.890 [22.61]
0.990 [25.15]
1.190 [30.23]
1.390 [35.31]
1.990 [50.55]
Dim. “B”
0.200 [5.08]
0.300 [7.62]
0.600 [15.24]
0.700 [17.78]
0.800 [20.32]
0.900 [22.86]
1.100 [27.94]
1.300 [33.02]
1.900 [48.26]
Centers “C”
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
Dim. “D”
0.395 [10.03]
0.395 [10.03]
0.395 [10.03]
0.395 [10.03]
0.395 [10.03]
0.395 [10.03]
Dim. “E”
—
—
—
—
—
—
Dim. “F”
—
—
0.350 [8.89]
0.400 [10.16]
0.450 [11.43]
0.500 [12.70]
—
—
0.695 [17.65] 0.400 [10.16]
0.695 [17.65] 0.500 [12.70]
0.695 [17.65] 0.500 [12.70] 1.000 [25.40]
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
12001
Rev. AA
