C&K CD Series
8mm DIP Coded Rotary Switches
Features/Benefits
•
Process sealed – withstands
Typical Applications
•
Address switching applications
•
Data storage devices
•
Computer and peripherals
•
Instrumentation
I
DIP
soldering and cleaning
•
Thru-hole and surface mount models
•
Compact size saves space – 36%
smaller than traditional 10mm DIP
•
Crisp, positive detent ensures actua-
tion
•
RoHS compliant - option available
Specifications
CONTACT RATING: 0.4 VA max. @ 20 V AC or V DC max.
MECHANICAL AND ELECTRICAL LIFE:
CD10 & CD16: 20,000 actuations.
CD08: 12,000 actuations.
CONTACT RESISTANCE: 50 milliohms max. initial.
INSULATION RESISTANCE: 100 megohms min.
@ 250 V AC min.
DIELECTRIC STRENGTH: 250 V RMS min. @ sea level.
OPERATING TEMPERATURE: -25°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
SOLDERABILITY: Per MIL-STD-202F method 208D or EIA RS-
186E, method 9 (1 hour steam aging).
PACKAGING: Switches supplied in rigid tubes in full-tube quan-
tities only: this may affect order quantity. Surface mount
switches available in tape & reel packaging per EIA 481A,
800 per reel, “M0” actuator only.
Materials
COVER & BASE: Glass filled nylon, flame retardant (UL 94V-0).
RoHS, Version, PPS (UL94V-0).
ACTUATOR: LCP (UL 94V-0), internal o-ring seal standard with
all actuators.
KNOB: Glass filled nylon, flame retardant (UL 94V-0).
MOVABLE CONTACTS: Copper alloy with gold plate over
nickel plate.
STATIONARY CONTACTS: Copper alloy with gold plate over
nickel plate.
TERMINALS: Copper alloy with tin-lead alloy over nickel plate.
RoHS, Version copper alloy with gold plate over nickel plate.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

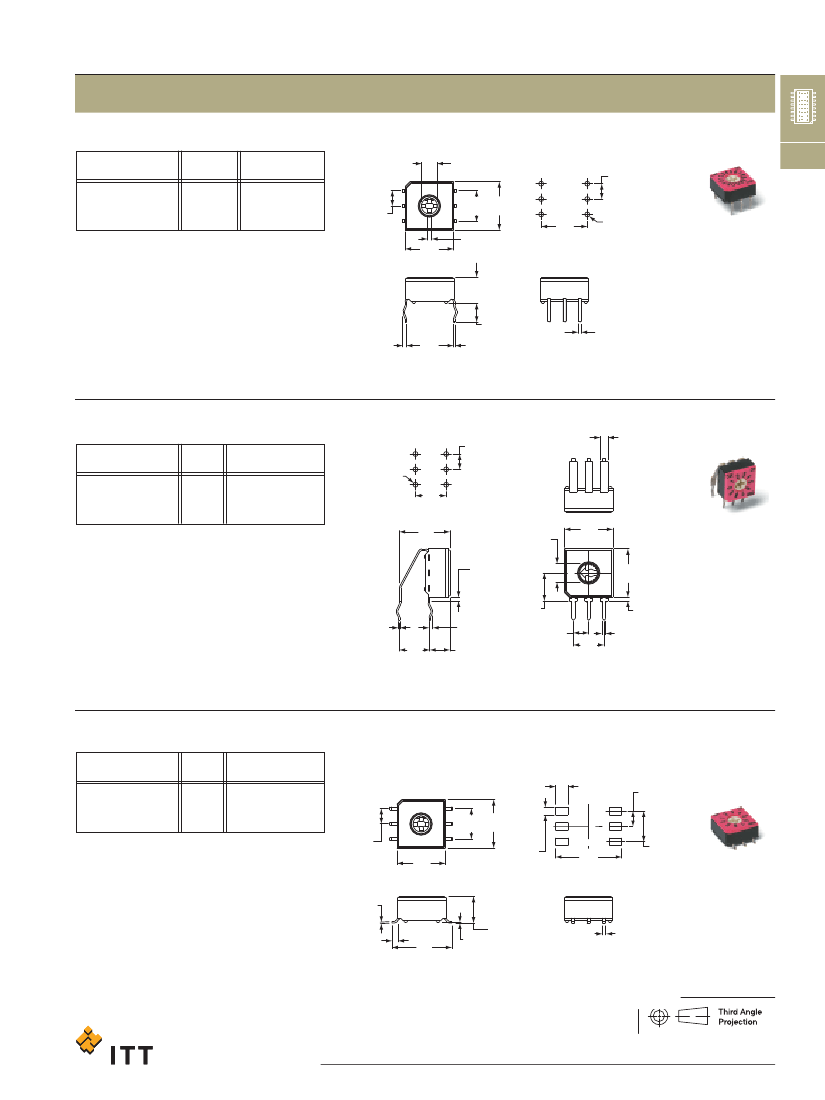

How To Order
Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
C D
Switch Function
CD08R
8 position, BCD
Actuator
CD08C
8 position, BCD complement
M0
Flush, screwdriver slot
CD10R
10 position, BCD
L1
Extended, screwdriver slot
CD10C
10 position, BCD complement
K1
Knob
CD16R
16 position, Hexadecimal
Terminations
CD16C
16 position, Hexadecimal complement
A
Right Angle, PC Thru-hole
C
PC Thru-hole
S
Surface Mount
Contact/Terminal Material
K
Gold/Tin-Lead
B
Gold/Gold
Packaging
NONE
Tube
R
Tape & Reel (MO actuator only)
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-28
www.ittcannon.com
C&K CD Series
8mm DIP Coded Rotary Switches

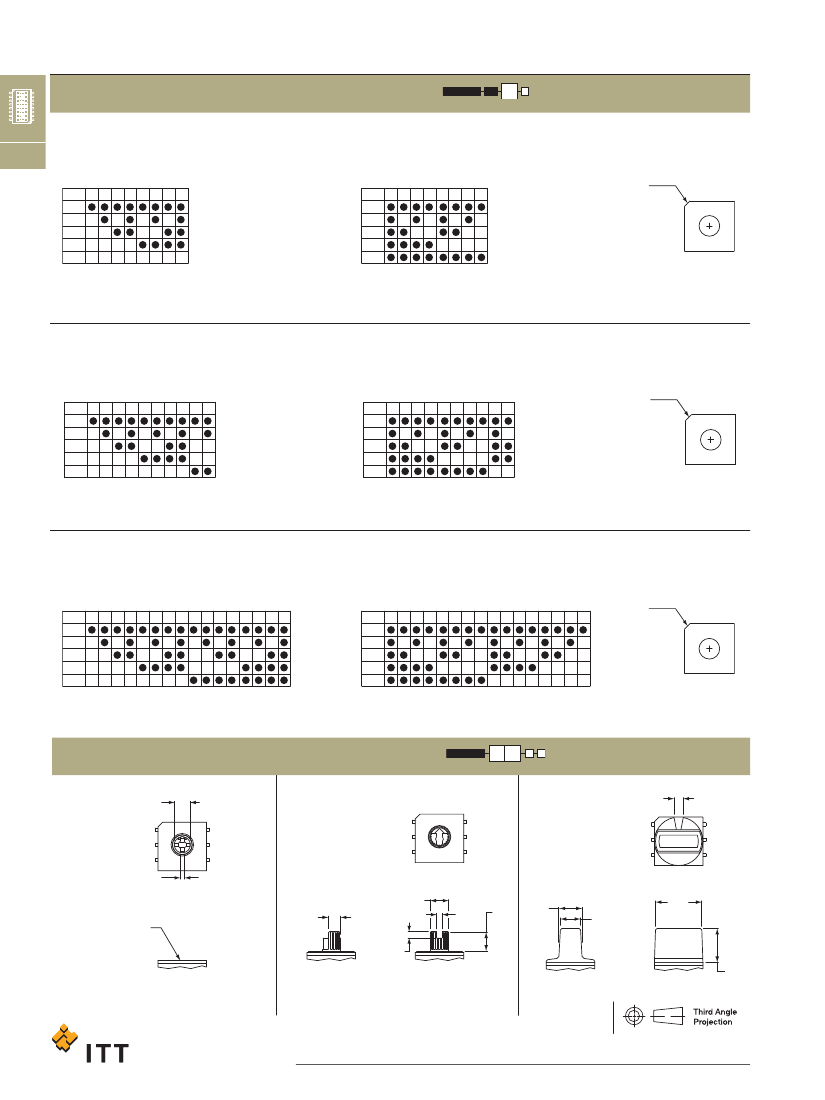

SWITCH FUNCTION
CD08R
8 POSITION, BCD
ACTUATOR COLOR: WHITE
CD08C
8 POSITION, BCD COMPLEMENT
ACTUATOR COLOR: BLACK
I
DIP
POS. 0 1 2 3 4 5 6 7
C
1
2
4
8
POS. 0 1 2 3 4 5 6 7
C
6
7
1
2
4
8
5
XXXX
PIN 1
INDICATOR
0
4
1
C&K
2
3
CD
CD10R
10 POSITION, BCD
ACTUATOR COLOR: RED
CD10C
10 POSITION, BCD COMPLEMENT
ACTUATOR COLOR: BLACK
POS. 0 1 2 3 4 5 6 7 8 9
C
1
2
4
8
POS. 0 1 2 3 4 5 6 7 8 9
C
1
2
4
8
PIN 1
INDICATOR
C&K
XXXX
CD16R
16 POSITION, HEXADECIMAL
ACTUATOR COLOR: ORANGE
CD16C
16 POSITION, HEXADECIMAL COMPLEMENT
ACTUATOR COLOR: WHITE
POS. 0 1 2 3 4 5 6 7 8 9 A B C D E F
C
1
2
4
8
POS. 0 1 2 3 4 5 6 7 8 9 A B C D E F
C
1
2
4
8
PIN 1
INDICATOR
C
D
AB E
XXXX

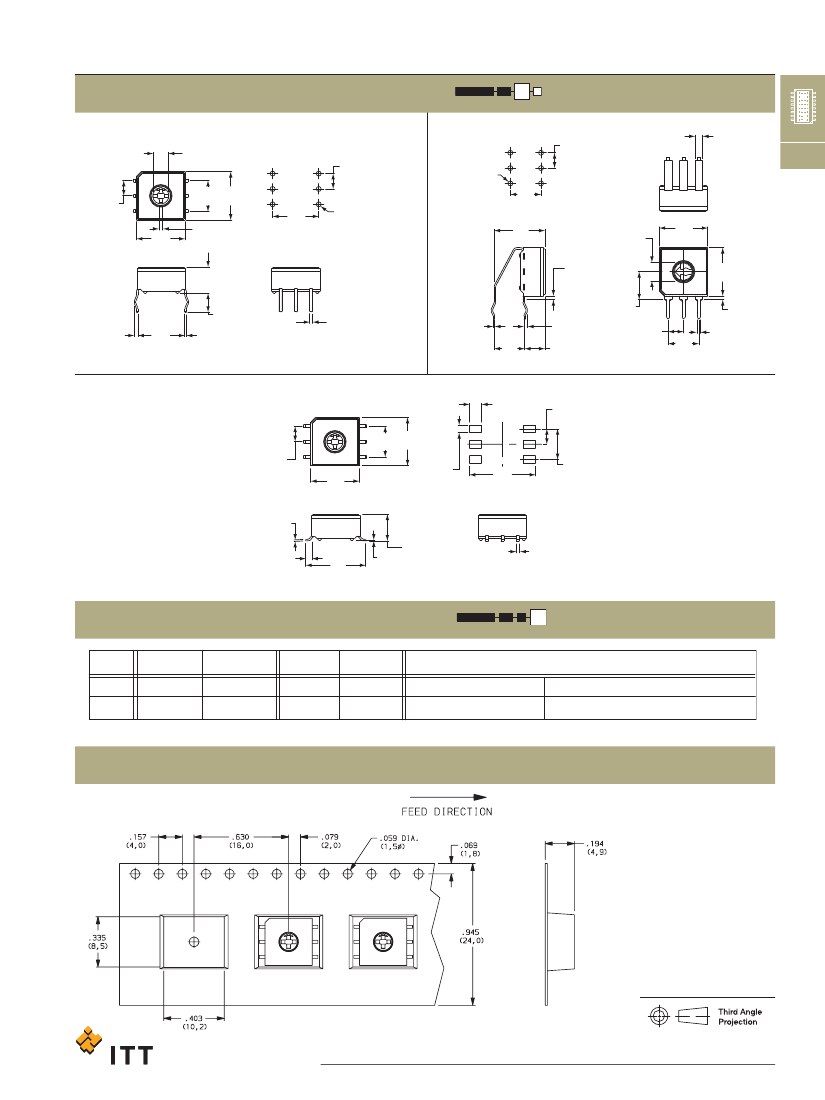

ACTUATOR
M0
(STD.) FLUSH WITH SCREWDRIVER SLOT
.100
(2,54)
L1
EXTENDED WITH SCREWDRIVER SLOT
K1
KNOB
.060
(1,52)
0
78
.025 TYP.
(0,64)
.080
(2,03)
.120 DIA.
(3,05)
.036
(0,91)
.126
(3,20)
.151
(3,84)
.130
(3,30)
.300
(7,62)
DIA.
FLUSH ACTUATOR
.040
(1,02)
NOTE:
Designed for #0 Phillips screwdriver.
I-30
4
5
6
78
9
0
1
4
5
6
9
0
1
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
www.ittcannon.com
4
5
6
78
9
0
1
23
CD
C&K
CD
F
0
1
2
3
4
5
6
7
8
9
2 3
2 3
.220
(5,59)
