Datasheet
μPC1251, μPC358
Single Power Supply Dual Operational Amplifiers
DESCRIPTION
R03DS0144EJ0100
Rev.1.00
2019.1.17
μPC1251, μ PC358 are dual operational amplifiers designed to operate on a single power supply. The features
include low-voltage operation, a common-mode input voltage that range from V
−
(GND) level, an output from
a V
−
(GND) level that is determined by the output stage of class C push-pull circuit and a 50 μA(TYP.) constant
current, and a low current consumption.
In addition to that, this amplifier can also operate in both positive and negative power supply and can be used
extensively in various amplifier circuits.
The μPC1251 is suited for wide operating ambient temperature use due to its temperature expansion type,
while μPC358 is for general purposes usage.
A DC parameter selection that is compatible to operational amplifiers is also available.
μPC451, μ PC324 which are quad types with the same circuit configuration are also available under this series
of operational amplifiers.
FEATURES
Input Offset Voltage
±2 mV (TYP.)
Input Offset Current
±5 nA (TYP.)
Large Signal Voltage Gain 100000 (TYP.)
Internal Frequency Compensation
Output Short-Circuit Protection
Product Lineup
Package
Subject Part Number
Standard SOP
μPC1251G2,
μPC358G2
Unit : mm
TSSOP
μPC1251GR-9LG,
μPC358GR-9LG
Unit : mm
MSOP
μPC1251MP-KAA
Unit : mm
Outline Comparison
0.65
6.5
4.4
6.4
2.8
4.0
2.9
5.2
3.15
(Mounting Area Ratio)
(100 %)
(60 %)
(34 %)
The information in this document is subject to change without notice Before using this
document, please confirm that this is the latest version. Not all products and/or types are
available in every country. Please check with Renesas Electronics sales representative for
availability and additional information.
R03DS0144EJ0100 Rev.1.00
2019.1.17
Page 1 of 11
μPC1251, μPC358
ORDERING INFORMATION
Part Number
μPC1251G2-A
μPC1251G2(5)-A
μPC358G2-A
μPC358G2(5)-A
μPC1251GR-9LG-A
μPC1251GR(5)-9LG-A
μPC1251MP-KAA-A
μPC1251MP(5)-KAA-A
μPC358GR-9LG-A
μPC358GR(5)-9LG-A
Selected Grade
Standard
DC parameter selection
Standard
DC parameter selection
Standard
DC parameter selection
Standard
DC parameter selection
Standard
DC parameter selection
Package
8-pin plastic SOP ( 5.72 mm ( 225 ))
8-pin plastic SOP ( 5.72 mm ( 225 ))
8-pin plastic SOP ( 5.72 mm ( 225 ))
8-pin plastic SOP ( 5.72 mm ( 225 ))
8-pin plastic TSSOP ( 5.72 mm ( 225 ))
8-pin plastic TSSOP ( 5.72 mm ( 225 ))
8-pin plastic MSOP ( 2.8
×
2.9 )
8-pin plastic MSOP ( 2.8
×
2.9 )
8-pin plastic TSSOP ( 5.72 mm ( 225 ))
8-pin plastic TSSOP ( 5.72 mm ( 225 ))
EQUIVALENT CIRCUIT (1/2 Circuit)
V
+
100 μA
6 μA
6 μA
Q
5
Q
2
I
I
Q
1
Q
3
Q
4
C
C
Q
7
R
SC
OUT
Q
6
I
N
Q
10
Q
8
Q
9
Q
11
Q
12
50 μA
Q
13
V
-
PIN CONFIGURATION (Marking side)
OUT
1
I
I1
I
N1
V
-
1
2
3
4
1
-
+
2
+
-
6
5
I
I2
I
N2
8
7
V
+
OUT
2
R03DS0144EJ0100 Rev.1.00
2019.1.17
Page 2 of 11
μPC1251, μPC358
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25
C)
Parameter
Voltage between V+
and V−
Voltage
Input Voltage
Note 2
Output applied Voltage
Note3
Note1
Symbol
μPC1251G2,
μPC1251G2(5)
μPC358G2,
μPC358G2(5)
μPC1251GR,
μPC1251GR(5)
-0.3 ~ +32
±32
V
-
-0.3 ~ V
-
+32
V
-
-0.3 ~ V
+
+0.3
440
Indefinite
μPC1251MP,
μPC1251MP(5)
μPC358GR,
μPC358GR(5)
Unit
V
+
- V
-
V
ID
V
I
V
o
P
T
t
S
T
A
T
stg
-40 ~ +85
-20 ~ +80
V
V
V
V
mW
s
-40 ~ +85
-55 ~ +125
C
C
Differential Input
Total Power Dissipation
Note4
Output Short Circuit
Duration
Note5
Operating Ambient
Temperature
Storage Temperature
-40 ~ +125
-55 ~ +150
-55 ~ +125
【Note】
1.
Note that reverse connections of the power supply may damage the ICs.
2.
The input voltage is allowed to input without damage or destruction independent of the magnitude of V+.
Either input signal is not allowed to go negative by more than 0.3 V. In addition, the input voltage that
operates normally as an operational amplifier is within the Common Mode Input Voltage range of an
electrical characteristic.
3.
A range where input voltage can be applied to an output pin externally with no deterioration or damage to
the feature (characteristic). The input voltage can be applied regardless of the electric supply voltage. This
specification which includes the transition state such as electric power ON/OFF must be kept.
4.
This is the value when the glass epoxy substrate (size: 100 mm x 100 mm, thickness: 1 mm, 15% of the
substrate area where only one side is copper foiled is filling wired) is mounted.
Note that restrictions will be made to the following conditions for each product, and the derating ratio
depending on the operating ambient temperature.
μPC1251G2 : Derate at -4.4 mW/C when T
A
＞
25
C
(Junction − ambient thermal resistance R
th(J-A)
= 227°C/W)
μPC358G2 : Derate at -4.4 mW/C when T
A
＞
25
C
(Junction − ambient thermal resistance R
th(J-A)
= 227°C/W)
μPC1251GR-9LG : Derate at -5.5 mW/C when T
A
＞
69
C
(Junction − ambient thermal resistance R
th(J-A)
= 183°C/W)
μPC1251MP-KAA : Derate at -4.8 mW/C when T
A
＞
58
C
(Junction − ambient thermal resistance R
th(J-A)
= 208°C/W)
μPC358GR-9LG : Derate at -5.5 mW/C when T
A
＞
44
C
(Junction − ambient thermal resistance R
th(J-A)
= 183°C/W)
5.
Short circuits from the output to V
+
can cause destruction. Pay careful attention to the total power dissipation
by not exceeding the absolute maximum ratings,
Note 4.
RECOMMENDED OPERATING CONDITIONS
Parameter
Power Supply Voltage (Split)
Power Supply Voltage (V
-
= GND)
R03DS0144EJ0100 Rev.1.00
2019.1.17
Symbol
V
±
V
+
MIN.
±1.5
+3
TYP.
MAX.
±15
+30
Unit
V
V
Page 3 of 11
μPC1251, μPC358
ELECTRICAL CHARACTERISTICS
μPC1251, μPC358 (T
A
= 25
C,
V
+
= +5 V, V
-
= GND)
Parameter
Input Offset Voltage
Input Offset Current
Input Bias Current
Note 6
Large Signal Voltage Gain
Circuit Current
Note 7
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Output Voltage Swing
Common Mode Input Voltage Range
Output Source Current
Output Sink Current
Channel Separation
Symbol
V
IO
I
IO
I
B
A
V
I
CC
CMR
SVR
V
O
V
ICM
I
O SOURCE
I
O SINK1
I
O SINK2
MIN.
TYP.
±2
±5
14
100000
0.7
70
100
MAX.
±7
±50
250
1.2
Unit
mV
nA
nA
R
L
≧
2 kΩ
mA
dB
dB
V
V
mA
mA
μA
dB
R
L
= ∞, I
O
= 0 A
Test Condition
R
S
= 0 Ω
25000
65
65
0
0
20
10
12
V
+
-1.5
V
+
-1.5
40
20
50
120
R
L
= 2 kΩ (Connected to
GND)
V
IN (+)
= +1 V, V
IN (-)
= 0 V
V
IN (-)
= +1 V, V
IN (+)
= 0 V
V
IN (-)
= +1 V, V
IN (+)
= 0 V,
V
O
= 200 mV
f = 1 ~ 20 kHz
μPC1251 (5), μPC358 (5) (T
A
= 25
C,
V
+
= +5 V, V
-
= GND)
Parameter
Input Offset Voltage
Input Offset Current
Input Bias Current
Note 6
Large Signal Voltage Gain
Circuit Current
Note7
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Output Voltage Swing
Common Mode Input Voltage Range
Output Source Current
Output Sink Current
Symbol
V
IO
I
IO
I
B
A
V
I
CC
CMR
SVR
V
O
V
ICM
I
O SOURCE
I
O SINK1
I
O SINK2
MIN.
TYP.
±2
±5
14
100000
0.7
70
100
MAX.
±3
±50
60
0.9
Unit
mV
nA
nA
R
L
≧
2 kΩ
mA
dB
dB
V
V
mA
mA
μA
dB
R
L
= ∞, I
O
= 0 A
Test Condition
R
S
= 0 Ω
50000
65
65
0
0
30
15
30
V
+
-1.5
V
+
-1.4
40
20
50
120
R
L
= 2 kΩ (Connected to
GND)
V
IN (+)
= +1 V, V
IN (-)
= 0 V
V
IN (-)
= +1 V, V
IN (+)
= 0 V
V
IN (-)
= +1 V, V
IN (+)
= 0 V,
V
O
= 200 mV
f = 1 ~ 20 kHz
70
Channel Separation
【Note】
6.
The absolute value of the input bias current is small, thus the direction of the current flowing from the inside
of the IC may be reversed due to variations in the product during high temperature.
7.
This is a current that flows in the internal circuit. This current will flow irrespective of the channel used.
R03DS0144EJ0100 Rev.1.00
2019.1.17
Page 4 of 11
μPC1251, μPC358

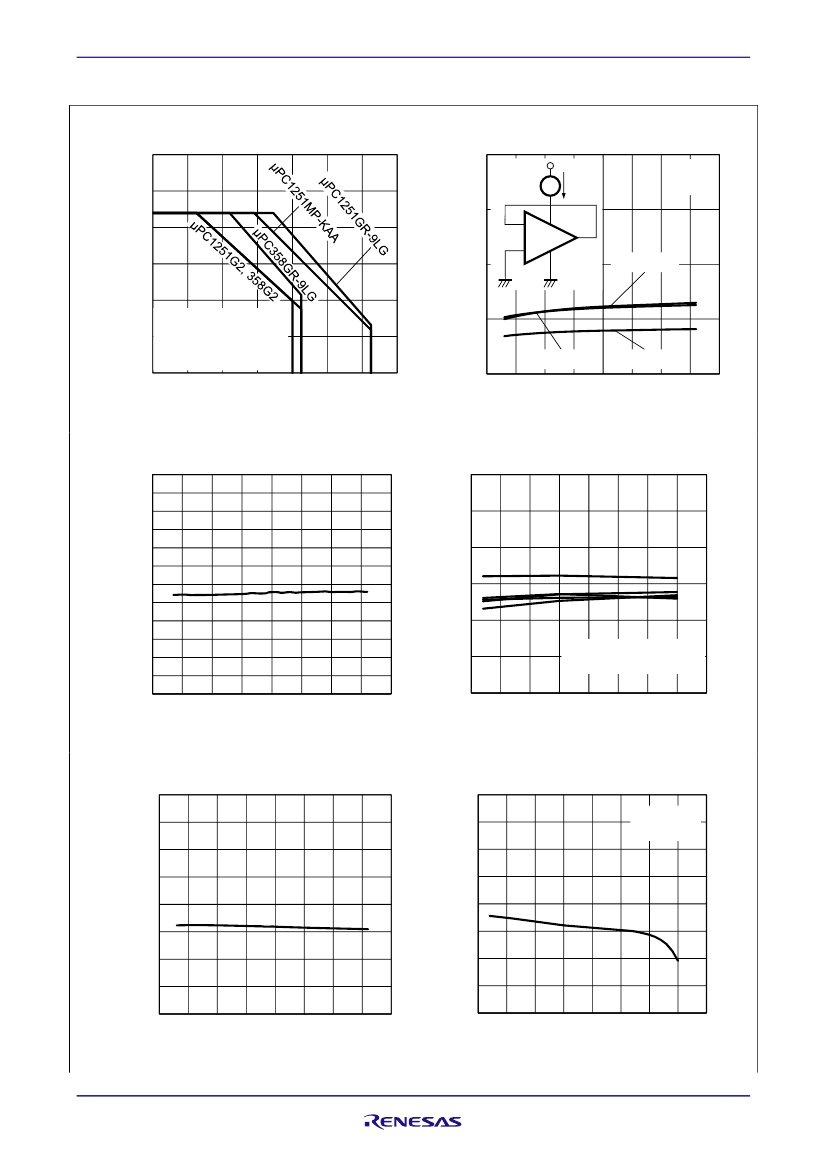

TYPICAL PERFORMANCE CHARACTERISTICS (T
A
= 25
C,
TYP.) (Reference Value)
P
T
vs. T
A
600
Total Power Dissipation, P
T
[mW]
500
400
300
200
100
0
0
With 100 mm x 100 mm,
thickness 1 mm glass expoxy
substrate (refer to
"ABSOLUTE MAXIMUM
RATINGS Note4")
I
CC
vs. V
+
2
V
+
A I
CC
Supply Current, I
CC
[mA]
1.5
-
1
+
T
A
= 25
C
R
L
=
I
O
= 0 A
0.5
T
A
= -40
C
0
T
A
= 125
C
20
40
60
80
100
120
140
0
Operating Ambient Temperature, T
A
[C]
V
IO
vs. V
+
3
Input Offset Voltage, V
IO
[mV]
Input Offset Voltage, V
IO
[mV]
2
1
0
-1
-2
-3
0
10
20
30
40
+
[V] (V
-
= GND)
Power Supply Voltage, V
I
B
vs. V
+
30
30
3
2
1
0
-1
-2
-3
-50
10
20
30
40
+
[V] (V
-
= GND)
Power Supply Voltage, V
V
IO
vs. T
A
V
+
= +5 V, V
-
= GND
Any 5 samples data
0
50
100
150
Operating Ambient Temperature, T
A
[C]
I
B
vs. T
A
V
+
= +15 V
V
-
= GND
20
Input Bias Current, I
B
[nA]
20
Input Bias Current, I
B
[nA]
10
10
0
0
-10
0
10
20
30
40
+
[V] (V
-
= GND)
Power Supply Voltage, V
-10
-50
0
50
100
150
Operating Ambient Temperature T
A
[C]
R03DS0144EJ0100 Rev.1.00
2019.1.17
Page 5 of 11
