LP3962/LP3965 1.5A Fast Ultra Low Dropout Linear Regulators
November 2004
LP3962/LP3965
1.5A Fast Ultra Low Dropout Linear Regulators
General Description
The LP3962/LP3965 series of fast ultra low-dropout linear
regulators operate from a +2.5V to +7.0V input supply. Wide
range of preset output voltage options are available. These
ultra low dropout linear regulators respond very fast to step
changes in load which makes them suitable for low voltage
microprocessor applications. The LP3962/LP3965 are de-
veloped on a CMOS process which allows low quiescent
current operation independent of output load current. This
CMOS process also allows the LP3962/LP3965 to operate
under extremely low dropout conditions.
Dropout Voltage:
Ultra low dropout voltage; typically 38mV
at 150mA load current and 380mV at 1.5A load current.
Ground Pin Current:
Typically 5mA at 1.5A load current.
Shutdown Mode:
Typically 15µA quiescent current when
the shutdown pin is pulled low.
Error Flag:
Error flag goes low when the output voltage
drops 10% below nominal value (for LP3962).
SENSE:
Sense pin improves regulation at remote loads.
(For LP3965)
Precision Output Voltage:
Multiple output voltage options
are available ranging from 1.2V to 5.0V and adjustable
(LP3965), with a guaranteed accuracy of
±
1.5% at room
temperature, and
±
3.0% over all conditions (varying line,
load, and temperature).
Features
n
n
n
n
n
n
n
n
n
n
n
n
Ultra low dropout voltage
Low ground pin current
Load regulation of 0.04%
15µA quiescent current in shutdown mode
Guaranteed output current of 1.5A DC
Available in SOT-223,TO-263 and TO-220 packages
Output voltage accuracy
±
1.5%
Error flag indicates output status (LP3962)
Sense option improves better load regulation (LP3965)
Extremely low output capacitor requirements
Overtemperature/overcurrent protection
−40˚C to +125˚C junction temperature range
Applications
n
n
n
n
n
n
n
n
Microprocessor power supplies
GTL, GTL+, BTL, and SSTL bus terminators
Power supplies for DSPs
SCSI terminator
Post regulators
High efficiency linear regulators
Battery chargers
Other battery powered applications

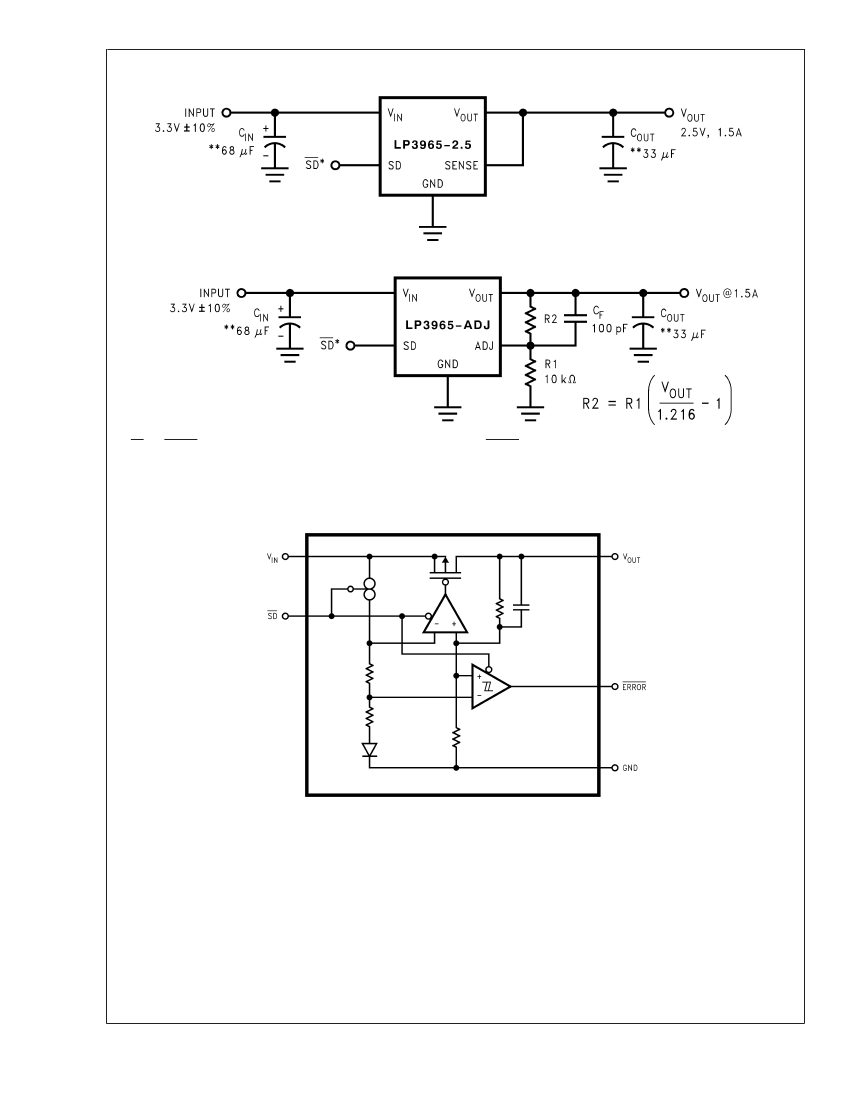

Typical Application Circuits
10126601
*SD and ERROR pins must be pulled high through a 10kΩ pull-up resistor. Connect the ERROR pin to ground if this function is not used. See applications
section for more information.
** See Application Hints.
© 2004 National Semiconductor Corporation
DS101266
www.national.com
