REVISION AK
DO NOT
SCALE FROM
THIS PRINT
FTR-1XX-XX-XX-S-XX-XX
No OF POSITIONS
-02 THRU -40
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
(VALUES GIVEN ARE IN MICRO-INCHES)
-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT,
3 Au / 50 Ni MIN ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: SELECTIVE, 30 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
(LEAD STYLE SPEC -01 ONLY)
-SM: SELECTIVE, 30 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-TM: MATTE TIN CONTACT AND TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN
ON CONTACT, MATTE TIN TAIL
ROW SPECIFICATION
-S: SINGLE (USE HTMS-50-S)
OPTION
-P: PICK & PLACE PAD
(USE PPP-11, SEE FIG 2)
-TR: TAPE & REEL
(4 POS MIN)
OPTION
-XX: -POLARIZING SPECIFICATION
(XX INDICATES POS TO BE OMITTED)
SEE NOTE 4
(No OF POS x .050 [1.27]
+.002[0.01]
-.010[0.25]
.096 2.44 REF
3 MAX SWAY
(EITHER DIRECTION)
01
.050 1.27 REF
HTMS-50-S
.018 0.46 SQ REF
T-1M6-XX-X-2
2 MAX SWAY
(EITHER DIRECTION)
.190 4.83 REF
(CONTACT AREA)
2 MAX SWAY
(EITHER DIRECTION)
C
"B"
C
+4°
90°
- 2°
(TYP)
.100 2.54 REF
C
.004[0.10]
.05 1.3
(SEE NOTE 8)
.050 1.27 (TYP)
(SEE NOTE 6)
.196 4.98 REF
*
PROPRIETARY NOTE
*
FTR-1XX-XX-X-S SHOWN
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM CUT FLASH: .010[0.25]
3. MINIMUM PUSHOUT FORCE: 2 LB
4. MAXIMUM PIN ROTATION IN BODY: 2°
5. MAXIMUM ALLOWABLE BOW AFTER ASSEMBLY: .005[0.13] INCH/INCH
6. SHEAR TAILS TO DIMENSION SHOWN.
7. MAXIMUM BURR ALLOWANCE: .003[0.08]
8. MEASURED AT BEND RADIUS.
9. TUBE POSITIONS -05 THRU -50 ONLY FOR THIS LEAD STYLE.
F:\DWG\MISC\MKTG\FTR-1XX-XX-XX-S-XX-XX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
INSULATOR: LCP, UL 94 VO
COLOR: BLACK
TERMINAL : PHOS BRONZE

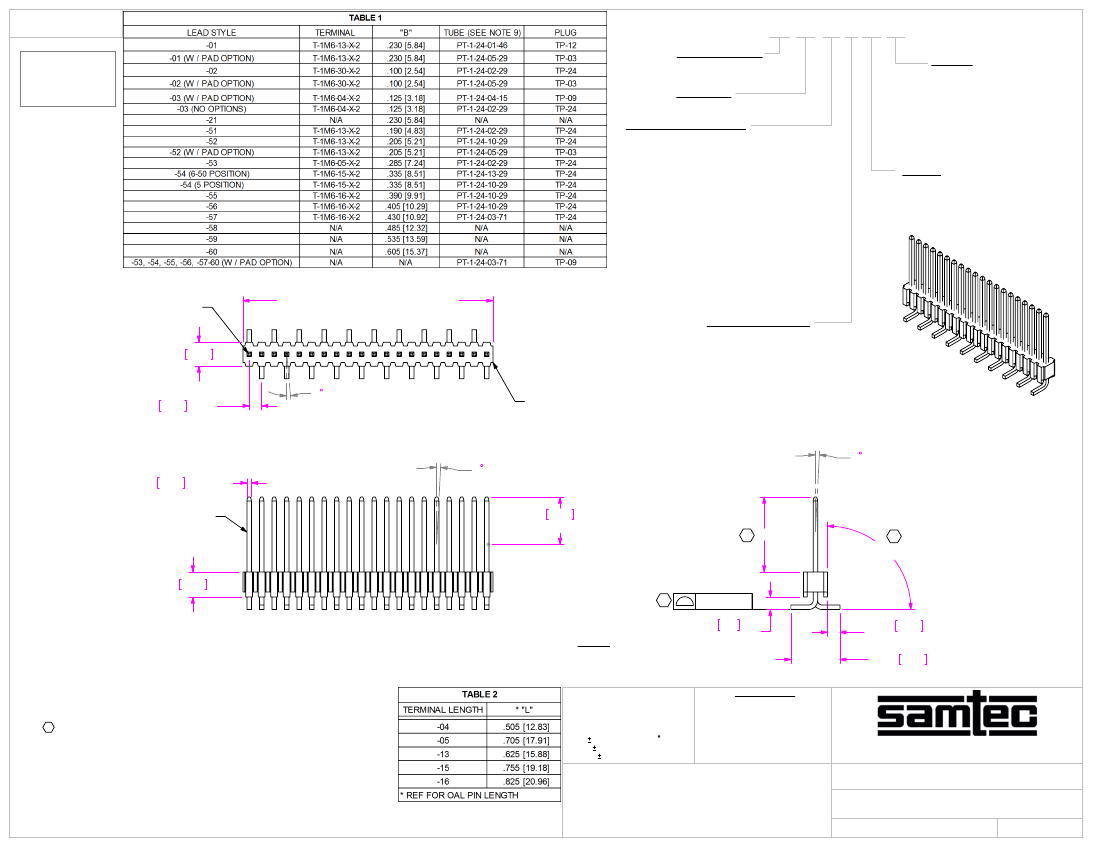

HI-TEMP TERMINAL MICRO-STRIP (SINGLE ROW)
FTR-1XX-XX-XX-S-XX-XX
SHEET
1
OF
2
BY:
BRATCHER 7-10-95
REVISION AK
"N" = USE MEASURED DIMENSION
"Q" = {("N" - .400 [10.16]) /2} .020[0.51]
"N"
.400 10.16
REF
"Q"
.050 1.27 REF
.210 5.33 REF
.200 5.08
REF
C
L
-P: PICK AND PLACE PAD
AVAILABLE ON 08 - 40 POSITIONS ONLY
FIG 2
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
HI-TEMP TERMINAL MICRO-STRIP (SINGLE ROW)
FTR-1XX-XX-XX-S-XX-XX
SHEET
2
OF
2
F:\DWG\MISC\MKTG\FTR-1XX-XX-XX-S-XX-XX-MKT.SLDDRW
BY:
BRATCHER 7-10-95
