SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 1
MULTILAYER CHIP BEAD
ABC'S DWG NO.
ABC'S ITEM NO.
MU3269□□□□5□
Ⅰ﹒

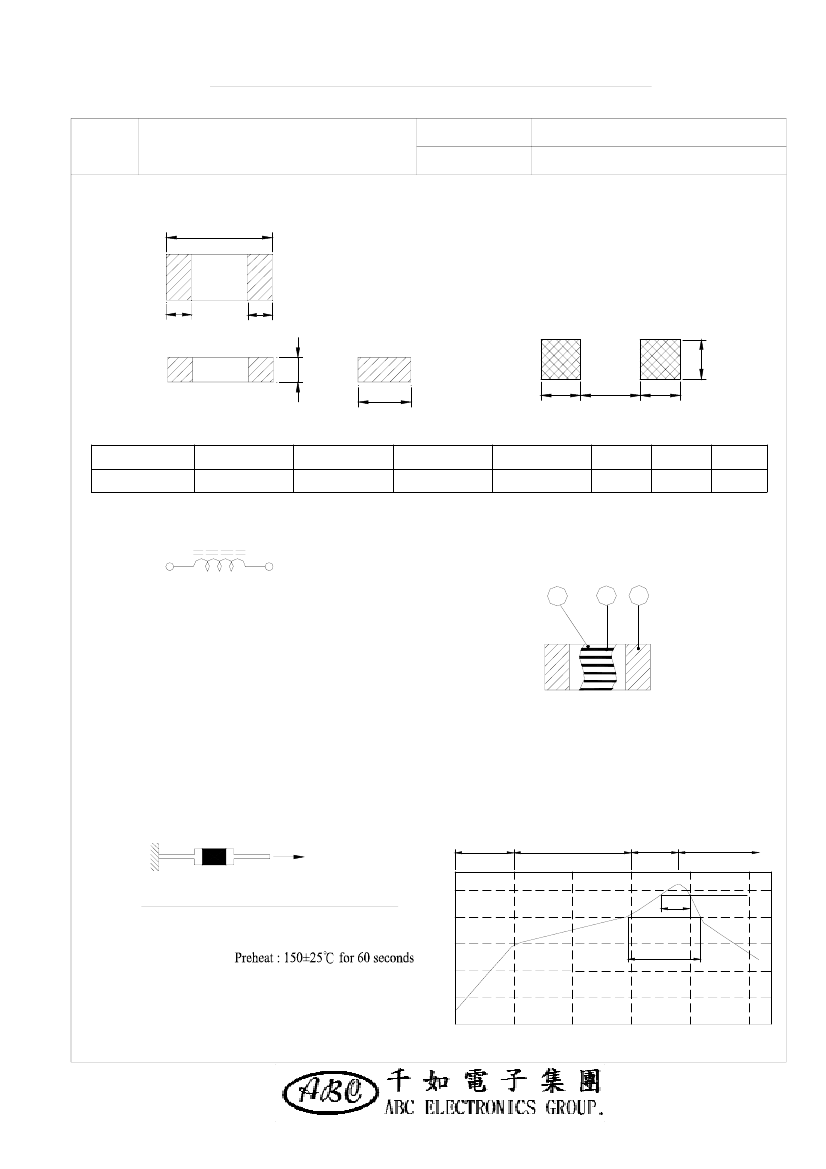

CONFIGURATION & DIMENSIONS
：
A
D
D
C
B
I
G
PCB Pattern
I
Unit : m/m
Series
MU3269
A
3.20±0.20
B
1.60±0.20
C
0.85±0.20
D
0.50±0.30
G
2.2
H
1.4
H
I
1.1
a
b
c
Peak Temp
：
260
℃
max.
Max time above 230
℃ ：
50sec max.
Max time above 200
℃ ：
70sec max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
Ⅱ﹒
SCHEMATIC DIAGRAM
：
Ⅲ﹒
MATERIALS
：
a
﹒
Body
：
Ferrite
b
﹒
Internal conductor
：
Silver or Ag / Pd
c
﹒
Terminal electrode
：
Ag/Ni/Sn (Lead content 100ppm max.)
d
﹒
Remark
：
Lead content 1000ppm max. include ferrite
Ⅳ﹒
GENERAL SPECIFICATION
：
a
﹒
Storage temp.
：
-40 ---- +105
℃
b
﹒
Operating temp.
：
-25 ---- +85
℃
c
﹒
Terminal Strength
：
F
Type
MU3269
d
﹒
Solderability
：
Solder : Sn96.5 / Ag3 / Cu0.5
or equivalent
Solder temp. : 260±5℃
Flux : Rosin
Dip time : 4±1 seconds
AE-001A
F ( kgf )
1.0
time ( sec )
Temperature (
℃
)
250
200
150
70sec max.
30±5
100
50
0
50
100
150
Time ( seconds )
200
250
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 2
MULTILAYER CHIP BEAD
ABC'S DWG NO.
ABC'S ITEM NO.
MU3269□□□□5□
Ⅴ﹒
ELECTRICAL CHARACTERISTICS
：
DWG No.
MU3269190Y5□
MU3269310Y5□
MU3269700Y5□
MU3269301Y5□
MU3269601Y5□
Impedance
(
Ω
)
19.0±25%
31.0±25%
70.0±25%
300.0±25%
600.0±25%
Z Test Freq.
( MHz )
100
100
100
100
100
RDC
(
Ω
)
max.
0.05
0.05
0.10
0.20
0.30
Ir
( mA )
max.
2000
2000
1000
600
600
1).
□
：
Packaging Information… A
：
Bulk
B
：
Taping Reel
Ⅵ﹒

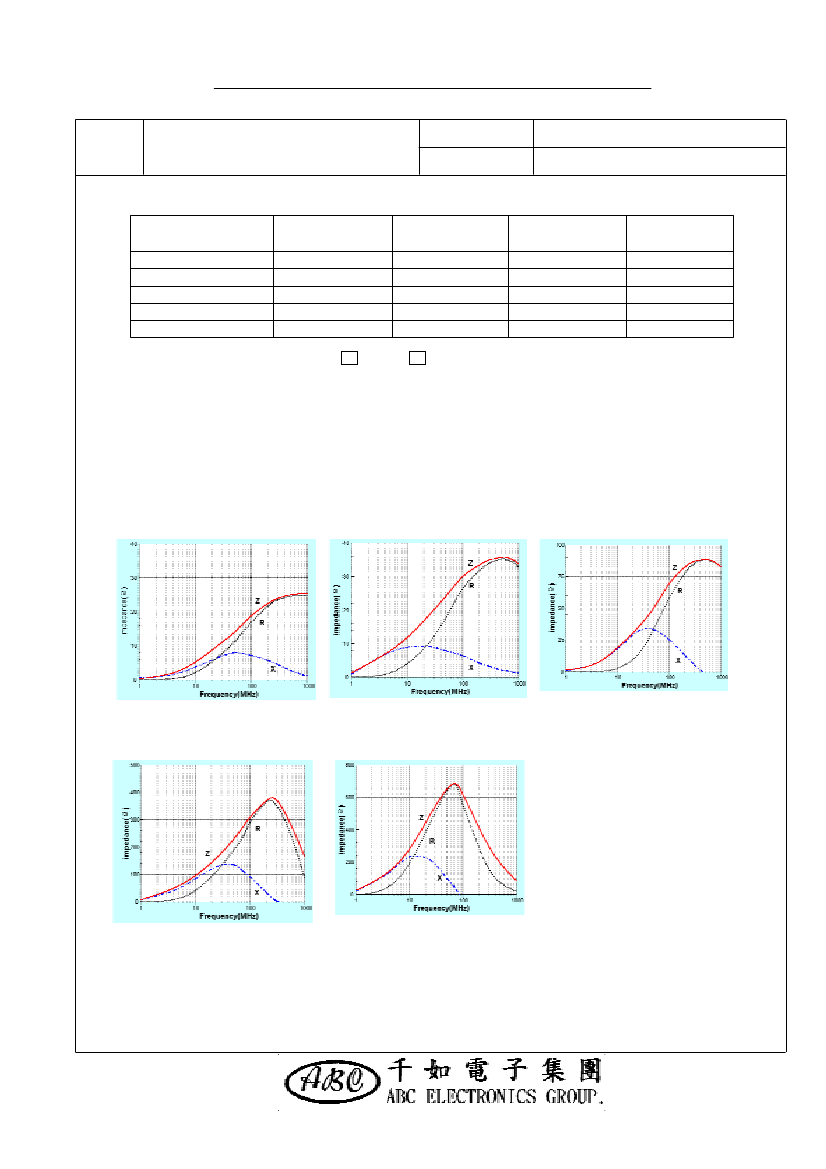

IMPEDANCE VS. FREQUENCY CHARACTERISTICS
：
MU3269-190
MU3269-310
MU3269-700
MU3269-301
MU3269-601
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 3
MULTILAYER CHIP BEAD
ABC'S DWG NO.
ABC'S ITEM NO.
MU3269□□□□5□
Ⅶ﹒

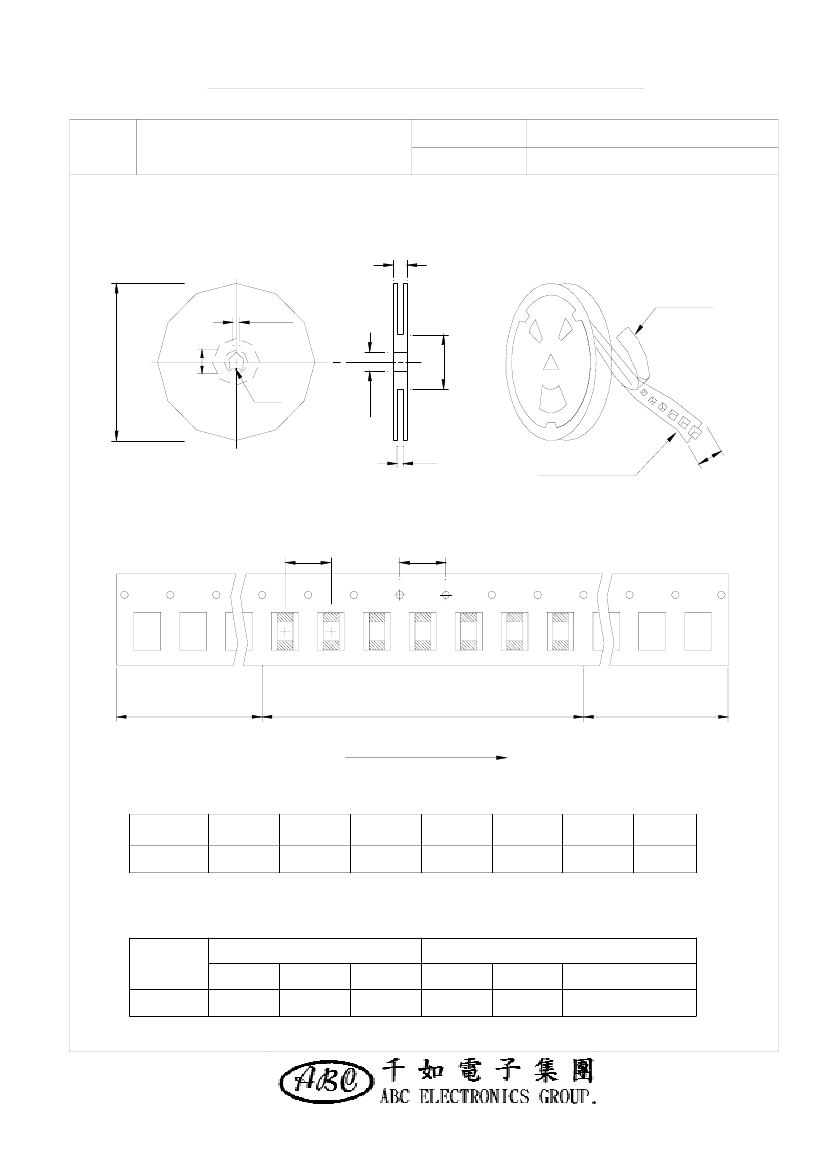

PACKAGING INFORMATION
( 1 ) Confihuration
T
Cover Tape
2.0±0.5
B
A
∮
C
∮
C
N
G
D
Embossed Carrier
※
Carrier tape width : D
P:4 m/m
End
4 m/m
Start
Leader
no component
160 m/m Min.
Components
User direction of feed
Trailer
no component
400 m/m Min.
( 2 ) Dimensions
Style
07 - 08
A
178
B
21±0.8
C
13
D
8
G
10 +0
N
50 -0
Unit:m/m
T
12.5
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
MU3269
Q'TY (pcs)
G.W. (gw)
Style
Q'TY(pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
3,000
150
07 - 08
120,000
8.5
41 x 39 x 22
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 4
MULTILAYER CHIP BEAD
ABC'S DWG NO.
ABC'S ITEM NO.
MU3269□□□□5□
Ⅷ﹒
DWG EXPRESSION
：
M U
3
2
6
9
Appendix code 2
Appendix code 1
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1
：
S
：
Standard products
A
∼
K
，
M
∼
R
，
T
∼
Z
：
Special products
L
：
Standard Lead Free products
1 ~ 9
：
Special Lead Free products
Appendix code 2：
Code
A
B
Inner package
Empty
T / R ( Reel package )
Inner package Q'TY
Empty
3000
pcs
Remark
AE-001A
