ECM08DCKD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ECM08DCKD

ECM08DCKD: DescriptionCard Edge Connector, 16 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Solder Terminal, Hole .115-.125; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

ECM08DCKD Overview

Card Edge Connector, 16 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Solder Terminal, Hole .115-.125

ECM08DCKD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	309579254
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
body width	0.37 inch
subject depth	0.61 inch
body length	2.096 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Filter function	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	3 A
Terminal length	0.19 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

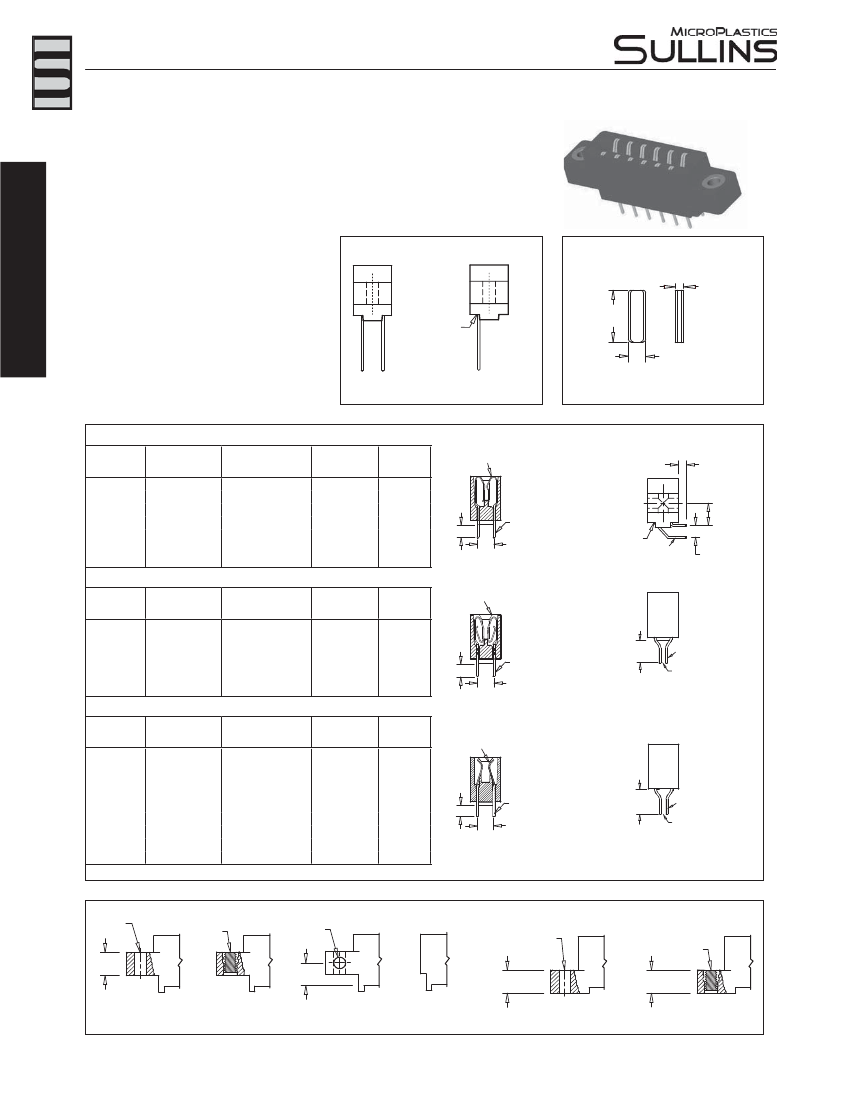

Sullins Edgecards

.156” [3.96 mm] Contact Centers, .610” [15.49 mm] Insulator Height

Dip Solder/Wire Wrap/Right Angle/Card Extender

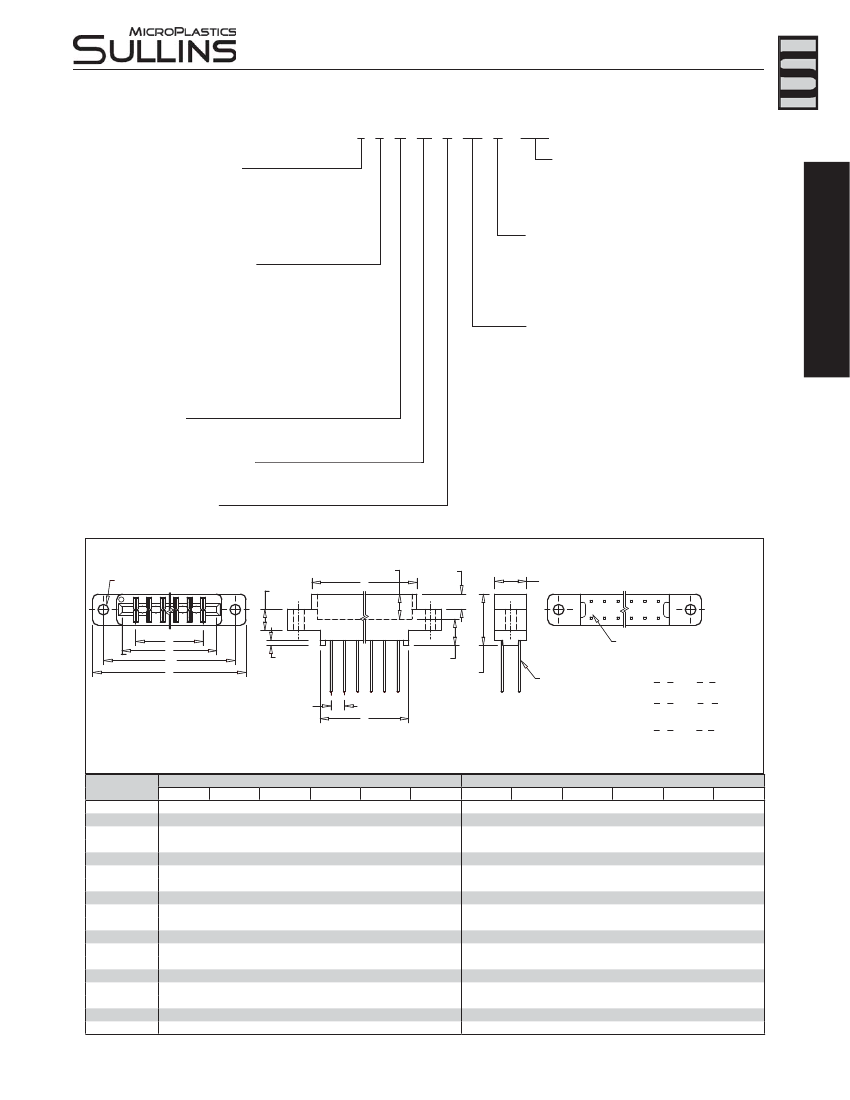

SPECIFICATIONS

• Accommodates .062” ± .008” [1.57 ± .20]

PC board (See page68/69 for

.093” ± .008” [2.36 ± .20] and .125” ± .008”

[3.18 ± .20] boards)

• PBT, PPS or PA9T insulator

• Molded-in key available

• 3 amp current rating per contact

• 30 milli ohm maximum at rated current

Sullins Edgecards

READOUT

POLARIZING KEY

PLC-K1

.038

[0.97]

.285

[7.24]

.100[2.54]

NUMBER

SIDE

DUAL (D)

HALF LOADED (H)

KEY IN BETWEEN CONTACTS

(ORDER SEPARATELY)

TERMINATION TYPE

HAIRPIN

BELLOWS

TERMINATION

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

POST CROSS

POST LENGTH

SECTION

.025 [.64]

.015 x .025 [.38 x .64]

.125 [3.18]

.015 x .025 [.38 x .64]

.170 [4.32]

.025 [.64] SQUARE

.160 [4.06]

.025 [.64] SQUARE

.560 [ 14.20]

.025 [.64] SQUARE

.100 [2.54]

.025 [.64] SQUARE

.180 [4.57]

.025 [.64] SQUARE

.250 [6.35]

FITS MIN.

HOLE SIZE

.035

.040

.043

[0.76]

[1.02]

[1.09]

HAIRPIN BELLOWS

RIGHT ANGLE

.200 [5.08]

(CW, CT, CS, CM)

NUMBER

SIDE

.275

[6.98]

.150[3.81]

(CA, CB, CC, TA, TB, TM, KA, KE, KU, KJ)

HAIRPIN or LOOP CARD EXTENDER

LOOP

BELLOWS

TK,CK

TERMINATION

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

POST CROSS

SECTION

.026 [.66] ROUND

.025 [.64] SQUARE

POST LENGTH FITS MIN.

HOLE SIZE

.025 [.64]

.190 [4.83]

.030 [0.76]

.190 [4.83]

.040 [1.02]

.560 [14.20]

.040 [1.02

.100 [2.54]

.043 [1.09]

.180 [4.57]

.043 [1.09]

.250 [6.35]

.043 [1.09]

LOOP BELLOWS

L - .015[.038]

.200 [5.08]

(TK, CK, RS, RM)

ACCOMMODATES

.062 [1.57] PCB

(CW, CT, CS, CM,TK, CK, RS,RM)

Example P/N: EBM10DCSN-S288

(Requires -S288 Modification Code)

POST CROSS

POST LENGTH FITS MIN.

SECTION

HOLE SIZE

.025 [.64]

DIP SOLDER

.025 [.64] SQUARE

.190 [4.83]

.040 [1.02]

DIP SOLDER

.025 [.64] SQUARE

.160 [4.06]

.043 [1.09]

WIRE WRAP

.025 [.64] SQUARE

.560 [14.20]

.040 [1.02]

*KA

RIGHT ANGLE

.025 [.64] SQUARE

.100 [2.54]

.043 [1.09]

*KE

RIGHT ANGLE

.025 [.64] SQUARE

.180 [4.57]

.043 [1.09]

*KU

RIGHT ANGLE

.025 [.64] SQUARE

.250 [6.35]

.043 [1.09]

*KJ

RIGHT ANGLE

.025 [.64] SQUARE

.500 [12.70]

.043 [1.09]

*KR

CARD EXTENDER

.025 [.64] SQUARE

.235 [5.97]

N/A

*KN

CARD EXTENDER

.025 [.64] SQUARE

.605 [15.37]

N/A

* KA, KE, KJ, KR, KN have no standoffs, unless requested.

CANTILEVER

TERMINATION

TYPE

CANTILEVER

CANTILEVER CARD EXTENDER

.200 [5.08]

(KS, KD, KM)

ACCOMMODATES

.062 [1.57] PCB

(KR, KN)

Example P/N: EBM10DKRN

(Omit Modification Code)

MOUNTING STYLE

Ø.125

[3.18]

.250

[6.35]

#4-40

Ø.125

[3.18]

.245

[6.22]

Ø.125 [3.18]

#4-40

D = .250 [6.35]

W = .430 [10.92]

T = .250 [6.35]

X = .430 [10.92]

CLEARANCE

HOLE (H)

THREADED

INSERT(I)

SIDE MOUNTING

(S)

NO MOUNTING

EARS (N)

FLUSH MOUNTING

(D, W)

FLUSH MOUNTING WITH

THREADED INSERT(T, X)

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100

fax 760-744-6081
