ZFDC-10-2

Description
Directional Coupler, 10MHz Min, 1000MHz Max, 2dB Insertion Loss-Max, CASE K18
CategoryWireless rf/communication    Radio frequency and microwave
File Size104KB，1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

ZFDC-10-2 Overview

Directional Coupler, 10MHz Min, 1000MHz Max, 2dB Insertion Loss-Max, CASE K18

ZFDC-10-2 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresBNC
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)34.77 dBm
Maximum insertion loss2 dB
JESD-609 codee0
Maximum operating frequency1000 MHz
Minimum operating frequency10 MHz
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesDIRECTIONAL COUPLER
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio1.5
Base Number Matches1

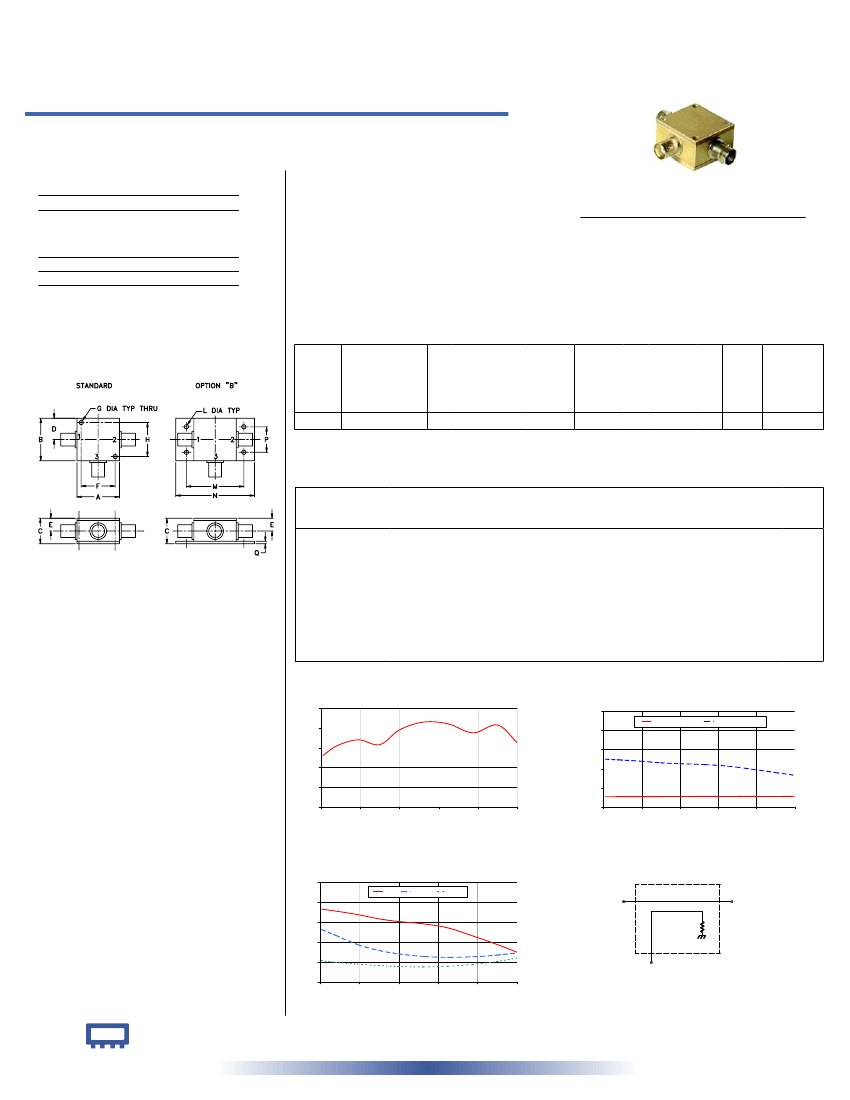

Preview

Download Datasheet
Directional Coupler
50Ω
Maximum Ratings
Operating Temperature
Storage Temperature
Coaxial
ZFDC-10-2
10 to 1000 MHz
-55°C to 100°C
-55°C to 100°C
Features
• wideband, 10 to 1000 MHz
• excellent directivity, 30 dB typ.
• rugged shielded case
BNC version shown
CASE STYLE: K18
Connectors Model
BNC
ZFDC-10-2
SMA
ZFDC-10-2-S
N-TYPE
ZFDC-10-2-N
BRACKET (OPTION"B")
Price
$51.95
$56.95
$56.95
$2.50
Qty.
(1-9)
(1-9)
(1-9)
(1+)
Coaxial Connections
INPUT
OUTPUT
COUPLED
1
2
3
Applications
• VHF/UHF
• cellular
• instrumentation
• communication receivers & transmitters
Directional Coupler Electrical Specifications
Outline Drawing
FREQ.
RANGE
(MHz)
f
L
-f
U
10-1000
COUPLING
(dB)
L
Nom.
10.75±0.5
Flatness
±0.5
MAINLINE LOSS
1
DIRECTIVITY
(dB)
U
L
Min.
28
Typ.
30
M
Min.
25
Typ.
27
U
Min.
20
VSWR
(:1)
POWER
INPUT
(W)
L
MU
Max.
3.0
Max.
1.5
M
Typ. Max. Typ. Max. Typ. Max. Typ.
1.5
2.0
1.2
1.8
1.5
2.0
35
Typ.
1.5
L = low range [f
L
to 10 f
L
]
M = mid range [10 f
L
to f
U
/2]
U= upper range [f
U
/2 to f
U
]
1. Mainline loss includes theoretical power loss at coupled port.
Typical Performance Data
Frequency
(MHz)
10.00
82.00
190.00
300.00
400.00
525.00
650.00
775.00
900.00
1000.00
Mainline Loss
(dB)
In-Out
1.02
1.12
1.18
1.13
1.28
1.36
1.34
1.25
1.33
1.15
ZFDC-10-2
MAINLINE LOSS
1.5
MAINLINE LOSS (dB)
1.3
1.1
0.9
0.7
0.5
0
200
400
600
FREQUENCY (MHz)
800
1000
at RF level of -10 dBm
Coupling
(dB)
In-Cpl
10.60
10.67
10.76
10.75
10.89
10.92
10.89
10.93
10.88
11.06
Directivity
(dB)
49.75
49.03
47.76
46.01
45.09
44.18
42.52
39.39
35.85
32.99
In
39.14
38.36
37.00
35.26
34.20
33.26
31.63
28.46
24.98
21.93
Return Loss
(dB)
Out
30.98
28.65
25.04
22.63
21.25
20.24
19.87
20.10
20.76
21.65
Cpl
18.57
17.85
17.16
16.58
16.22
16.05
16.29
17.02
18.22
19.61
Outline Dimensions (
inch
)
mm
A
1.25
31.75
B
1.25
31.75
C
.75
19.05
D
.63
16.00
E
.38
9.65
F
1.00
25.40
G
.125
3.18
H
1.000
25.40
J
--
--
K
--
--
L
.125
3.18
M
1.688
42.88
N
2.18
55.37
P
.75
19.05
Q
wt
.07 grams
70.0
1.78
ZFDC-10-2
COUPLING & DIRECTIVITY
100
COUPLING & DIRECTIVITY
(dB)
80
60
40
20
0
0
200
400
600
FREQUENCY (MHz)
800
1000
at RF level of -10 dBm
COUPLING
DIRECTIVITY
ZFDC-10-2
RETURN LOSS
50
RETURN LOSS (dB)
42
34
26
18
10
0
200
400
600
FREQUENCY (MHz)
800
1000
at RF level of -10 dBm
electrical schematic
CPL
IN
OUT
INPUT
OUTPUT
COUPLED
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. OR
M93827
ZFDC-10-2
WZ/TD/CP
060803
Mini-Circuits
ISO 9001 & ISO 14001
Certified
