5-1746034-0

Description
HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,PIN,0.016 PITCH,SURFACE MOUNT TERMINAL,LOCKING
CategoryThe connector    The connector
File Size43KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5-1746034-0 Overview

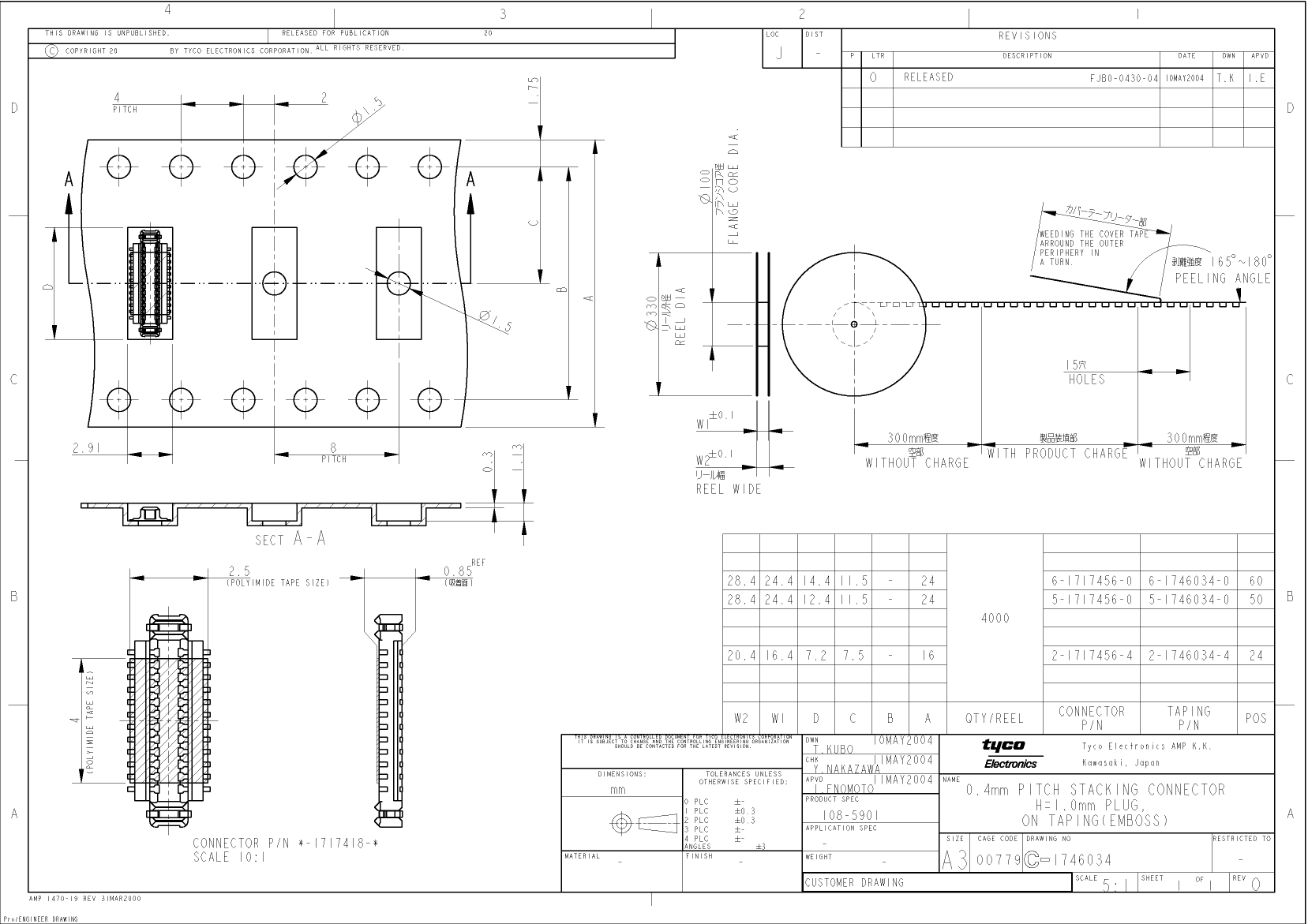

HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,PIN,0.016 PITCH,SURFACE MOUNT TERMINAL,LOCKING

5-1746034-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304107211
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Other featuresROHS,ELV COMPL W/TAPE,REEL PKG
Board mount optionsPEG
body width0.105 inch
subject depth0.035 inch
body length0.474 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage200VAC V
Durability20 Cycles
Filter functionNO
maximum insertion force48.0384 N
Insulation resistance500000000 Ω
insulator materialPOLYETHYLENE
Plug contact pitch0.016 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.032 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts50
Evacuation force-minimum value3.336 N
