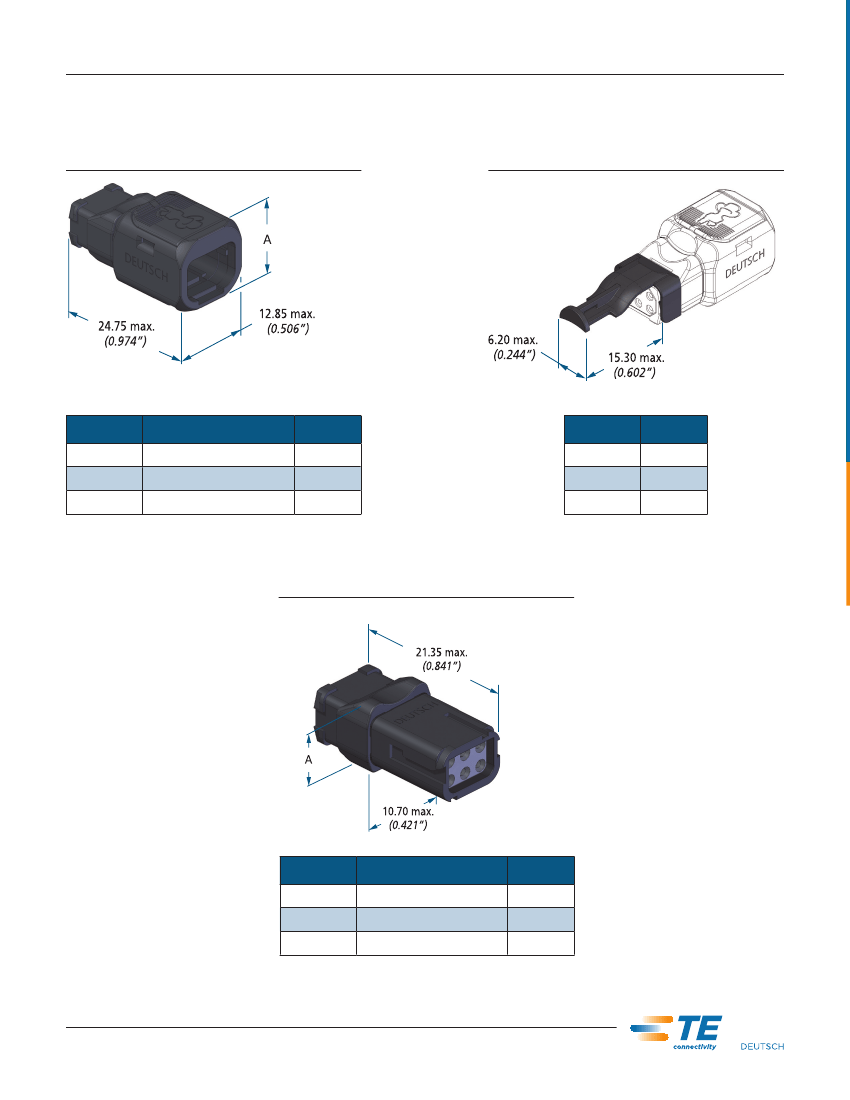

369 Series Connectors
KEY FEATURES
• 3, 6 and 9 way configurations
• Based on existing ARINC 809 / EN4165
• Composite materials
• Robust design
• Fully sealed cable and mating interface
• Mounting of inline with cable-tie
• Button latching mechanism
• Color-coded keyed shells
• Scoop-proof interface
• Military standard AS39029 contacts
• Latch security feature

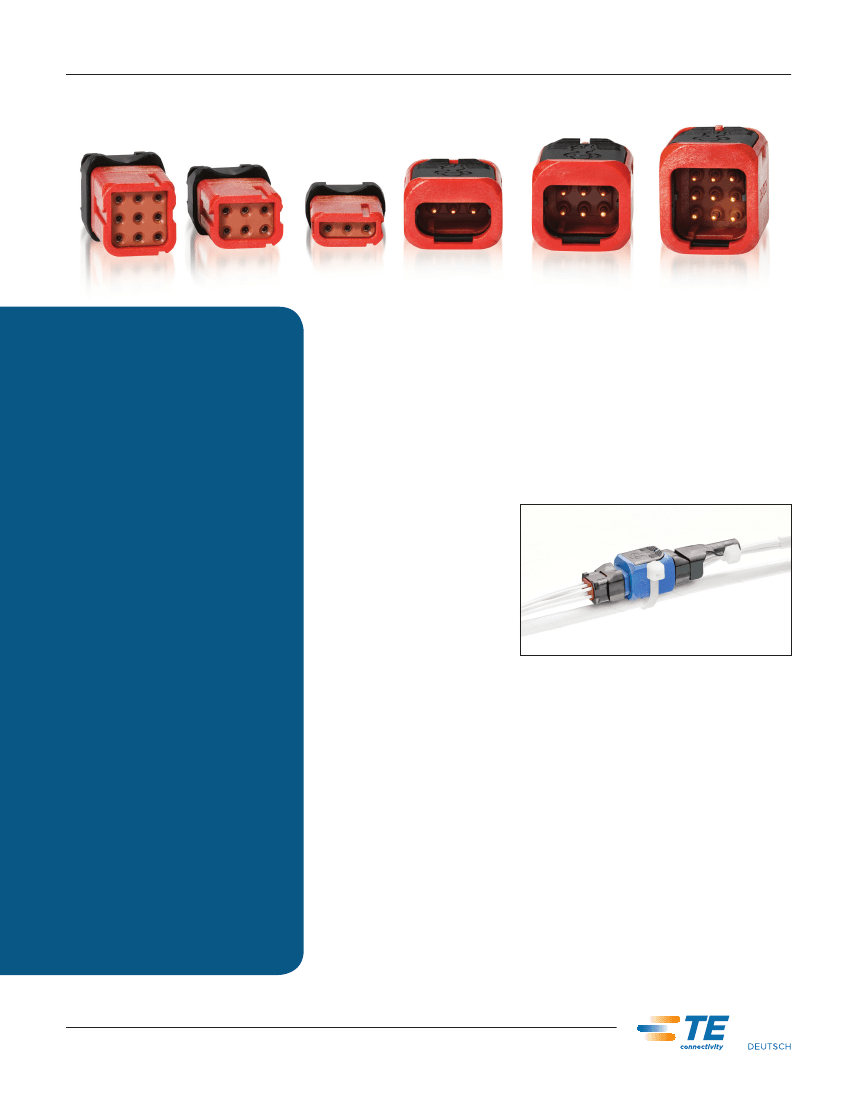

Introduction
TE Deutsch 369 series connectors has been developed to provide a range
of high reliability, lightweight, compact and cost efficient connectors suited
to aerospace and other harsh environment applications. The product is
particularly suited to civil aerospace cabin systems applications and is
based on the successful Deutsch ARINC 809/EN4165 single module
connector. The 369 series is designed for applications where fewer contacts
are needed in each connector and shielding is unnecessary.
Connectors are available with
3, 6, and 9 contacts. Installation
and maintenance of cabling
is quick and easy with a range
of individually color-coded
keying options. Furthermore,
each mated half of the
connector can be configured
with either male or female
contacts, doubling the keying configurations available and electrically
protecting contacts on the powered-side of your system.
Aerospace standard AS39029 contacts can be easily extracted and
reinserted from the rear of the connector with standard tooling. The 369
is suitable for blindmating or low visibility conditions with the scoop-proof
interface preventing damage to contacts. The connectors are fully sealed
for use in areas with high levels of moisture and are manufactured from
high performance composite materials which conform to the low smoke,
toxicity and flammability requirements of FAR 25. The 369 series is
complemented by a range of accessories including easy-fit backshells.
BENEFITS
• Suitable for broad range of applications
• High reliability in aerospace environment
• Extremely compact and lightweight with
low smoke, toxicity and flammability
• Excellent temperature, vibration and
fluids resistance
• Suitable for areas where high moisture
levels are present
• Simple quick mounting
• Quick positive and audible locking
• Quick and accurate installation of cabling
• Prevents damage to contacts in
blind-mating conditions
• Standard termination tooling and wire
• Cable-tie helps prevent inadvertent
un-mating
TE
| 369 Series
TE Connectivity
369 Series Connectors
Technical Characteristics
MECHANICAL CHARACTERISTICS
Operating temperature :
Fluid resistance :
Sealing :
Vibration :
Smoke & Toxicity :
Flammability :
Durability :
Shock :
MATERIAL CHARACTERISTICS
Shells, Insulators and backshells :
Contacts :
Seals :
High performance thermoplastic
Copper alloy, gold plated
Fluorosilicone rubber
-55°C to +175°C
I.A.W. EN2591-315
12.1 kPa (1.75 psi) [ 15 km/(50,000 ft) altitude] / IP67
EN2591-403, Method B, Level E, 8h/axis
I.A.W. FAR 25.853, Appendix F
I.A.W. FAR25.853 Appendix F; EN2591-317
500 mating cycles
EN2591-402, Method A, severity 100
Designed to meet the requirements of RoHS
ELECTRICAL CHARACTERISTICS
Dielectric withstanding voltage :
Operating current :
1300 Vrms mated, <2 mA leakage
5 A (size 22)
Part Numbering System
CONNECTOR ORDERING EXAMPLE
Shell Style
P : Plug
R : In-line receptacle
Shell Keying
N (Normal)
A, B, C, D
Contact Style
0 : without
1 : with crimp contacts
D369
Range prefix
-
P
3
Shell Size
3, 6, 9
3
-
N
P
0
No. of contacts
3, 6, 9
Insert Gender
P : Male
S : Female
ACCESSORY ORDERING EXAMPLE
D369
Range prefix
-
STB
-
3
Shell Size
3, 6, 9
Accessory type
Straight backshell : STB
TE
| 369 Series
TE Connectivity
369 Series Connectors
Contacts & Tooling
Crimp Contact (Male/Pin) :
Mil Standard: M39029/58-360
TE-Deutsch equivalent: 38941-22
Crimp Contact (Female/Socket) :
Mil Standard: M39029/57-354
TE-Deutsch equivalent: 38946-22
Contact Insertion/Extraction Tool :
M81969/14-01
Keying & Arrangements

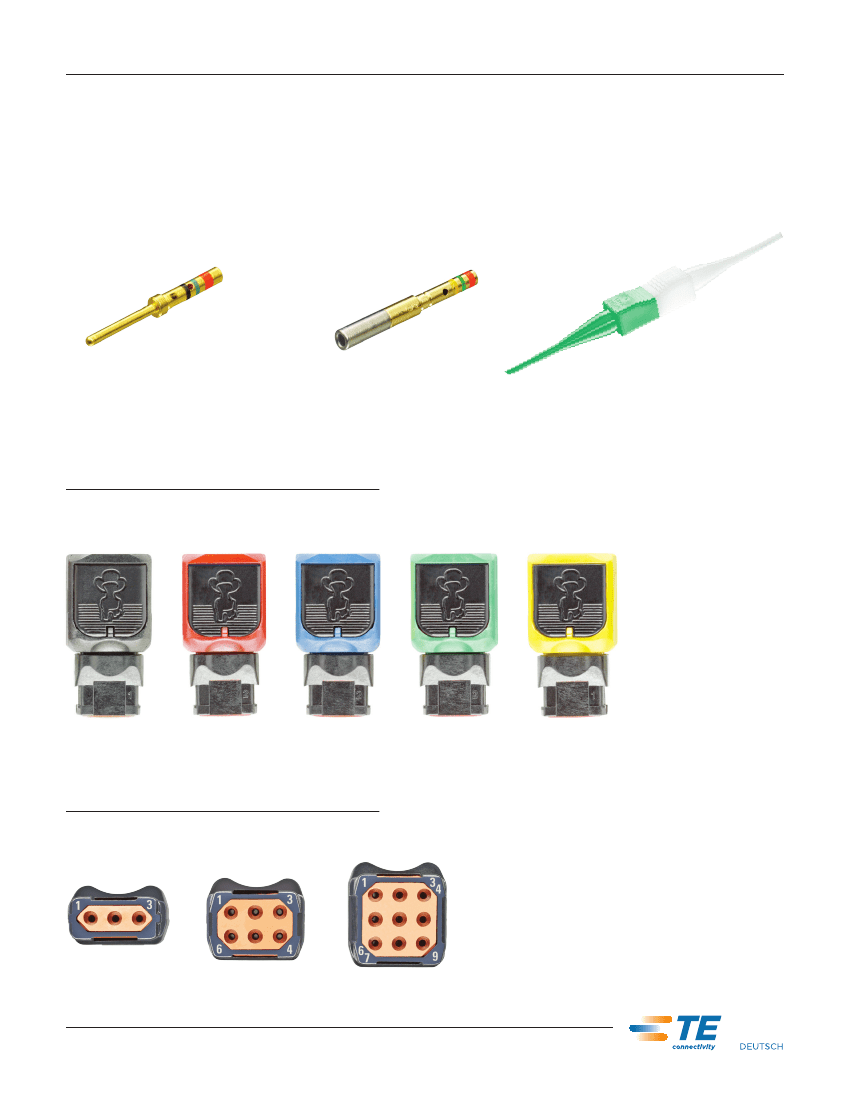

SHELL KEYING
Connectors are physically keyed and color-coded
N-Keying Black
A-Keying Red
B-Keying Blue
C-Keying Green
D-Keying Yellow
CONTACT ARRANGEMENTS
View on rear of receptacle with female insert
TE
| 369 Series
