400A-WMDP2-R1-BLK-M7-Q-E datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 400A-WMDP2-R1-BLK-M7-Q-E

400A-WMDP2-R1-BLK-M7-Q-E: DescriptionRocker Switch, DPDT, Momentary, 3A, 28VDC, Solder Terminal, Rocker Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size459KB，5 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

400A-WMDP2-R1-BLK-M7-Q-E Overview

Rocker Switch, DPDT, Momentary, 3A, 28VDC, Solder Terminal, Rocker Actuator, Through Hole-right Angle

400A-WMDP2-R1-BLK-M7-Q-E Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	ROCKER
body width	9.27 mm
body height	8.13 mm
Body length or diameter	10.11 mm
Contact (AC) maximum rated R load	3A@120VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	400A
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal surface	SILVER
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

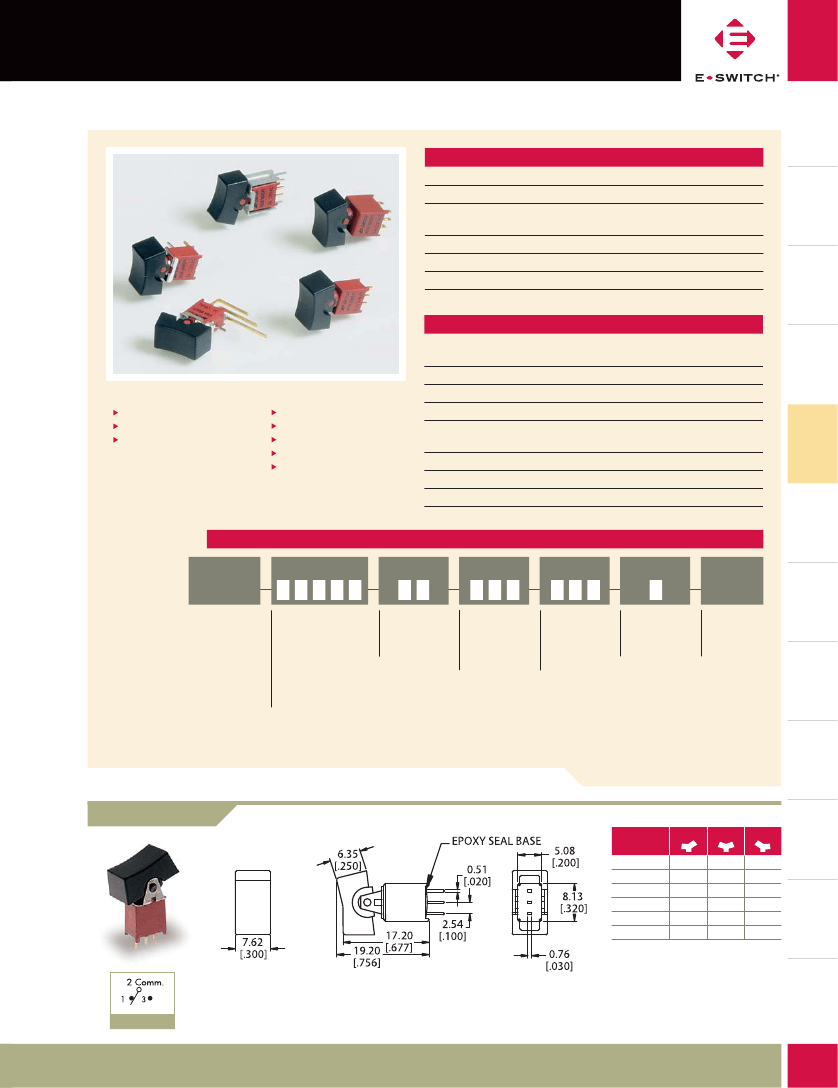

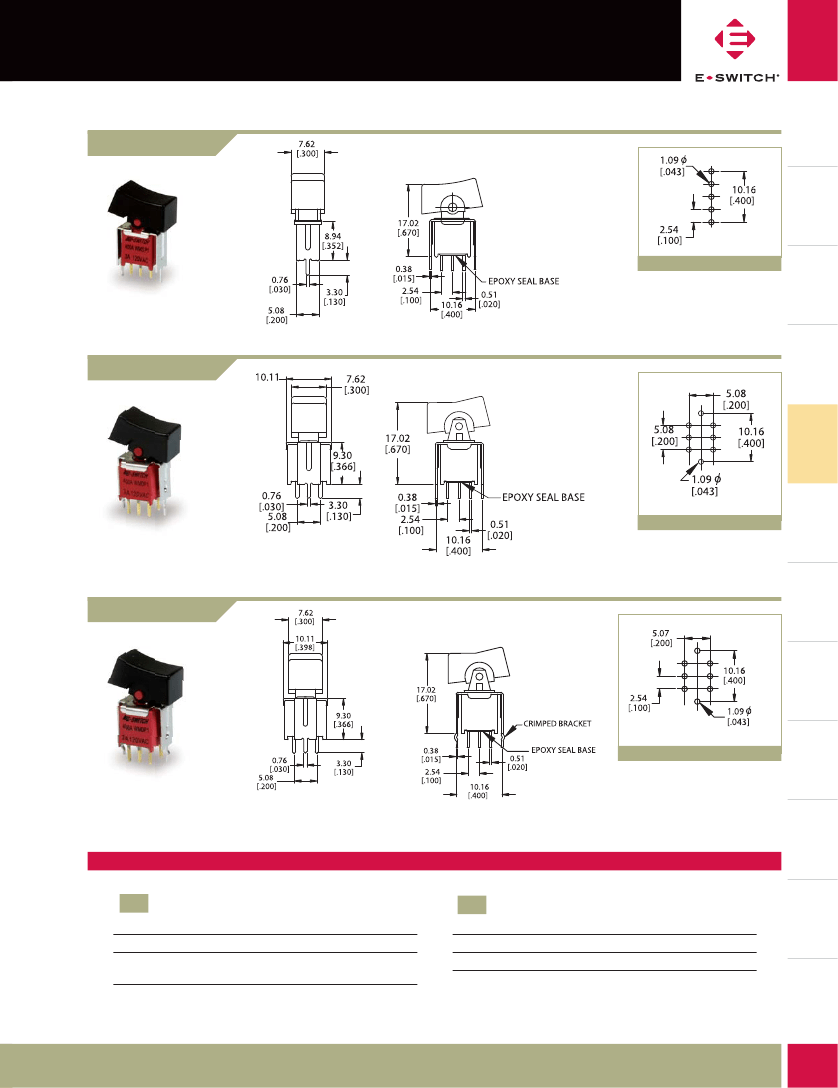

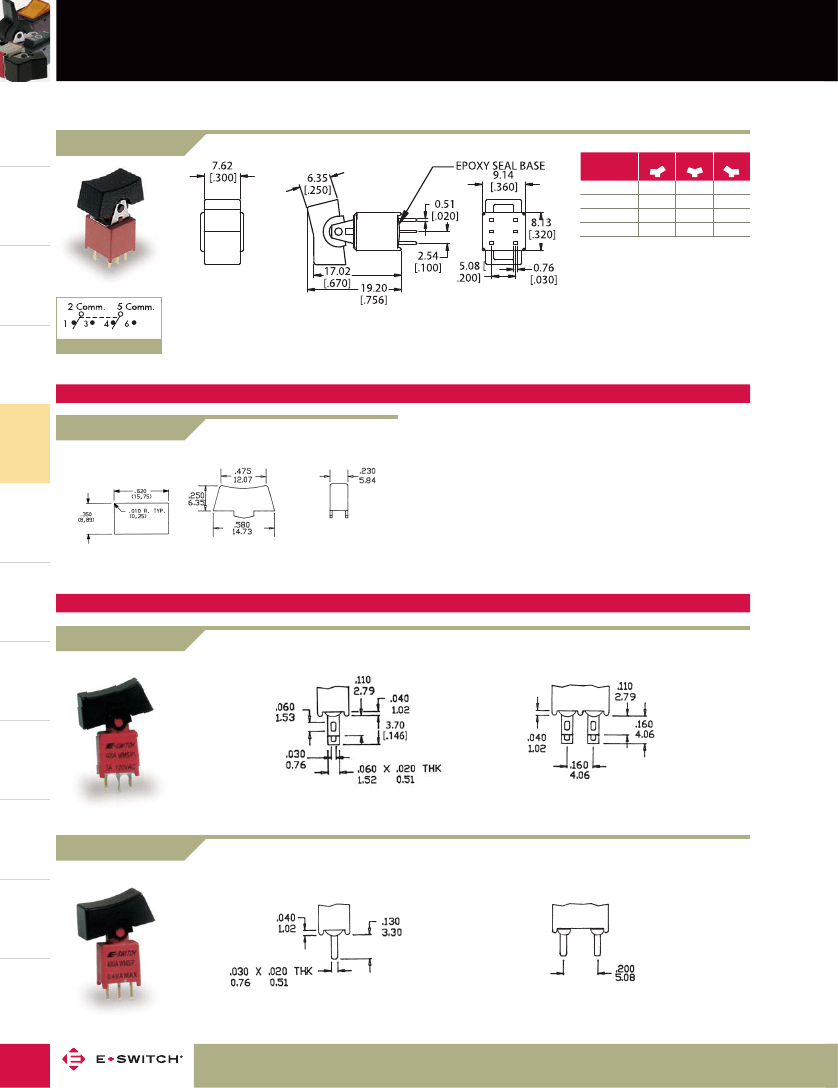

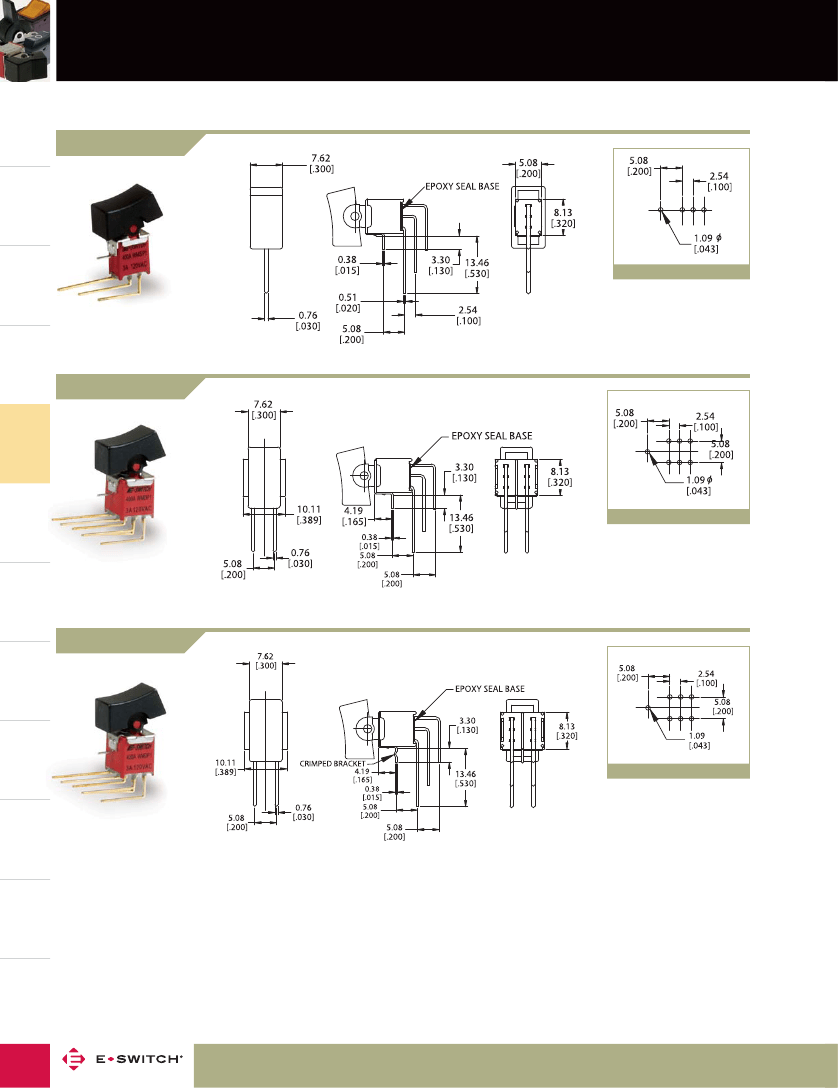

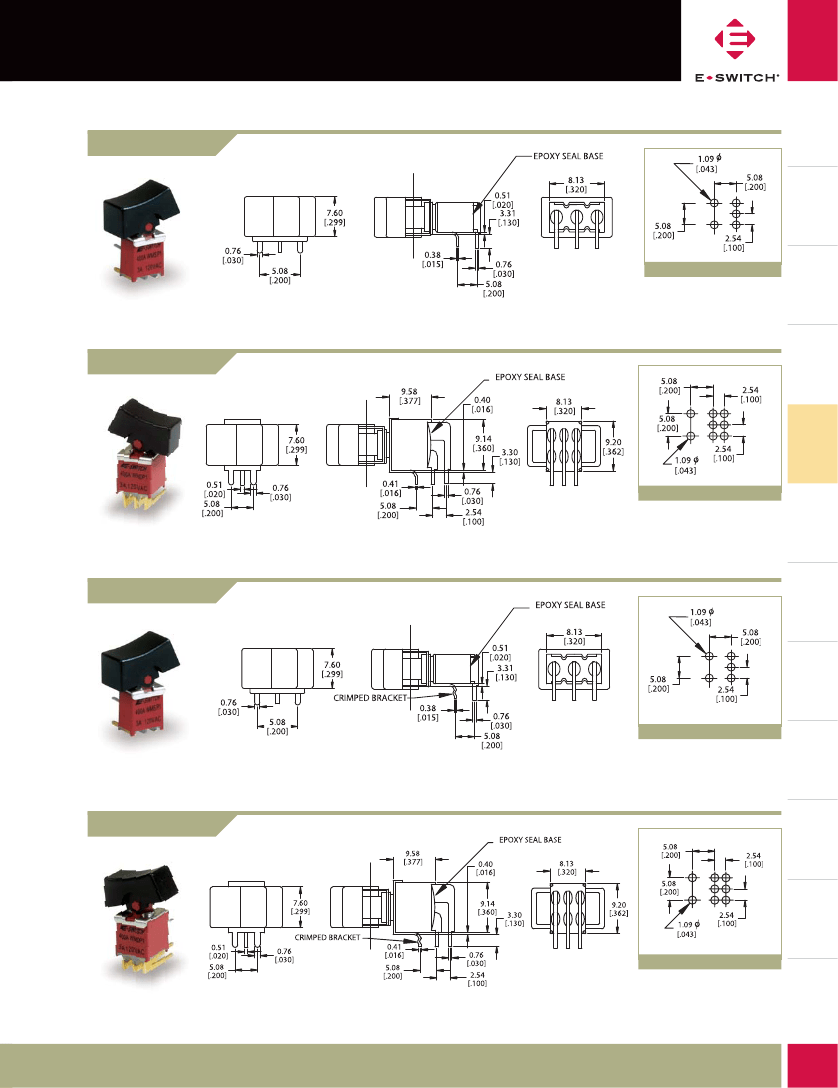

SERIES 400A SWITCHES

SPECIFICATIONS

Life Expectancy:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

30,000 make-and-break cycles at full load

10 mΩ typ. initial @ 2-4 V DC, 100 mA for both

silver and gold plated contacts

1,000 MΩ min

1,000 V RMS @ sea level

PUSHBUTTON

SWITCHES

NAVIGATION

SWITCHES

POS 3

(ON)

2-1

CAP

OPTIONS

SCHEMATIC

DETECTOR

SWITCHES

ROTARY

SWITCHES

KEYLOCK

SWITCHES

DIP

SWITCHES

Specifications subject to change without notice.

Contact Rating:

See contact material options

Operating Temperature: -30° C to 85° C

MATERIALS

TOGGLE

SWITCHES

SNAP-ACTION

SWITCHES

SLIDE

SWITCHES

CONTACT

MATERIAL

SEAL

ROCKER

SWITCHES

Housing:

Actuator:

Glass filled nylon, flame retardant, heat stabilized

(UL 94-V0)

Nylon, black std. (UL94-HB)

Internal O-Ring

Brass or steel, tin plated

Nylon (UL94-HB)

FEATURES & BENEFITS

Variety of switching functions

Sub-miniature

Sealed to IP67

APPLICATIONS/MARKETS

Telecommunications

Instrumentation

Test equipment

Networking

Computer peripherals

Actuator Seal:

Switch Support:

Actuator Pivot &

Mounting Bracket:

Contacts / Terminals:

Terminal Seal:

Actuator Pivot Retainer: Stainless steel

Silver or gold plated copper alloy

Epoxy

HOW TO ORDER

SERIES

MODEL NO.

ACTUATOR

COLOR

TERMINATION

400A

WMSP1

WMSP2

WMSP3

WMSP4

WMSP5

WMDP1

WMDP2

WMDP3

R1 = Std.

BLK =Black

WHT=White

RED =Red

VS2

M61

M71

VS21

Q = Silver

R = Gold

E = Epoxy

Sealed at

Base of

Terminal

Example Ordering Number

400A_ WMSP3_ R1_ BLK_ M1_ Q

SPDT

POS 1

Model No.

WMSP-1

WMSP-2

WMSP-3

WMSP-4

WMSP-5

Term. Comm.

(ON)

2-3

POS 2

NONE

OFF

OPEN

( ) = Momentary

www.e-switch.com

info

e-switch.com

TACT

SWITCHES

ROCKER SWITCHES - PROCESS SEALED SUB-MINIATURE

▲
