Please refer to the M5600_U5600 Installation Manual and M5600_U5600 Software Manual.
Note:
Communication is max 65 feet
TE CONNECTIVITY SENSORS
/// U5600
09/2017
Page 3
U5600

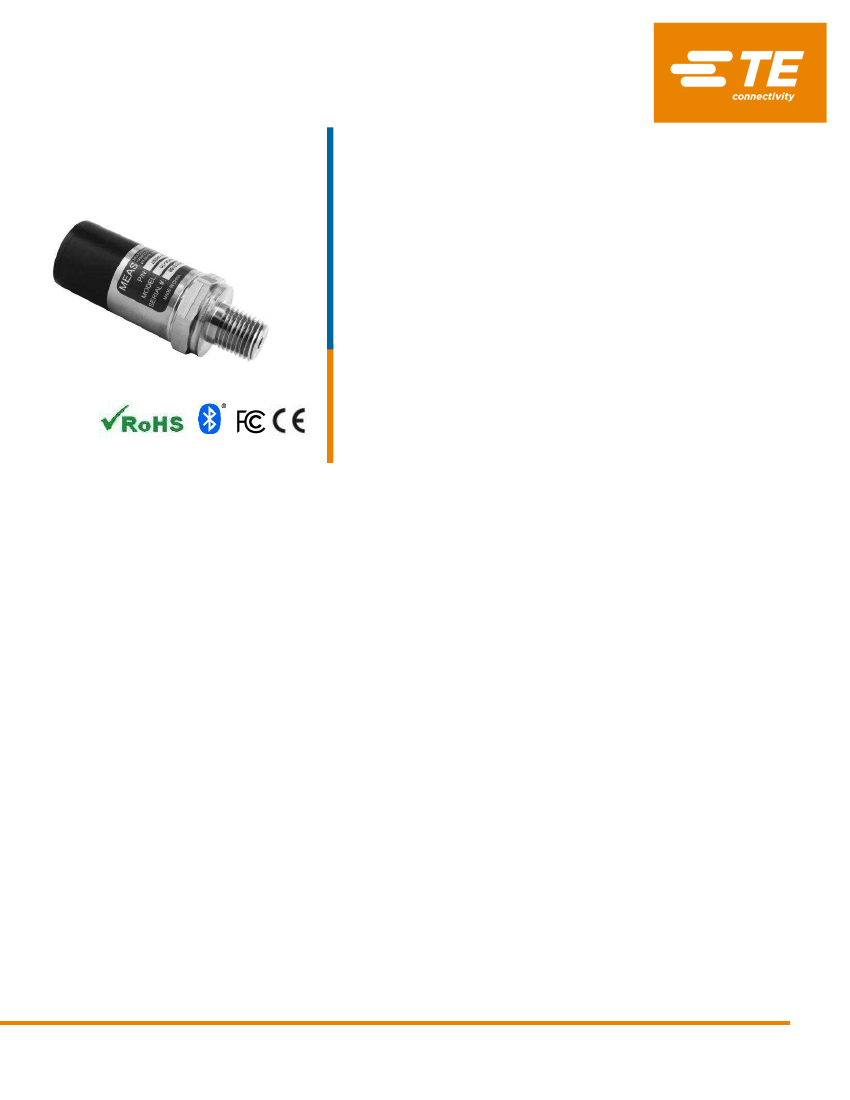

Wireless Pressure Transducer
Ordering Information
U5600 - 0 1 0 0 0 0 - 100P G
Cleaning
0
No Selection
1
With Snubber
Battery
0
Without Battery
1
CR2032
2
CR2050
Pressure Reference
G
Gauge
S
Sealed
A
Absolute
C
Compound
Label Type
0
Adhesive Label
1
Laser Marking
Port Type Selection
Code
2
3
4
5
6
B
E
F
P
N
Q
S
U
W
G
Port Type
1/4”-19
BSPP
G3/8 JIS B2351
7/16-20UNF Male SAE
J1926-2 Straight Thread
O-Ring BUNA-N 90SH-904
1/4-18 NPT
1/8-27 NPT
G1/4 JIS B2351
1/4-19 BSPT
1/4-19 BSPP Female*
7/16-20UNF Female SAE
J513 Straight Thread w/
Integral Valve Depressor
7/16-20UNF Female SAE
J513 Straight Thread
M10x1.0mm ISO 6149-2
M12x1.5mm ISO 6149-2
G1/4 DIN 3852 Form E
Gasket DIN3869-14 NBR
M20x1.5mm
ISO 6149-2
M14x1.5mm
ISO 6149-2
Dim B
0.472[11.94]
0.540[13.72]
0.433[11.0]
0.600[15.24]
0.390[9.91]
0.472[11.94]
0.500[12.7]
0.771[19.58]
0.687[17.5]
0.687[17.5]
0.374[9.5]
0.433[11.0]
0.472[11.94]
0.551[14.0]
0.433[11.0]
Dim C
Ref.
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
0.366[9.3]
Pressure Range
psi
bar
std
std
005P
.35B
015P
001B
030P
002B
050P
3.5B
100P
200P
300P
500P
01KP
03KP
05KP
10KP
007B
014B
020B
035B
070B
200B
350B
700B
Compound Pressure Range is -14.7 to xxxpsig or -1 to xxxbarg
(e.g. 200PC: -14.7 to 200psig, 020BC: -1 to 20barg)
