242A15870X: DescriptionD Subminiature Connector, 50 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

242A15870X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	242A15870X	-	-	View	Buy Now

242A15870X Overview

D Subminiature Connector, 50 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug

242A15870X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.509 inch
body length	2.65 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VDC V
Durability	50 Cycles
Filter function	YES
maximum insertion force	3.336 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	242A1
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.205 inch
Termination type	SOLDER LUG
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	2.224 N
Base Number Matches	1

Preview

Download Datasheet

View All

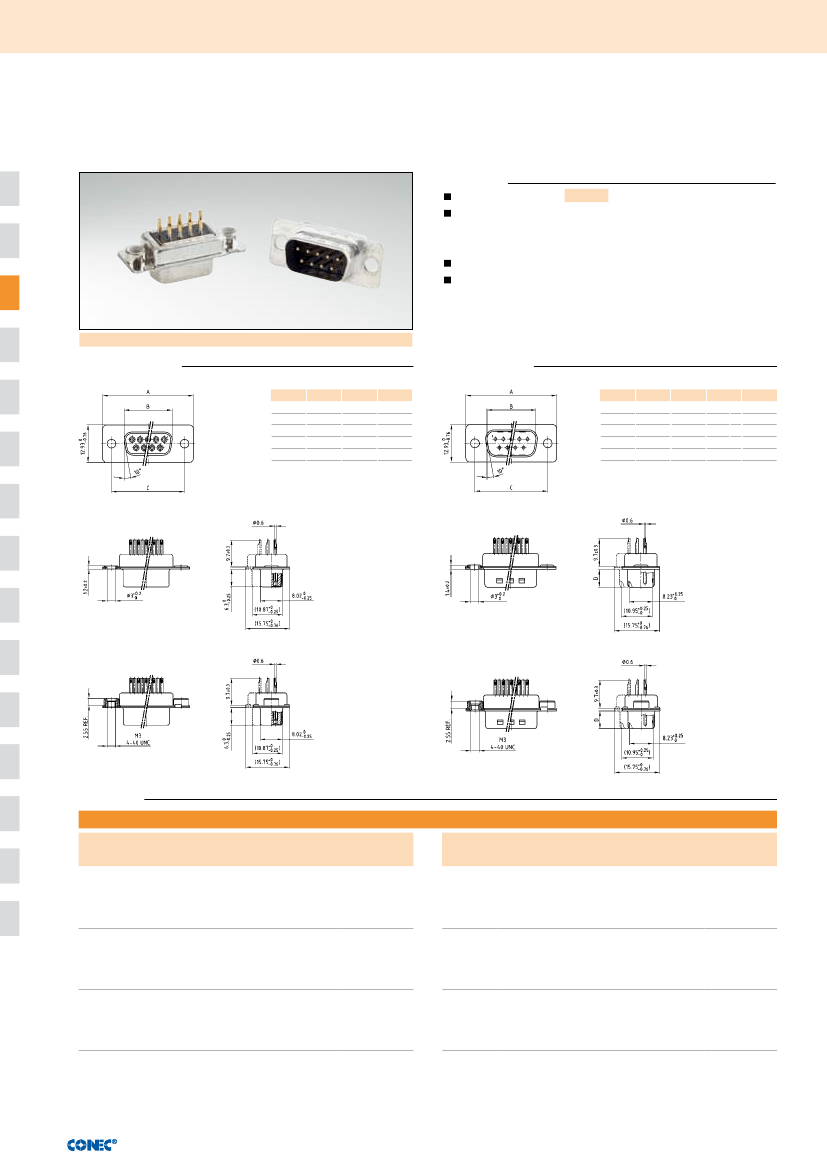

Filt e r D- S UB Co n nec to rs

C-Filter D-SUB Standard

Solder cup – Precision machined contacts – For wire size AWG 26

Description

Suitable for wire size AWG 26

Mounting styles:

- with through-hole, Ø .118”/3 mm

- with 4-40 UNC or M3 threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

09

15

25

37

50

Plug connector

A

-0.76

31.19

39.52

53.42

69.70

67.31

B

-0.25

16.46

24.79

38.50

54.96

52.55

C

25.00

33.30

47.04

63.50

61.10

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

+ 0.14

- 0.11

No. of pos.

09

15

25

37

50

A

-0.76

31.19

39.52

53.42

69.70

67.31

B

+0.25

16.79

25.12

38.84

55.30

52.68

C

25.00

33.30

47.04

63.50

61.10

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

+ 0.14

- 0.11

D

-0.3

6.12

5.99

Mounting style: Through-hole

Mounting style: Threaded insert

50 pos. = Dim. in (_ _)

Order data

Capacitance 180 pF

Socket connector

No. of pos. Mounting style

09

15

25

37

50

09

15

25

37

50

09

15

25

37

50

Through-hole

4-40 UNC Threaded insert

M3 Threaded insert

Plug connector

Part Number

242 A 15910 X

242 A 15920 X

242 A 15930 X

242 A 15940 X

242 A 15950 X

242 A 15960 X

242 A 15970 X

242 A 15980 X

242 A 15990 X

242 A 16000 X

242 A 16010 X

242 A 16020 X

242 A 16030 X

242 A 16040 X

242 A 16050 X

No. of pos. Mounting style

09

15

25

37

50

09

15

25

37

50

09

15

25

37

50

Through-hole

4-40 UNC Threaded insert

M3 Threaded insert

Part Number

241 A 18530

241 A 18540

241 A 18550

241 A 18560

241 A 18570

241 A 18580

241 A 18590

241 A 18600

241 A 18610

241 A 18620

241 A 18630

241 A 18640

241 A 18650

241 A 18660

241 A 18670

X

3| 22
