46KR422050M1MP: DescriptionFilm Capacitor, Polypropylene, 630V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，12 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

46KR422050M1MP Overview

Film Capacitor, Polypropylene, 630V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT

46KR422050M1MP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 275
capacitance	2.2 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	28 mm
length	32 mm
Manufacturer's serial number	R46
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	20%
Rated (AC) voltage (URac)	275 V
Rated (DC) voltage (URdc)	630 V
Guideline	IEC60384-14
series	R46+R
surface mount	NO
Terminal pitch	27.5 mm
Terminal shape	WIRE
width	14 mm
Base Number Matches	1

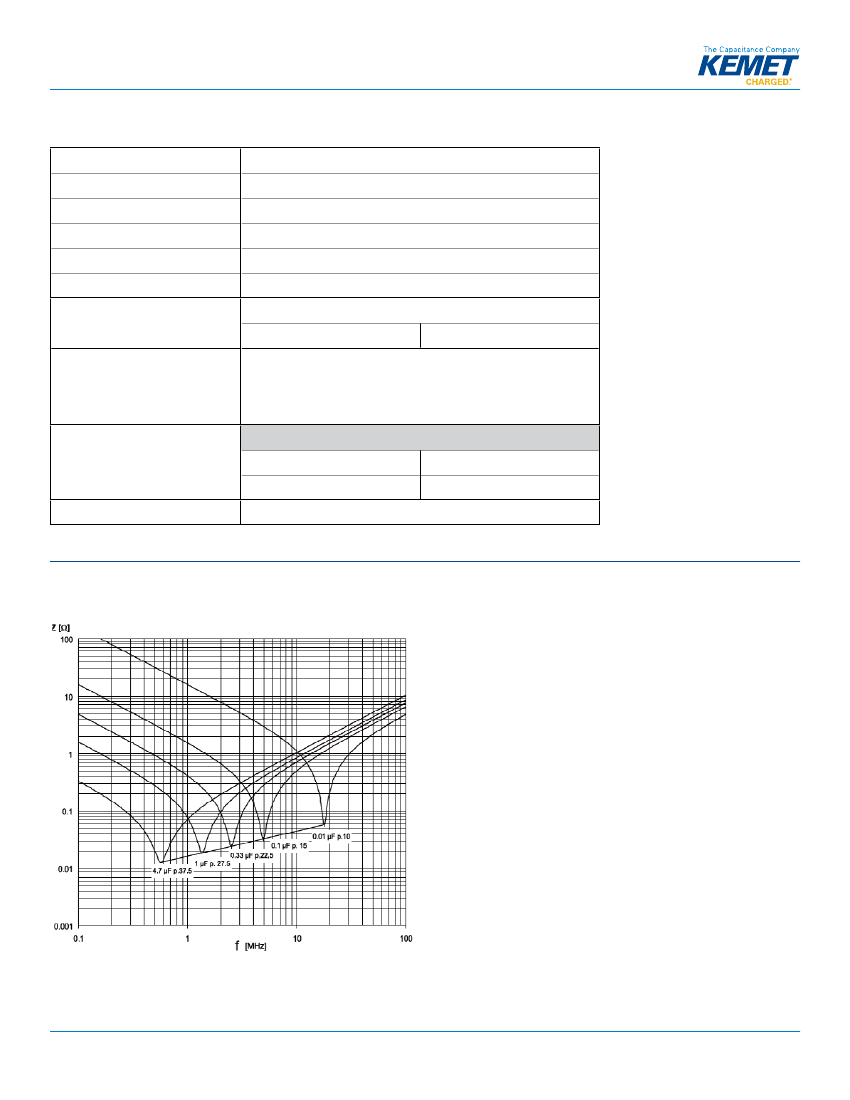

Preview

Download Datasheet

View All

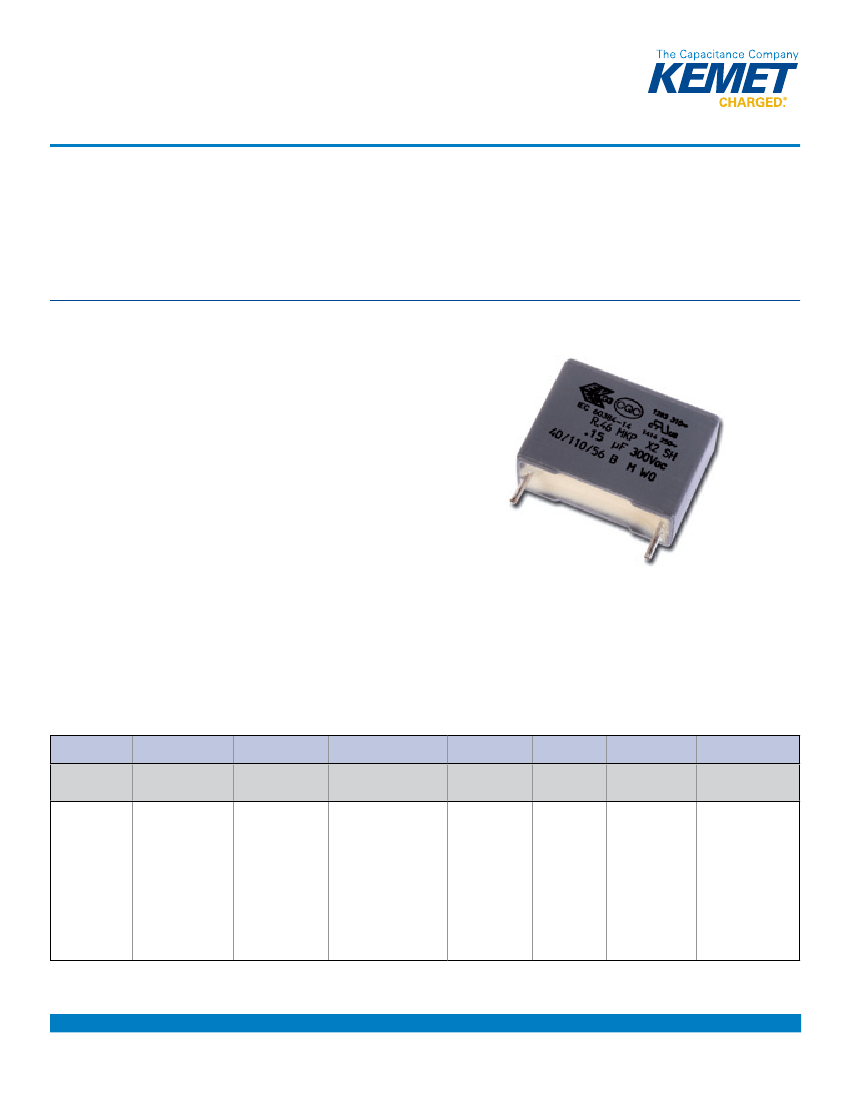

AC Line EMI Suppression and RC Networks

R46 + R Series Metallized Polypropylene Film, Class X2,

275 VAC/300 VAC with Internal Discharge Resistor

Overview

The R46 + R Series is constructed of metallized polypropylene

film encapsulated with self-extinguishing resin in a box of

material meeting the requirements of UL 94 V–0.

Applications

Typical applications include worldwide use in electromagnetic

interference suppression in all X2 and across-the-line

applications. Not for use in series with the mains.

Benefits

•

Approvals: ENEC, UL, cUL

Rated voltage: 275/300 VAC 50/60 Hz

Capacitance range: 0.22 – 10 µF

Lead spacing: 22.5 – 37.5 mm

Capacitance tolerance: ±20%, ±10%, ±5% on request

Climatic category: 40/110/56, IEC 60068–1

Tape and reel in accordance with IEC 60286–2

RoHS Compliant and lead-free terminations

Operating temperature range of -40˚C to +110˚C

100% screening factory test at 2,200 VDC/1,500 VAC

Part Number System

R46

Series

X2, Metallized

Polypropylene

3220

Lead and

Packaging Code

See Ordering

Options Table

Internal Use

01, M1, M2

(Standard)

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Value of Discharge

Resistor

470 kΩ = E

680 kΩ = F

1 MΩ = G

1.2 MΩ = L

1.5 MΩ = N

2.2 MΩ = P

3.3 MΩ = Q

4.7 MΩ = S

6.8 MΩ = T

10 MΩ = V

Rated Voltage (VAC) Lead Spacing (mm) Capacitance Code (pF)

K = 275

N = 22.5

R = 27.5

W = 37.5

Digits 2 – 4 indicate the

first three digits of the

capacitance value.

First digit indicates the

number of zeros to be

added.

One world. One KEMET

F3007_R46-R_X2_275-310 • 4/4/2013
