CN015RZ-2313-1

Description
push-in / push-out, low profile
File Size68KB,1 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet Compare View All

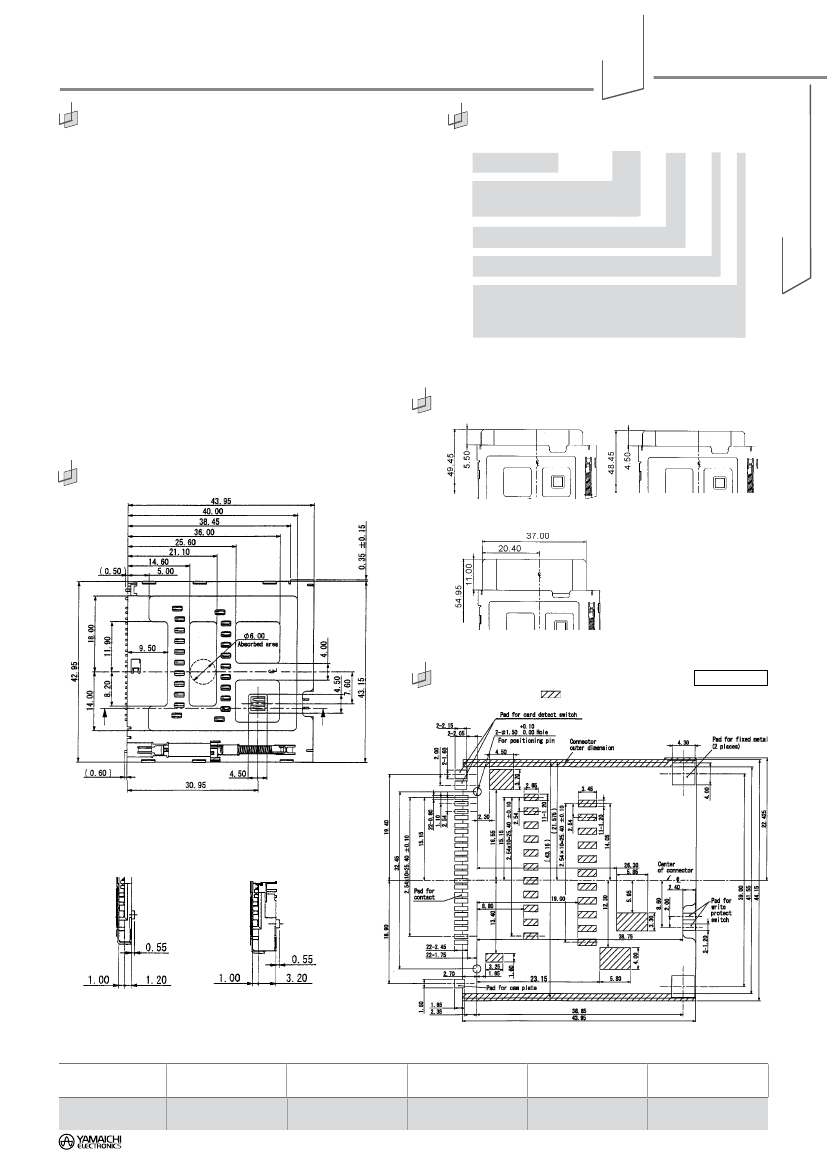

CN015RZ-2313-1 Overview

push-in / push-out, low profile

Series CN015 - Type 23
Push-in / Push-out, Low Profile
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Voltage Rating:
Current Rating:
Operating Temp. Range:
1,000MΩ min. at 500V DC
500V AC rms for 1 minute
40mΩ max. (initial resistance)
250V AC
0.5A
–20°C to +60°C
Card
Connectors
Part Number
(Details)
Series No.
RZ = 3.3V for
SmartMedia Card (3.3V)
Type 23
Part Number Identification: R-Type
PCB Mounting: SMT Fixing Height of Stand-off:
0 = 0.0mm
1 = 2.0mm
Materials and Finish
Contact:
Insulator Base:
Cover:
PB / Ni-Au
PA (glass filled)
Stainless Steel
Features
Low profile (2.75mm)
Smooth insertion/extraction function by Push-in / Push-out
of SM Card
Stand-off type available, to mount components under
the body of CN015
Acceptable for automation mounting machine
SMT type (suitable for reflow process)
Card Insertion Details
Type 23 with SMT Metal Pads (3.3V)
Locked postion
Pushed postion
Ejected postion
Recommended PCB Layout
Note:
Wiring pattern (
to CN015R-2313-1
Top View
) prohibited area this does not apply
Pin Height Details
CN015RZ-2313-0
CN015RZ-2313-1
Note: The
Switch should be open when card is not inserted,and should be closed when card is inserted
Function Table
Part Number
CN015RZ-2313-0
CN015RZ-2313-1
Voltage of
SmartMedia
3.3V
Ejector
Push-in/Push-Out
Mis-insertion
Protection
Yes
Sequential
Contact
Yes
Write Protection
Switch
Yes
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
SmartMedia - SSFDC
CN015
RZ - 23 1 3 - *

CN015RZ-2313-1 Related Products

CN015RZ-2313-1 CN015RZ-2313-0
Description push-in / push-out, low profile push-in / push-out, low profile
