Data Sheet
March 2010
Compact Power Line

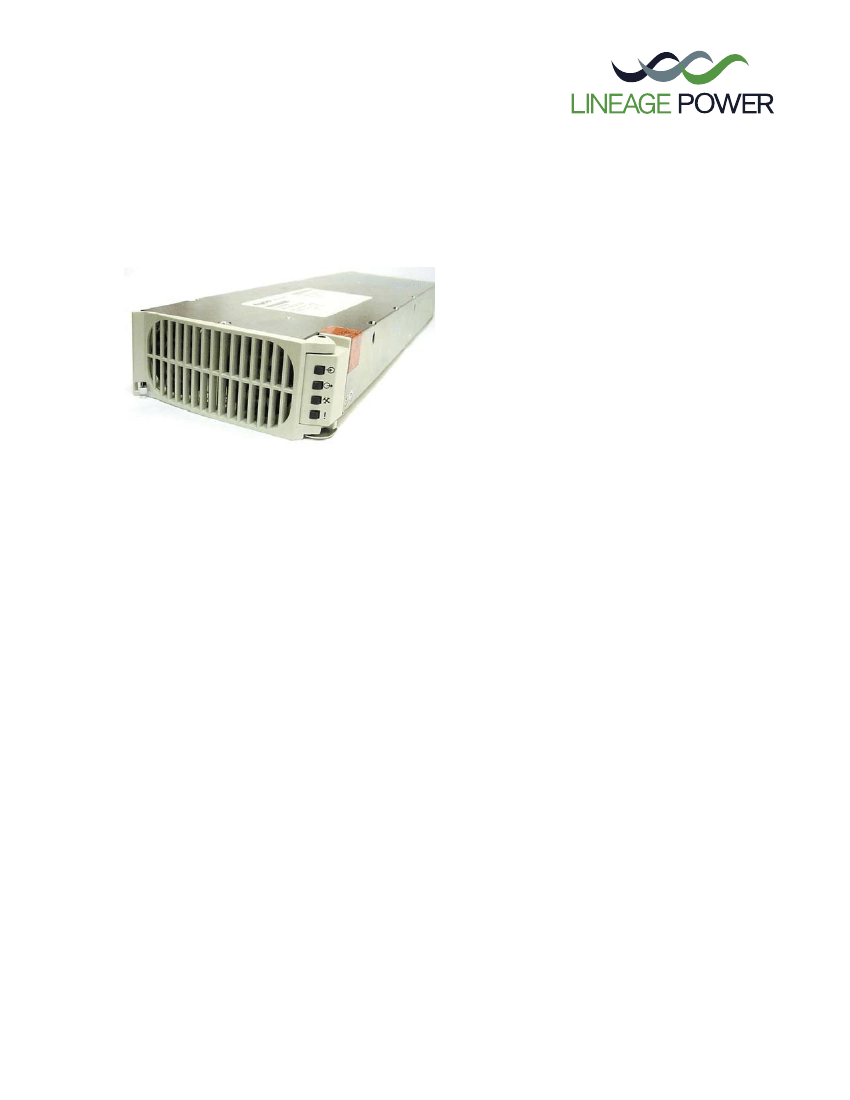

CP2000DC54-PE DC/DC Converter
Input: -40 to -72 Vdc; Outputs: ±54 Vdc at 2000W; 5 Vdc at 4W
Features
Compact 1-RU form factor providing 22 W/in3
Input Current < 60A at 40 Vdc input
Programmable output voltage from 44V to 58
Applications
48Vdc distributed power architectures
Power over Ethernet
Routers/Switches
VoIP/Soft Switches
LAN/WAN/MAN applications
File servers
Indoor wireless
Telecommunications equipment
Enterprise Networks
SAN/NAS/iSCSI applications
Advanced workstations
Vdc,
Output defaulted to 54V
PMBus compliant dual I
2
C serial bus
communications
Designed to IEEE802.3af Compliance, 2250
output*** isolation to chassis/signals for POE
applications. (see ordering info)
DC Output over-voltage and over-current
protection
DC Input over-voltage and under-voltage
protection
Over-temperature warning and protection
Redundant, parallel operation with active load
sharing and redundant +5V Aux power
Remote ON/OFF
Hot insertion/removal (hot plug)
Four front panel LED indicators
UL* Recognized to UL60950-1, CAN/ CSA
†
C22.2
No. 60950-1, and VDE
‡
0805-1 Licensed to
IEC60950-1
CE mark meets 2006/95/EC directive
§
Internal variable-speed fan control
RoHS 5 compliant
The CP2000DC54-PE DC/DC Converter, also called a Power Entry Module (PEM)
in the Compact
Power Line platform is specifically designed to operate as an integral part of a complete distributed power
system. The high-density, front-to-back airflow PEM is designed for minimal space utilization and is highly
expandable for future growth. It is provided with many features including PoE isolation, and dual-
redundant I
2
C communications busses that allow it to be used in a broad range of applications. The
flexible feature set makes this Power Entry Module an excellent choice for applications requiring modular
dc-to-dc bulk intermediate voltages, such as in distributed power.
UL is a registered trademark of Underwriters Laboratories, Inc.
CSA is a registered trademark of Canadian Standards Association.
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
This product is intended for integration into end-user equipment. All the required procedures for CE marking of end-user
equipment should be followed. (The CE mark is placed on selected products.)
** ISO is a registered trademark of the International Organization of Standards.
*
†
‡
§
Data Sheet
CP2000DC54-PE DC/DC Converter
Compact Power Line
Specifications
Input
Parameter
Operating Voltage
Low Input Shutdown of Main
output
Input Turn-ON of both
Outputs
Reverse Input Voltage
Idling Power
Input Current
Cold Start Inrush Current
Efficiency
Holdup Time
Ride Through
Input Capacitance
Main Output
Parameter
Maximum Output Power
Output Voltage Setpoint
Voltage Regulation
Set Point at 50% FL
Set Point Tolerance
Set Point Regulation
Droop Regulation
Droop Accuracy
Output Voltage Range
Output Current
Reverse (sink) output current
Active Current Share
Passive Current Share
Output Ripple (5 to 20MHz)
RMS
Peak-to-Peak
Psophometric Noise
0
-5
-15
54
54
-0.5
-1
1
-5
44
0.1
5
58
37
0.5
5
+15
250
500
2
5,000
0.5
1
Min
Typ
Max
2000
Units
W
Vdc
Vdc
%
%
Vdc
%
Vdc
A
A
%FL
%FL
mVrms
mVpk-pk
mVrms
F
Notes
At voltages > 54Vdc
Output floats with respect to frame ground.
Resets to factory setting if power is removed
All conditions (temp, line, drift)
Linear from 1 to 39 A.
All conditions (temp, line, drift)
Set either by I
2
C, or analog margining.
At 54Vdc. Below 0.1A the module meets its
regulation requirements.
Isolation function provided
Single-wire connection. Loads > 25%FL
Between modules without the single wire
connection. Loads > 25%FL
Measured with 20MHz bandwidth under any
condition of loading. Minimum load is 1A.
Phosphomeric noise measured with battery
inserted at the input terminations.
External capacitance can be increased but
the power supply will not meet its turn-ON
rise time requirement.
88
82
8
8
25
90
84
Output OFF
Output ON
Min
-40
-38.5
-43
-39
-43.5
Typ
Max
-72
-39.5
-44
35
60
60
60
Units
Vdc
Vdc
Vdc
Notes
The module shall not be damaged
W
Adc
Adc
%
ms
ms
F
5Vdc output at no-load
Both outputs at no-load
At input voltages > 40Vdc
Measured at 25C for all line conditions. Does
not include X-capacitor charging spike
From 75% to 100% of full load
For loads > 25% of full load
Minimum Vin = 48Vdc, output at ½ Full Load,
output can droop down to -40Vdc
External Bulk Load Capacitance
Lineage Power
2
Data Sheet
Compact Power Line
CP2000DC54-PE DC/DC Converter
Specifications (continued)
Output (continued)
Parameter
Min
Typ
Max
Units
Notes
Turn-On
Delay
1
Rise Time
Overshoot
Restart Shutdown Delay
Load Step Response
I
V
Response Time
Overload
2
Current Limit
Shutdown
38.9
43
39
Adc
Vdc
50
2.0
2
%FL
Vdc
ms
5
500
5
20
s
ms
%
S
Monotonic Turn_On after detection of valid
DC input voltage. Measured from 30% to
100% of Vnom.
Shutdown is delayed during a re-start in order
to guarantee restart of multiple paralleled
modules.
I/t
slew rate 1A/µs.
Settling time to within regulation
requirements.
Fold-down.
Default state – hiccup mode
System Start-up A 20 second shutdown delay is implemented to allow modules to be plugged in
one at a time. During this time fold-down occurs but the module will not shut
down below 39Vdc.
Over-voltage
Delayed
Instantaneous
Latchoff
Over-temperature
Warning
Shutdown
Auto-recoverable
20
60
65
Vdc
Vdc
200msec delayed shutdown implemented.
Latched shutdown without hiccup.
Three restart attempts are implemented within a one minute window prior to a
latched shutdown when Vout < 65Vdc. Beyond 1 minute the counter restarts
5
°C
°C
Implemented prior to commencement of an
OT shutdown
Below the maximum rating of the device
being protected
Temperature hysteresis of approximately 10°C provided between shutdown and
restart.
Auxiliary Output
Parameter
ON when the input voltage is
Output Voltage Setpoint
Output Current
Overall Regulation
Ripple and Noise
0.005
-5
50
Min
-26
5.2
0.75
+5
100
25
7
110
175
Typ
Max
-72
Units
Vdc
Vdc
A
%
mVpk-pk
mVrms
Vdc
%FL
Isolated from the main output to meet
POE requirements. 50mA dedicated for
powering adjacent PEMs during a fault.
700mA available for external use.
20MHz bandwidth. Measured across a
1F tantalum and a 0.1F ceramic
capacitor
Notes
Over-voltage Clamp
Over-current Limit
1
2
Below -5
C the rise time is approximately 5 minutes to protect bulk capacitors in the unit
Hiccup performance attempts automatic recovery from an overload shutdown with approximately a 90% off-time duty cycle. The
duty cycle varies periodically in order to guarantee multi-module recovery synchronization. Latchoff can be chosen via software
instead of the default hiccup. Recovery from a latchoff requires ENABLING, or software commanding OFF followed by an ON
after a 2 second delay.
Lineage Power
3
Data Sheet
Compact Power Line
CP2000DC54-PE DC/DC Converter
Specifications (continued)
Physical
Length (in./mm)
Width (in./mm)
Height (in./mm)
Weight (lb/kg)
13.85 / 351.8
4.00 / 101.6
1.66 / 42.2
4.6 / 2.1
Environmental
Parameter
Ambient Temperature
Operating
Ambient Derating
2
Power Derating
Storage Temperature
Humidity
Shock and Vibration
Operational Test
Test Levels
Drop and Tip Over
Earthquake Rating
Acoustic Noise
Radiated Emissions
ESD
Radiated Immunity
Differential mode surge
Differential mode surge
transient
Common mode surge
(1.2/50s pulse)
Conducted Immunity
Reliability (calculated)
Isolation
Input-Chassis/Signals
Input-Output/Signals
Output-Chassis/Signals
Main-Aux Outputs
Service Life
1700
2250
2250
2250
10
Per EN60950.
Vdc
Per IEEE802.3af.
Years
25°C ambient, full load excluding fans.
3
Min
-5
2
Typ
Max
45
Units
°C
°C
%/°C
°C
%
Notes
Air inlet from sea level to 5,000 feet.
Per 1,000 feet above 5,000 feet.
Up to 55°C
Relative humidity, non-condensing
IEC 68-2
IEC 721-3-2
IEC 68-2-31
1
1
-40
5
85
95
4
55
Zone
dBA
3
Per Telcordia GR-63-CORE, all floors, when
installed in CP Shelf.
Noise is proportional to fan speed, load and
ambient temperature.
FCC and CISPR22 (EN55022) - Class A
Conducted Emissions - dc
Telcordia GR-1089-CORE and CISPR22 (EN55022) - Class A
Error free per EN/IEC 61000-4-2 Level 4 (8 kV contact discharge, 15 kV air discharge).
Error free per EN/IEC 61000-4-3 Level 3 (10 V/m).
100
1000
1000
Vdc
Vdc
No errors. IEEE C62.41 defined pulse transient
Vdc
Error free per EN/IEC 61000-4-6 Level 3 (10Vrms).
400,000
Hours
At ambient of 25°C at full load per Telcordia SR-
332, Reliability Prediction for Electronic
Equipment, Method I Case III.
ANSI T1.315, No errors
2. Designed to start at an ambient as low as -40°C, but may not meet operational limits until above -5°C.
3. Radiated emissions compliance was met using a Lineage Power shelf. This shelf includes output common and differential
mode capacitors that assist in meeting compliance.
Lineage Power
4
Data Sheet
Compact Power Line
CP2000DC54-PE DC/DC Converter
Status and Control
The PEM provides two means for monitor/control:
analog or I
2
C.
Details of analog controls are provided in this data
sheet under Signal Definitions. Lineage Power will
provide separate application notes on the I
2
C
protocol for users to interface to the CPL PEMs.
Contact your local Lineage Power representative
for details.
Software commanded margining overrides the
hardware set point indefinitely or until the default
setting is reinstated for example if input power and
bias power have been removed from the module.
Module Present Signal:
The power supply alerts
the system when it is properly plugged in via a
500Ω resistor in series between this signal and
Logic GRD.
Protocol Select:
This pin must remain a no-
connect. Do not connect to either output or
Logic_GRD.
Enable:
On/Off control when I
2
C communications
are utilized as configured by the Protocol pin. This
pin must be pulled low to turn
ON
the power
supply. The power supply will turn
OFF
if either the
Enable
or the
ON/OFF
pin is released. This signal
is referenced to Logic_GRD.
ON/OFF:
This is a short pin utilized for hot-plug
applications to ensure that the power supply turns
OFF
before the power pins are disengaged. It also
ensures that the power supply turns
ON
only after
the power pins have been engaged. Must be
connected to V_OUT (-DC).
Hot Plug
When rapidly extracting and reinserting modules
care should be taken to allow for discharging the
internal bias supply so that a predictable restart
could be achieved. The way to ensure that the
circuit sufficiently discharges is to observe the
spinning of the fans after an extraction. The unit
should not be reinserted until the fans stop
spinning.
Without bleeding down internal bias the module
may remember its last assigned address and may
not configure itself properly if reinserted into
another slot.
Control Definitions
All signals are referenced to Logic_GRD unless
otherwise noted. See the Signal Definitions Table
at the end of this document for further description
of all the signals.
Output Signals
Power_OK:
This signal is HI when the main output
is present and goes LO when the main output is not
present.
I_limit:
This signal is HI when the main output is
not in current limit and goes LO when current limit
has activated.
Alert #:
I
2
C interrupt signal.
Fault:
This signal goes LO for any failure that
requires PEM replacement. Some of these faults
may be due to:
Fan failure
Over-temperature condition
Over-temperature shutdown
Over-voltage shutdown
Internal PEM Fault
Input Signals
Margining:
Set point of the PEM can be changed
via this input pin. Programming can be either a
voltage source or a resistance divider. The
margining pin is connected to 3.3Vdc via a 10kΩ
resistor inside the PEM. See graphs below.
-58
3.3Vdc
Output Setpoint (Vdc)
-46
-44
Vcontrol
Vprogram
0 0.1
An open circuit on this pin reverts the voltage level
back to the original setting.
Lineage Power
10k
5
京公网安备 11010802033920号
EEWORLD
