D
Description
Body
Socket
Insulation
Washer
Gasket
Crimp Ring
Material
Brass
BE CU
Teflon
PH Bronze
SI Rubber
Brass
Finish
Nickel
Gold
Teflon
Gold
Rubber
Nickel
D
SIDE VIEW
H0.311
(7.90)
Ø0.126 Ø0.177
(3.20) (4.50)
SOCKET
0.2x2x2 GROOVE
PIN CHUCK
Ø0.024
(0.60)
CRIMP RING
C
1/4-36UNF-2B
THREADS
0.276
(7.00)
0.656
(16.65)
0.240
(6.10)
Ø0.039 Ø0.049
(1.25)
(1.00)
Ø0.256
(6.50)
C
0.500
(12.70)
B
B

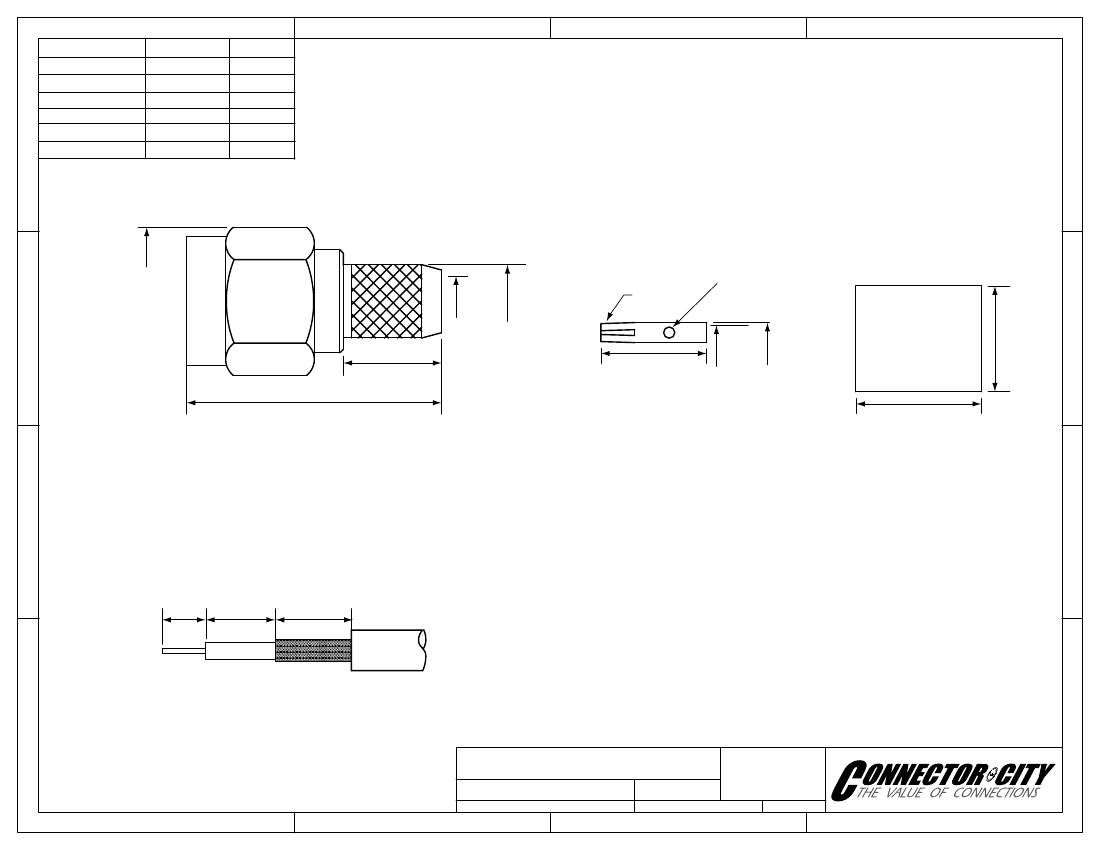

RECOMMENDED CABLE STRIPPING DIMENSIONS
0.118
(3.00)
0.079
(2.00)
0.276
(7.00)
CONREVSMA007-R58 ASSEMBLY INSTRUCTIONS
1.
2.
3.
Solder the socket to the center conductor.
Insert the socket, center conductor, and insulator into the body
until the top of the socket is even with the white insulation in the body.
Wrap the braid around the tail of the body and crimp the ring with a
hex crimp tool.
RG-58 Cable
A
Title
A
RP-SMA MALE CABLE END
CRIMP FOR RG58 CABLE
Revision:
1.0
Date:
6/1/2006
INCHES (mm)
Part No.
CONREVSMA007-R58
Dimensions:
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Sheet 1 of 1
1
2
3
4
