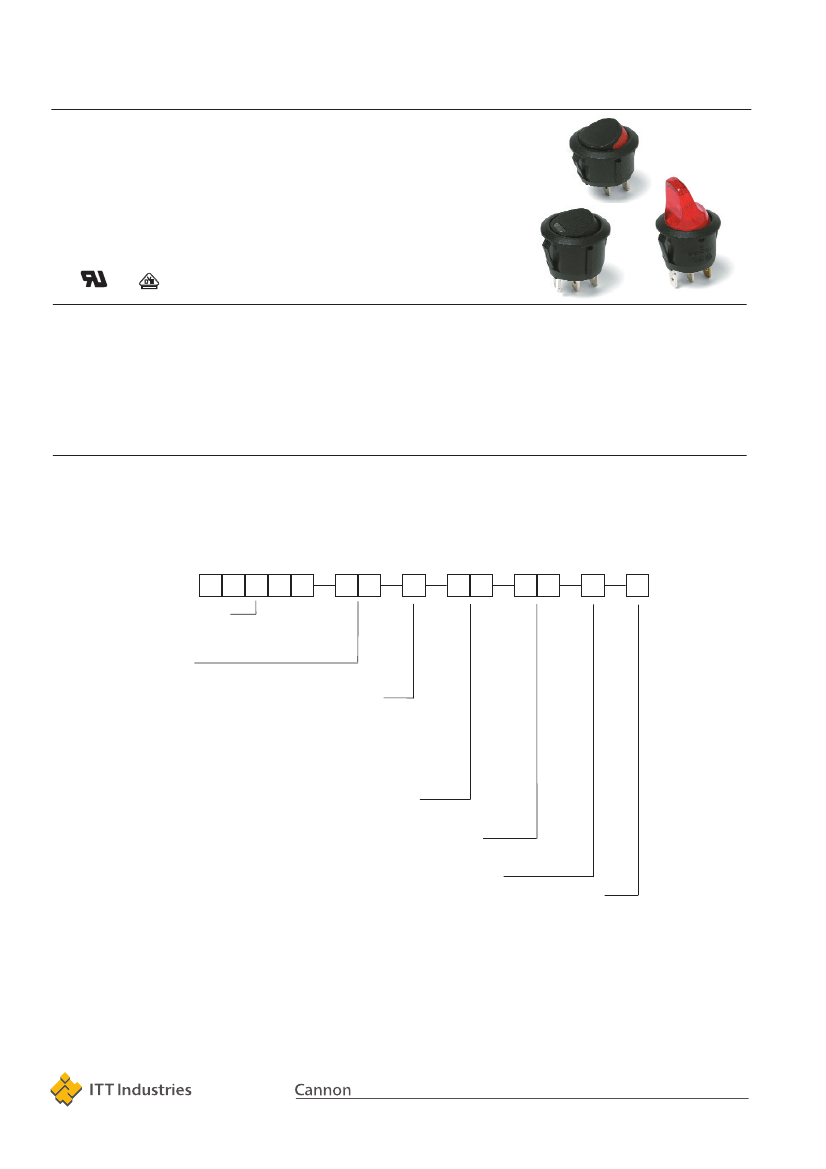

C&K CR Series
Round Single Pole Specialty Rocker Switches
Features/Benefits
•
Round actuator and body
•
Nice styling
•
Multiple illuminated versions
available
•
IP65 splash proof rubber
boot option
®C
US
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated AgSn02ln03.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Typical Applications
•
Appliances, small and large
•
Office equipment
•
Computers and peripherals
Specifications
CONTACT RATING:
UL: 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
VDE µ T85: 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages 8 thru 10. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CR101
SPDT On-None-On
CR102
SPST On-None-Off
Actuator
J1
Rocker
J2
*
Two-tone rocker
J3
Illuminated rocker
J4
Circle, illuminated rocker
J5
Oval, illuminated rocker
JN
Paddle, rocker
JP
Paddle, illuminated rocker
Actuator Color
2
(STD). Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
(STD.) Snap-in, black
S1
Snap-in, white
Termination
15
(STD.) .187” quick connect
Contact Rating
QF
(STD.) Silver
*
Refer to table on page 10 for actuator options
Lamp Rating
(NONE)
(STD.) No lamp
6
LED
7
125 VAC neon
8
250 VAC neon
Dimensions are shown: Inch (mm)
Dimensions subject to change
8
www.ittcannon.com
C&K CR Series
Round Single Pole Specialty Rocker Switches

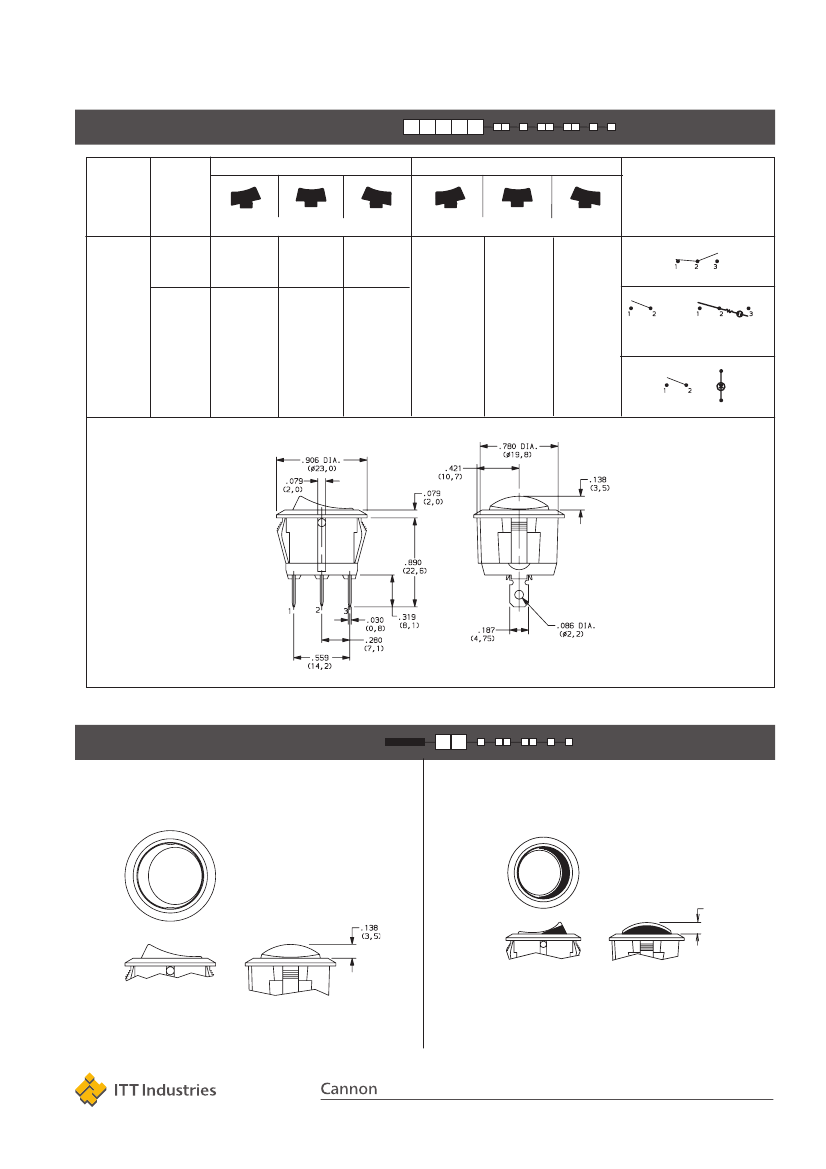

SWITCH FUNCTION
SWITCH FUNCTION
CONNECTED TERMINALS
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
CR101
ON
NONE
ON
N/A
OR
For 7 & 8
Illuminated Versions
ON
NONE
OFF
2-3
2-1
+
CR102
SP
–
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
.138
(3,5)
NOTE:
J3 actuator available with 7 & 8 lamp ratings and
CR102 switch function only.
Dimensions are shown: Inch (mm)
Dimensions subject to change
9
www.ittcannon.com
C&K CR Series
Round Single Pole Specialty Rocker Switches

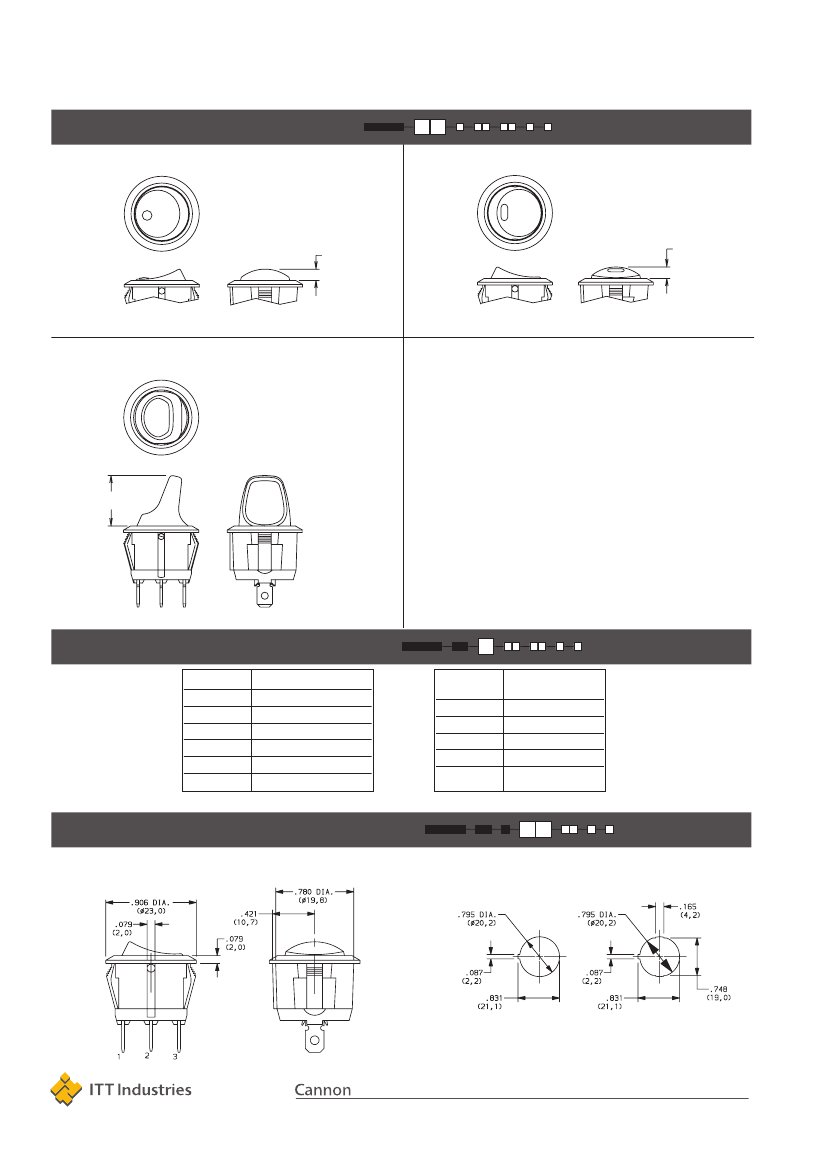

ACTUATOR
J4
CIRCLE, ILLUMINATED ROCKER
J5
OVAL, ILLUMINATED ROCKER
.138
(3,5)
.138
(3,5)
NOTE:
Available with CR102 switch function and
7 & 8 lamp ratings only.
NOTE:
Available with CR102 switch function and
6 lamp rating only.
JN
PADDLE, ROCKER
JP
PADDLE, ILLUMINATED ROCKER
.610
(15,5)
NOTE:
JP actuator available with CR102 switch function and 7 & 8 lamp ratings only.
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
(STD.) BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
OPTION
CODE
2
1
3
R
A
G
ACTUATOR
COLOR
TOP
BOTTOM
WHITE
WHITE
RED
BLACK
BLACK
RED
BLACK
WHITE
WHTE
RED
1
2
3
4
5
J2 actuator only
MOUNTING STYLE/COLOR
S2
S1
(STD.) SNAP-IN, BLACK
SNAP-IN, WHITE
PANEL MOUNTING
PANEL THICKNESS:
0.079-0.118 (2,0-3,0)
PANEL THICKNESS:
0.028-0.118 (0,7-3,0)
Dimensions are shown: Inch (mm)
Dimensions subject to change
10
www.ittcannon.com
C&K CR Series
Round Single Pole Specialty Rocker Switches
TERMINATION
15
(STD.) .187” QUICK CONNECT
CONTACT MATERIAL
OPTION
CODE
CONTACT AND TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 10 AMPS @ 250 VAC (
®C
US
)
10 AMPS @ 125 VAC; 6 AMPS @ 250 VAC (VDE) µ T85
QF
(STD.)
LAMP RATING
(NONE)
(STD.) NO LAMP
6
LED RATING @ 10 mA Vf=1.85V
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
NOTE:
Lamp rating for J3 actuator option.
ACCESSORIES
377C00000
IP65 SPLASH PROOF RUBBER BOOT
.756 DIA.
(19,2)
.960 DIA.
(24,4)
.307
(7,8)
.129
(3,28)
Dimensions are shown: Inch (mm)
Dimensions subject to change
11
www.ittcannon.com
