CUDD16-02A: Descriptionsurface mount ultrafast recovery rectifiers dual, common anode 16 amp, 200 thru 800 volts; CategoryDiscrete semiconductor diode; File Size111KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CUDD16-02A Overview

surface mount ultrafast recovery rectifiers dual, common anode 16 amp, 200 thru 800 volts

CUDD16-02A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor

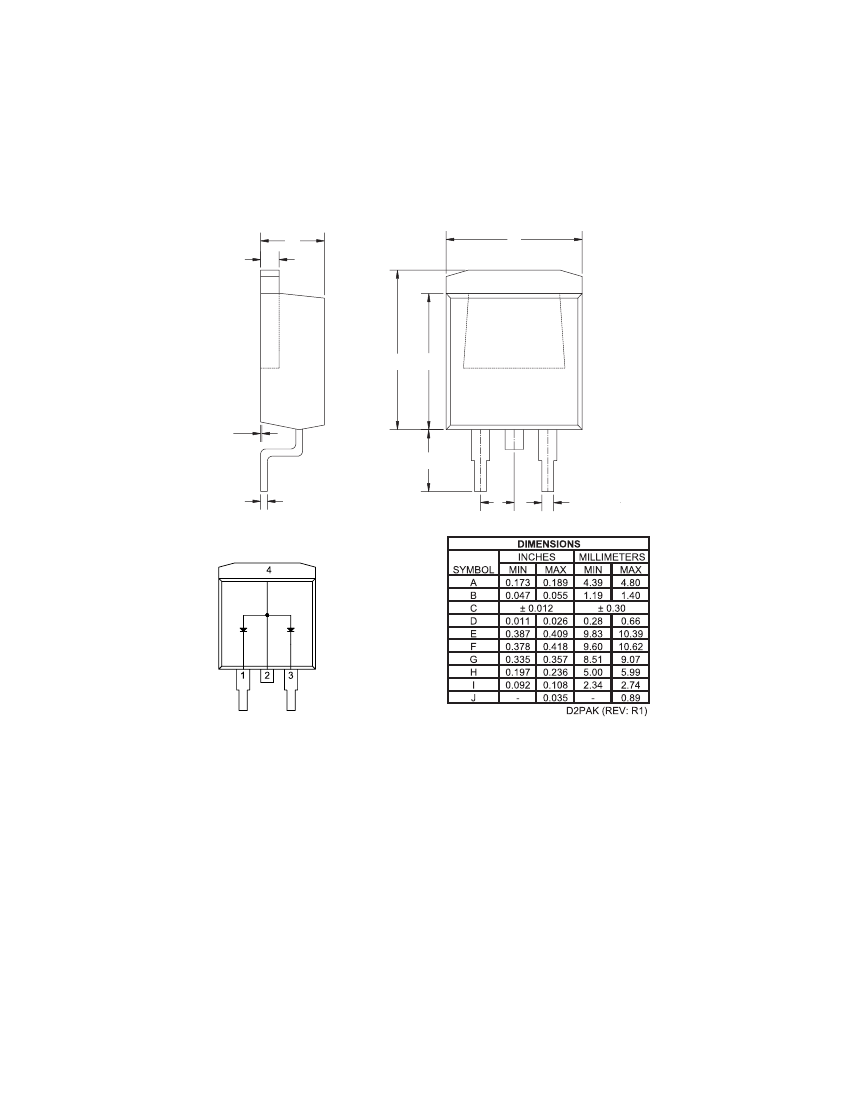

Parts packaging code	TO-263
package instruction	D2PAK-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	HIGH VOLTAGE ULTRA FAST RECOVERY
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.895 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Maximum non-repetitive peak forward current	125 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	16 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

CUDD16-02A

CUDD16-04A

CUDD16-08A

SURFACE MOUNT

ULTRA FAST RECOVERY RECTIFIERS

DUAL, COMMON ANODE

16 AMP, 200 THRU 800 VOLTS

Central

FEATURES:

Semiconductor Corp.

PAK CASE

DESCRIPTION:

•

HIGH RELIABILITY

HIGH CURRENT CAPABILITY

UL FLAMMABILITY CLASSIFICATION 94V-O

ULTRA FAST RECOVERY TIME

LOW FORWARD VOLTAGE

HIGH SURGE CAPACITY

SUPERIOR LOT TO LOT CONSISTENCY

HIGH VOLTAGE

The CENTRAL SEMICONDUCTOR CUDD16-02A Series types are a Silicon Ultra-Fast Recovery

Rectifier designed for surface mount ultra fast switching applications requiring a low forward voltage

drop. To order devices on 24mm Tape and Reel ( 800/13" Reel ), add TR13 suffix to part number.

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

SYMBOL

CUDD16

-02A

Peak Repetitive Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current (TC=100°C)

Peak Forward Surge Current (8.3ms)

Operating and Storage

Junction Temperature

Typical Thermal Resistance

TJ,Tstg

-50 to +150

3.0

°C

°C/W

VRRM

VR(RMS)

IFSM

200

140

CUDD16

-04A

400

280

125

CUDD16

-08A

800

560

UNITS

ELECTRICAL CHARACTERISTICS PER DIODE:

(TC=25°C unless otherwise noted)

CUDD16-02A CUDD16-04A CUDD16-08A

SYMBOL TEST CONDITIONS

TYP MAX

trr

VR=Rated VRRM

VR=Rated VRRM, TC= 150°C

IF=8.0A

IF=8.0A, TC= 150°C

IF=0.5A, IR=1.0A, IRR=0.25A

VR=4.0V, f=1.0MHz

5.0

250

0.975

0.895

500

1.3

1.1

500

1.7

1.4

UNITS

µA

R0 ( 31-August 2001)

CUDD16-02A Related Products

	CUDD16-02A	CUDD16-04A	CUDD16-08A	CUDD16-04ATR13	CUDD16-08ATR13LEADFREE	CUDD16-02ATR13	CUDD16-08ATR13
Description	surface mount ultrafast recovery rectifiers dual, common anode 16 amp, 200 thru 800 volts	surface mount ultrafast recovery rectifiers dual, common anode 16 amp, 200 thru 800 volts	surface mount ultrafast recovery rectifiers dual, common anode 16 amp, 200 thru 800 volts	Rectifier Diode, 1 Phase, 2 Element, 16A, 400V V(RRM), Silicon, D2PAK-3	Rectifier Diode, 1 Phase, 2 Element, 16A, 800V V(RRM), Silicon, D2PAK-3	Rectifier Diode, 1 Phase, 2 Element, 16A, 200V V(RRM), Silicon, D2PAK-3	Rectifier Diode, 1 Phase, 2 Element, 16A, 800V V(RRM), Silicon, D2PAK-3
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Contains lead
Parts packaging code	TO-263	TO-263	TO-263	TO-263	TO-263	TO-263	TO-263
package instruction	D2PAK-3	D2PAK-3	D2PAK-3	D2PAK-3	R-PSSO-G2	D2PAK-3	D2PAK-3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	unknown	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	HIGH VOLTAGE ULTRA FAST RECOVERY	HIGH VOLTAGE ULTRA FAST RECOVERY	HIGH VOLTAGE ULTRA FAST RECOVERY	HIGH VOLTAGE ULTRA FAST RECOVERY	HIGH VOLTAGE ULTRA FAST RECOVERY	HIGH VOLTAGE ULTRA FAST RECOVERY	HIGH VOLTAGE ULTRA FAST RECOVERY
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e0	e0	e0	e0	e3	e0	e0
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A	125 A	125 A	125 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	16 A	16 A	16 A	16 A	16 A	16 A	16 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	400 V	800 V	400 V	800 V	200 V	800 V
Maximum reverse recovery time	0.03 µs	0.03 µs	0.09 µs	0.03 µs	0.09 µs	0.03 µs	0.09 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	MATTE TIN	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
Maker	Central Semiconductor	-	Central Semiconductor	-	Central Semiconductor	Central Semiconductor	Central Semiconductor
Maximum forward voltage (VF)	0.895 V	1.1 V	1.4 V	1.1 V	-	0.895 V	1.4 V
