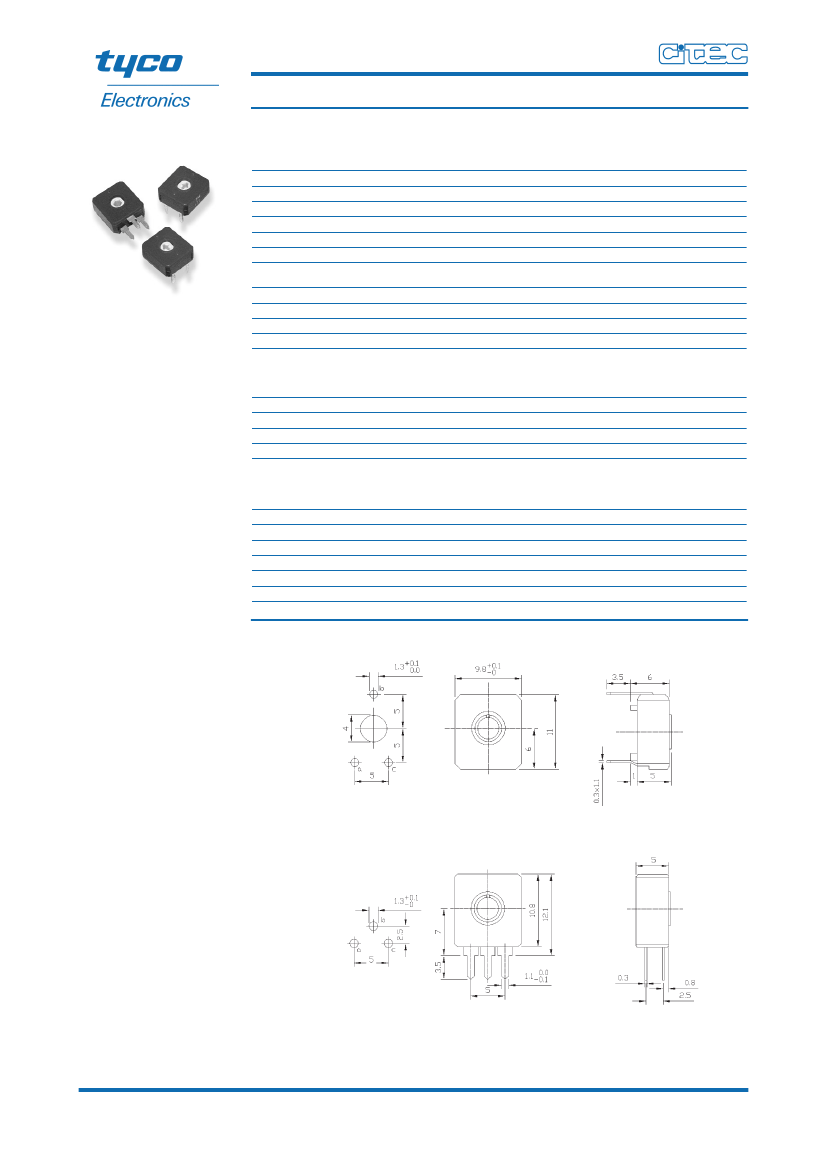

Cermet Economy Trimmers
Type CM10 Series
Type CM10 Series
Characteristics -
Electrical
Resistance Range:
Resistance Values:
Resistance Tolerance:
End Resistance:
Power Rating @ 40°C:
Maximum Voltage:
Rotational Noise (CRV):
Temperature Coefficient:
Slider Current:
Resolution:
Electrical Adjustment:
100R to 10M
1, 2.2 & 4.7 in each decade
± 20% (± 10% available to order)
2 ohms or 2% whichever is greater
0.5 Watts (derating to zero at 100°C)
250V DC
<3% of Rn nominal or 3 ohms
(whichever is the greater)
±200 ppm/°C < 100K ohms
50mA
Essentially Infinite
240° Nominal 1 Turn
The Cermet sister to the CB10, this low
price, enclosed cermet potentiometer
offers excellent long-term stability at a
sensible price.
Tyco Electronics can offer hexagon
centres for a wide variety of plug-in
spindles,
accessories
and
other
custom made parts.
The Tyco CM10 is normally selected
when professional equipment requires
high reliability and stable potentiome-
ters for setting precise voltages.
Characteristics -
Mechanical
End Torque:
Starting Torque:
Mechanical Adjustment:
Weight:
50 mNm maximum
4 to 20 mNm
295° nominal 1 Turn
1.0 grams maximum
Characteristics -
Environmental
Temperature Range:
Temperature Storage:
Rotational Life:
Load Life at 40°C:
Sealing:
Climate Category:
-40°C to +90°C
1000 hours at 100°C
200 cycles, minimum
∆R
<10% after 1000 hours
Dust and Splash Proof
40/90/21
Key Features
I
I
I
I
I
I
I
Robust Enclosed Construction
Spindle Adjust Versions
Flame Retardant
Arrow Position Indicator
Top, Bottom and Side Adjust
Styles
Stable in High Humidity
Edgewheel Operation Style
Dimensions
CM10V
CM10H
Literature No. 1773197
Issued: 09-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
Cermet Economy Trimmers
Type CM10 Series

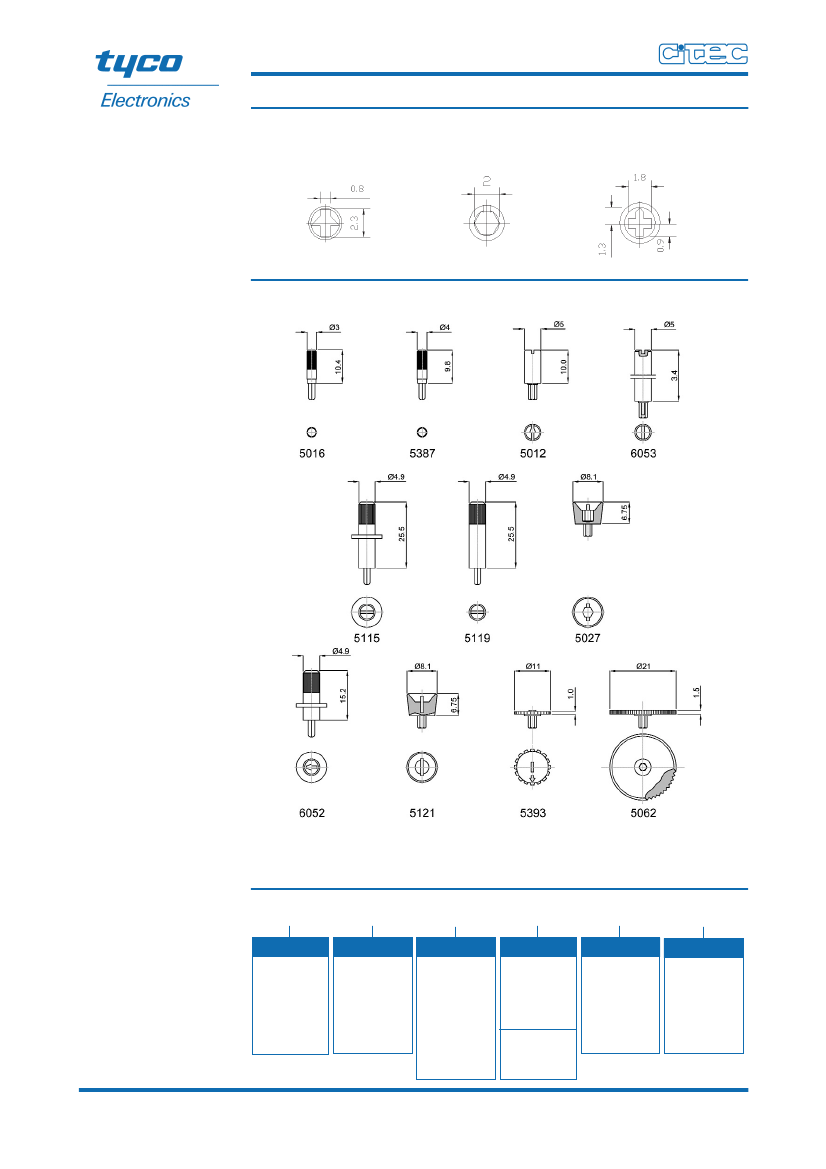

Adjustment Styles
L
M
K
Plug-in Accessories
How to Order Accessories
Prefix the above numbers with CB10. i.e. CB105393
How to Order
CM10
L
H
Orientation
102
Resistance Value
The first two digits
are significant figures
of resistance value.
The third digit
denotes the number
of zeros following.
e.g. 100R: 101
1K0: 102
10K: 103
100K: 104
M
Tolerance
K - 10%
(Special)
–
Features
Common Part Adjustment Style
L - Arrow Head
CM10 - 10mm
Cermet Trimmer
M - Hex Centre
K - Cross Slot
H - Vertical to PCB
V - Horizontal
to PCB
– - Standard
M - 20%
E - Extended Life
N - 30%
(>1 Meg)
Literature No. 1773197
Issued: 09-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
