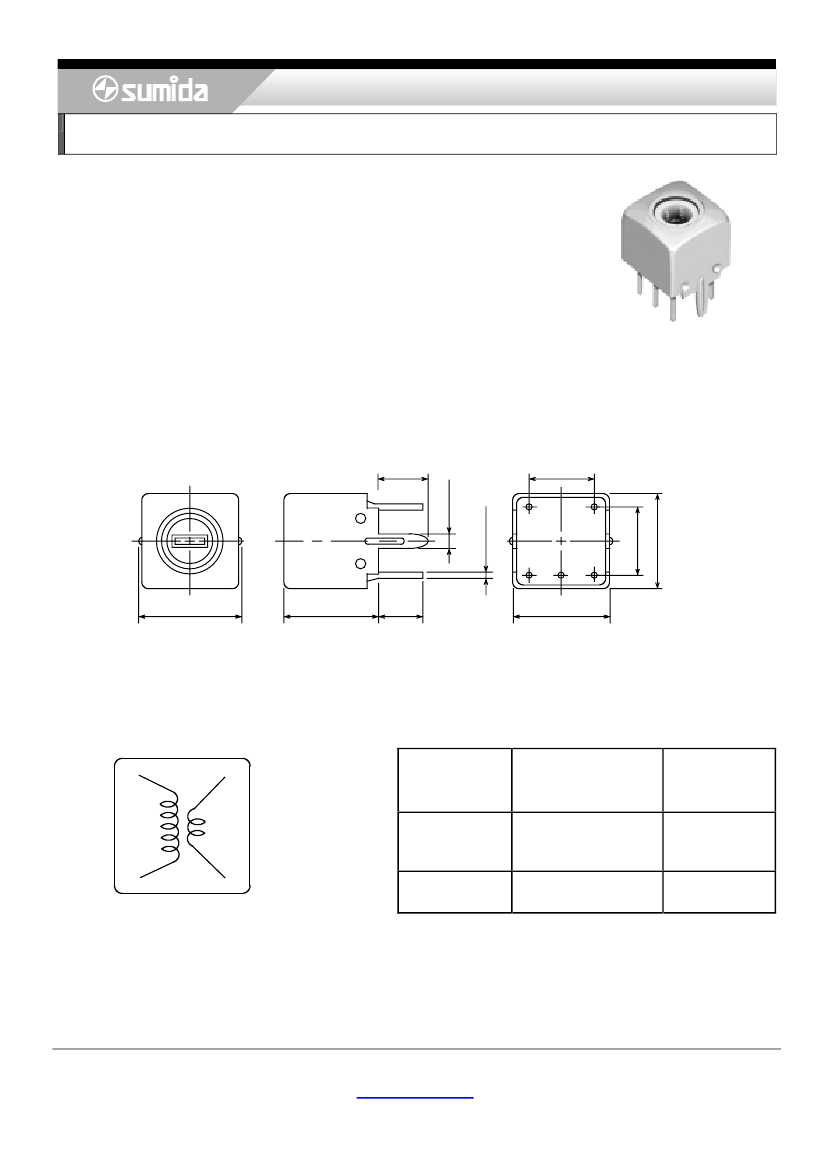

RF COILS < Pin Type: S-5 Series>

Type: S-5LD3

◆

Product Description

・5.9×5.9mm

Max.(L×W), 6.1mm Max. Height.

・Inductance:0.1~30µH

Max.

・Operating

frequency: 300MHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Variable

shielded type.

・RoHS

Compliance.

◆

Dimensions (mm)

2.6±0.3

1.0±0.2

3.6±0.2

＋

0.1

φ0.4－0.05

5.8

5.6±0.5

±0.5

2.5

5.6±0.3

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

＊

Dimensions without tolerance are approx.

◆

Connection (Bottom View)

◆

Specification

(Part No. 2259-T505)

3.6±0.2

5.6±0.3

③

②

S ①

④

Item

(1-3)

Measuring

Condition

10MHz

Tuning capacity 85.0pF±3% Variable

⑥

Unloaded Qu

22 (Typ)

“S”is

winding start.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
