340102226BNMB

Description
Connector Accessory, Backshell
CategoryThe connector    Connector bracket
File Size2MB，13 Pages
ManufacturerC&K Components
Download Datasheet Parametric View All

340102226BNMB Overview

Connector Accessory, Backshell

340102226BNMB Parametric

Parameter NameAttribute value
Objectid8313449548
Reach Compliance Codecompliant
Related Mil-Spec Back CasesMIL-DTL-24308
Connector bracket typeCONNECTOR ACCESSORY
DIN complianceNO
IEC complianceNO
MIL complianceYES
Military connector accessories nameBACKSHELL
Housing sizeB

Preview

Download Datasheet

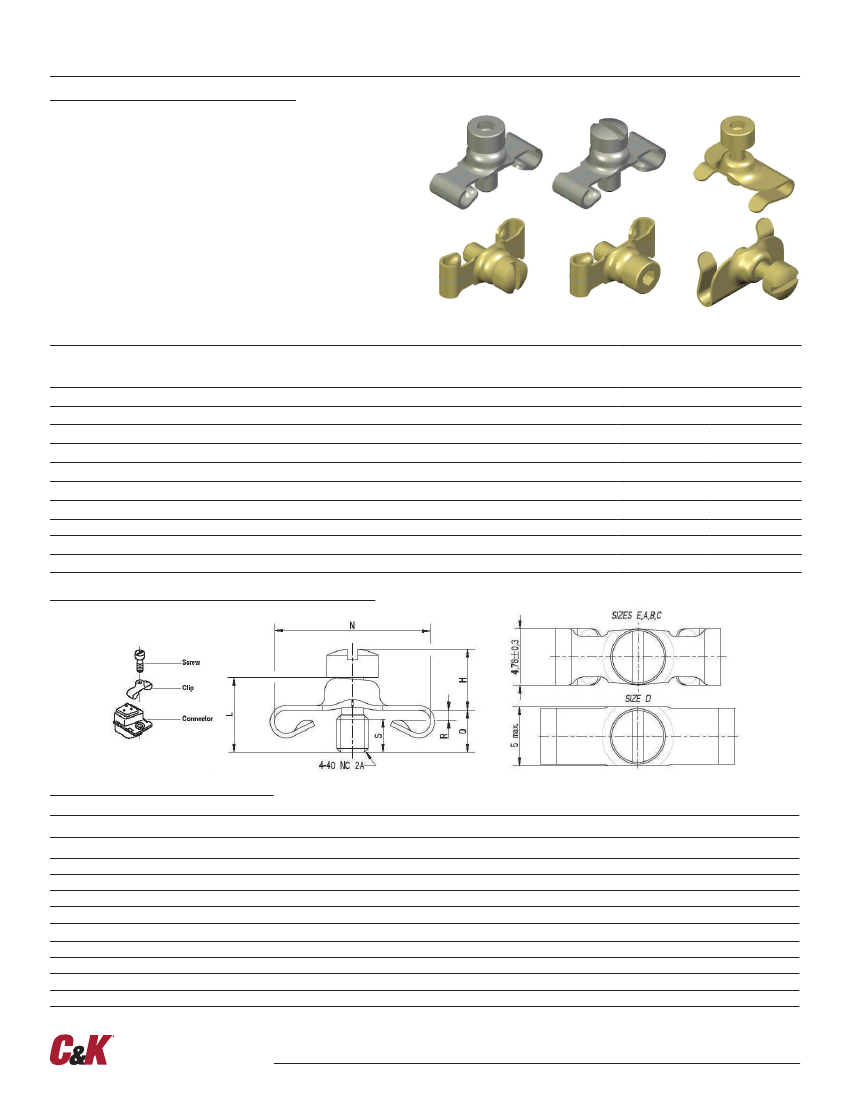

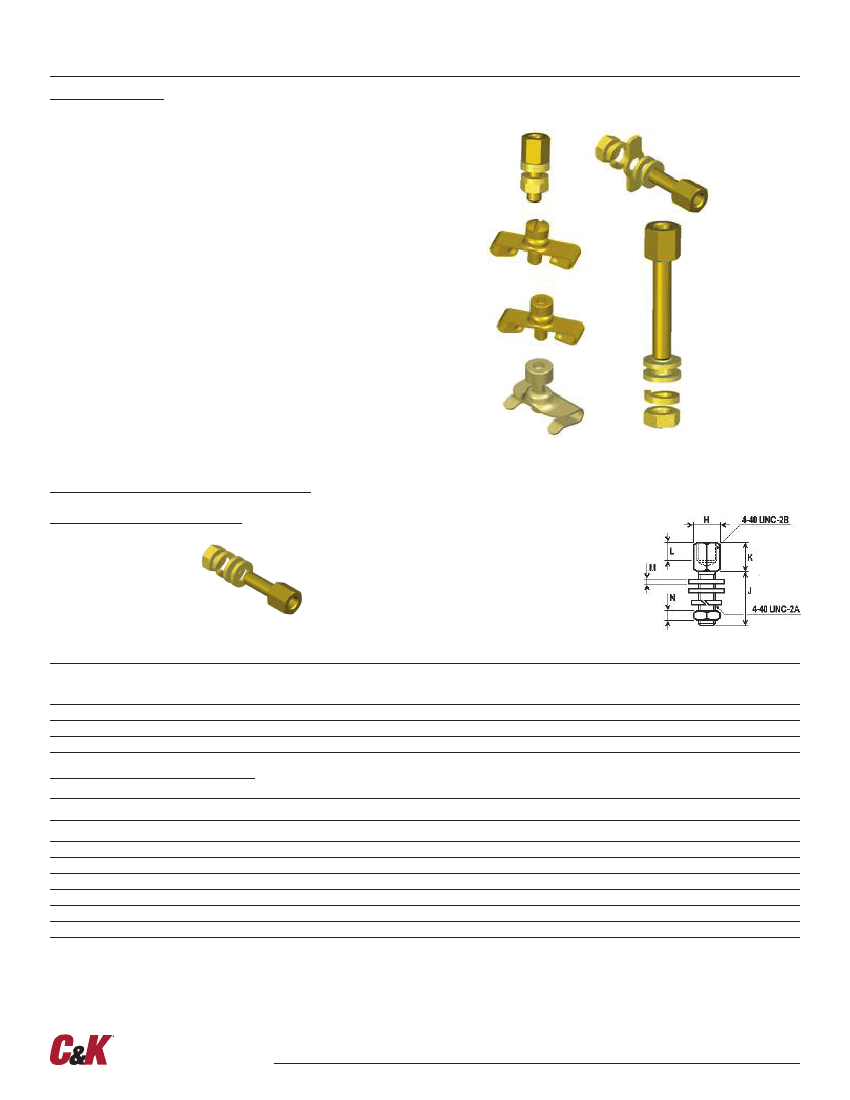

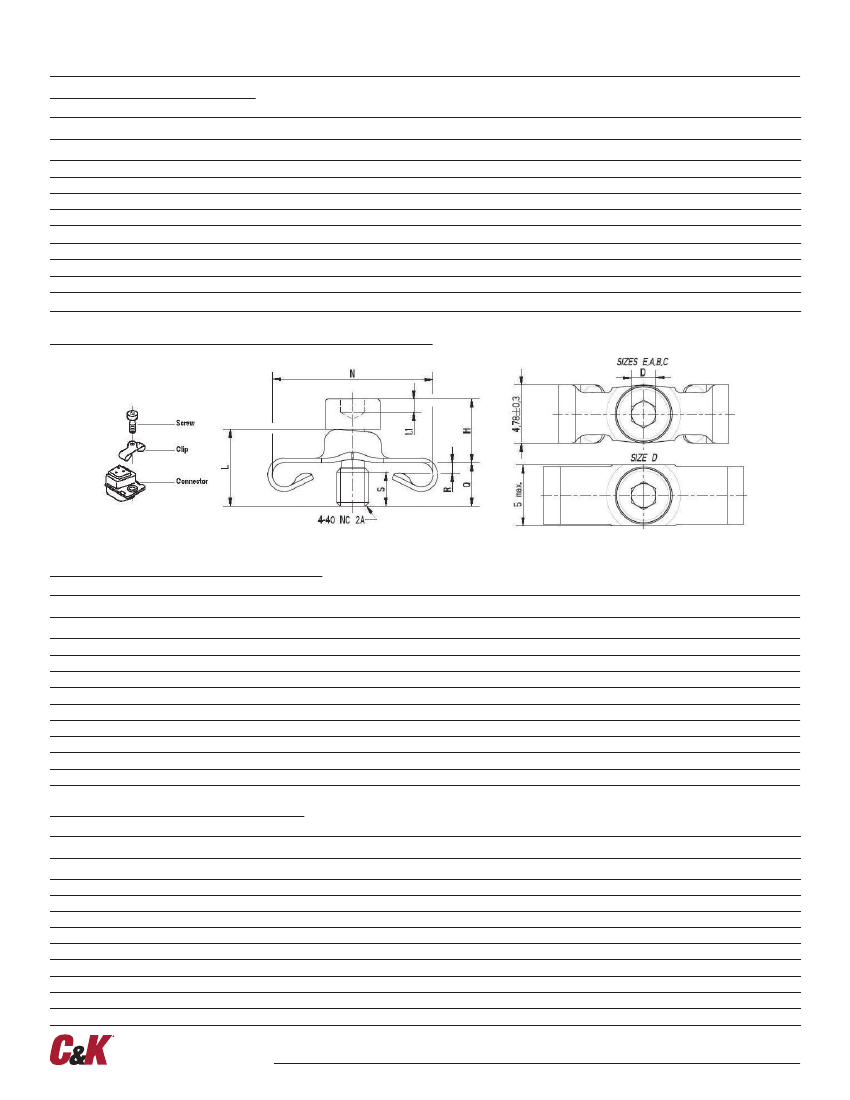

3401-022 Accessories / Screwlocks
Product Features
Male or female screwlocks
Residual magnetism level
- Brass parts: NMB (200 Gamma max)
- Stainless Steel parts: NMB (2000 Gamma max)
1 part number for 1 piece
(or kit)
Order 2 pieces (or kits) per connector
Packaging unit
- 2 pieces (plastic bag) for ESA/ESCC quality level
- 50 pieces (plastic bag) for FR023 quality level
- 50 pieces (plastic bag) for FR022 quality level
Maximum torque value for screws
- 5.5 cm.daN for female (brass)
- 6.6 cm.daN for female (stainless steel)
- 3.3 cm.daN for female-saver/feedthrough (brass)
- 4.4 cm.daN for female-saver/feedthrough (stainless steel)
- 3.3 cm.daN for male (brass)
- 4.4 cm.daN for male (stainless steel)
Section 1 - Standard Female Screwlock
Standard version for use on panel
1 Kit consists of:
- 1 screwlock
- 2 washers
- 1 lock washer
- 1 nut
Max weight (grams): 2.0 (1 piece)
ESA/ESCC
3401 Variant
01 / 48
06 / 53
58 / 59

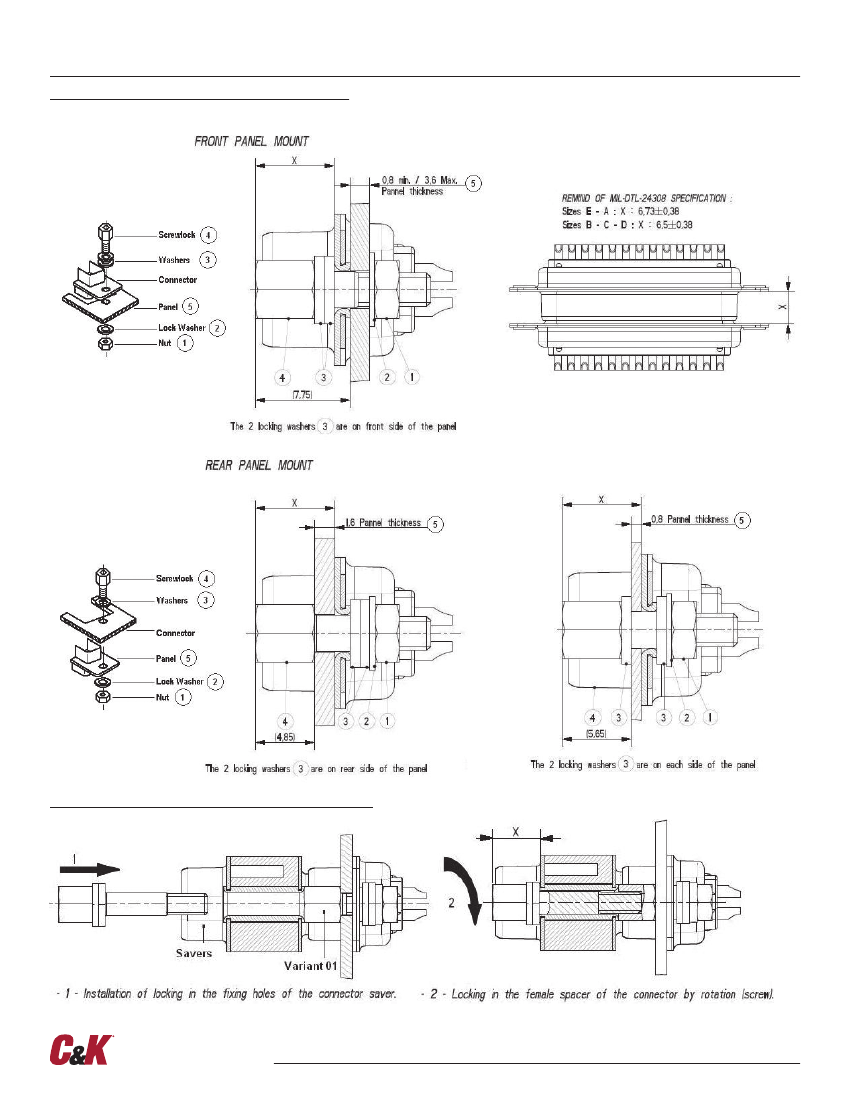

Two washers are used when front mounting.
Remove one washer for each 0,80 (.031) of
panel thickness when rear mounting.
1,60 (.063) max panel.

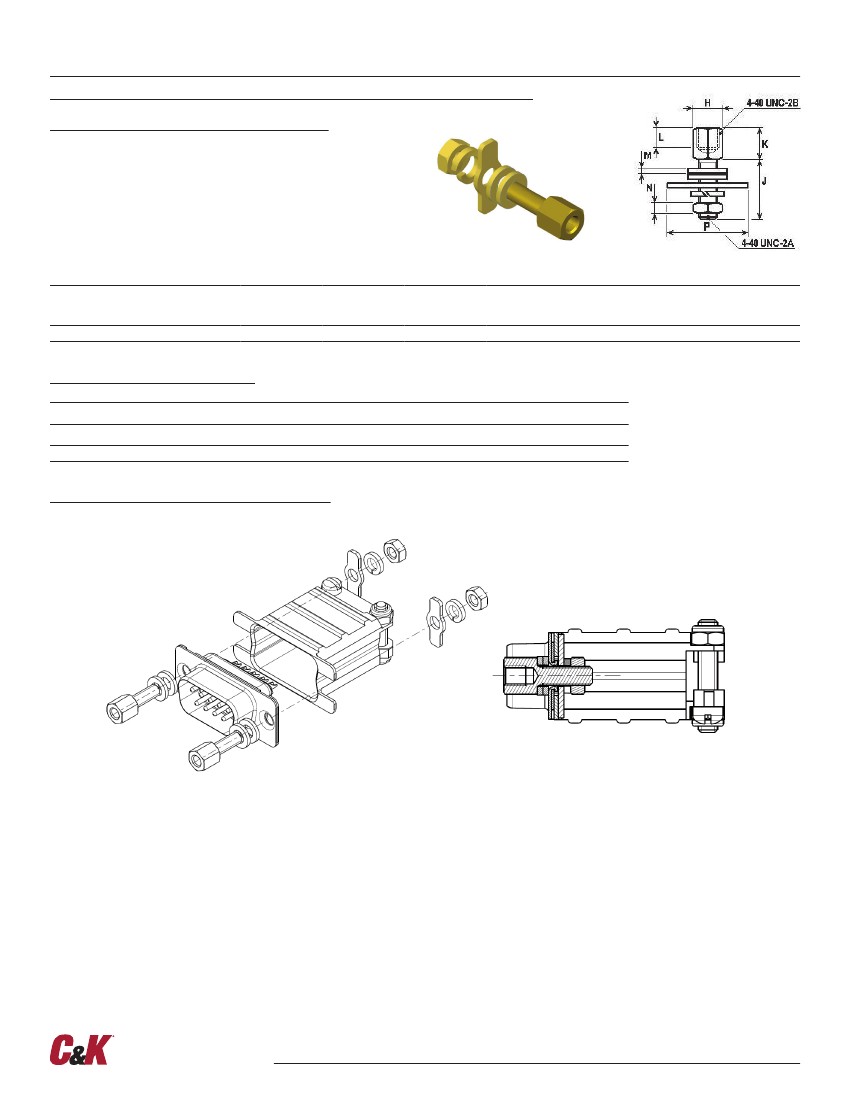

Application
Standard
Savers
Feedthrough
H
±
0,38 (.015)
J
±
0,15 (.006)
7,92 (.312)
14,50 (.571)
15,87 (.625)
K
±
0,05 (.002)
4,85 (.191)
4,85 (.191)
4,85 (.191)
L
min
3,18 (.125)
3,18 (.125)
3,18 (.125)
M
±
0,05 (.002)
0,80 (.031)
0,80 (.031)
0,80 (.031)
N
±
0,10 (.004)
2,10 (.083)
2,10 (.083)
2,10 (.083)
4,75 (.187)
4,75 (.187)
4,75 (.187)
Female Screwlock Cross References
Application Material
Standard
Standard
Savers
Savers
Feedthrough
Feedthrough
Brass
Stainless Steel
Brass
Stainless Steel
Brass
Stainless Steel
ESA/ESCC Quality Level
Description
340102201B NMB
340102248B
340102206B NMB
340102253B
340102258B NMB
340102259B
FR023 Quality Level
Description
D115418-0052-FR023
D115418-1000-FR023
D115418-0070-FR023
D115418-1001-FR023
D115418-0101-FR023
D115418-0077-FR023
FR022 Quality Level
Description
D115418-0052-FR022
D115418-1000-FR022
D115418-0070-FR022
D115418-1001-FR022
D115418-0101-FR022
D115418-0077-FR022
Part Number
C020418-0052C
C115418-1000C
C020418-0070C
C115418-1001C
C020418-0101C
C020418-0077C
Part Number
C115418-0052E
C115418-1000E
C115418-0070E
C115418-1001E
C115418-0101E
C115418-0077E
Part Number
C115418-0052
C115418-1000
C115418-0070
C115418-1001
C115418-0101
C115418-0077
Dimensions are shown in mm (inch)
Dimensions subject to change
A12-1
www.ck-components.com
HDS A12 D_SUB Accessoires – Nov 2017
