H
2 mm x 5 mm Rectangular
LED Lamps
Technical Data
HLMP-S100
HLMP-S20X Series
HLMP-S30X Series
HLMP-S40X Series
HLMP-S50X Series
HLMP-S600
Features
• Rectangular Light Emitting
Surface
• Excellent for Flush
Mounting on Panels
• Choice of Five Bright Colors
• Long Life: Solid State
Reliability
• Excellent Uniformity of
Light Output
Package Dimensions
Description
The HLMP-S100, -S200, -S300,
-S400, -S500, S600 are epoxy
encapsulated lamps in
rectangular packages which are
easily stacked in arrays or used
for discrete front panel
indicators. Contrast and light
uniformity are enhanced by a
special epoxy diffusion and
tinting process.
The HLMP-S100 uses double
heterojunction (DH) absorbing
substrate (AS) aluminum gallium
arsenide (AlGaAs) LEDs to
produce outstanding light output
5964-9379E
1-153
Electrical/Optical Characteristics at T
A
= 25
°
C
Sym.
I
v
Description
Luminous
Intensity
Device HLMP-
AlGaAs Red
S100
High Efficiency Red
S200
S201
Orange
S400
S401
Yellow
S300
S301
Green
S500
S501
Emerald Green
S600
[4]
All
Min. Typ.
3.4
2.1
3.4
2.1
3.4
1.4
2.2
2.6
4.2
1.0
7.5
3.5
7.5
3.5
7.5
2.1
4.0
4.0
8.0
3.0
110
Deg.
I
F
= 20 mA
See Note 1
Max.
Units
mcd
Test Conditions
I
F
= 20 mA
2θ
1/2
Included Angle
Between Half
Luminous
Intensity Points
λ
PEAK
Peak Wavelength
AlGaAs Red
High Efficiency Red
Orange
Yellow
Green
Emerald Green
AlGaAs Red
High Efficiency Red
Orange
Yellow
Green
Emerald Green
AlGaAs Red
High Efficiency Red
Orange
Yellow
Green
Emerald Green
AlGaAs Red
High Efficiency Red
Orange
Yellow
Green
Emerald Green
All
645
635
600
583
565
558
637
626
602
585
569
560
30
90
280
90
500
3100
30
11
4
15
18
35
260
nm
Measurement at
Peak
λ
d
Dominant
Wavelength
nm
See Note 2
Time const, e
-t/τs
τ
s
Speed of
Response
ns
C
Capacitance
pF
V
F
= 0; f = 1 MHz
Rθ
J-PIN
Thermal
Resistance
V
F
Forward Voltage
°C/W
Junction to Cathode
Lead at Seating
Plane
I
F
= 20 mA
AlGaAs Red
HER/Orange
Yellow
Green/Emerald
Green
All
1.6
1.5
1.5
1.5
5.0
1.8
1.9
2.1
2.2
2.2
2.6
2.6
3.0
V
V
R
Reverse Break-
down Voltage
V
I
R
= 100
µA
1-154
Electrical/Optical Characteristics at T
A
= 25
°
C (cont’d)
Sym.
η
V
Description
Luminous
Efficacy
Device HLMP-
AlGaAs Red
High Efficiency Red
Orange
Yellow
Green
Emerald Green
Min. Typ.
80
145
380
500
595
656
Max.
Units
Test Conditions
lumens/
watt
See Note 3
Notes:
1.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
2. The dominant wavelength,
λ
d
, is derived from the CIE chromaticity diagram and represents the single wavelength which defines
the color of the device.
3. Radiant intensity, I
e
, in watts/steradian, may be found from the equation I
e
= I
v
/η
v
, where I
v
is the luminous intensity in candelas
and
η
v
is the luminous efficacy in lumens/watt.
4. Please refer to Application Note 1061 for information comparing standard green and emerald green light output degradation.
Absolute Maximum Ratings at T
A
= 25
°
C
AlGaAs
Red
300
20
30
High Efficiency
Red/Orange
90
25
30
500
110
-20 to +100
-55 to +100
260°C for 5 seconds
110
-55 to +100
110
-55 to +100
110
-20 to +100
-55 to +100
Green/
Emerald
Green
90
25
30
Parameter
Peak Forward Current
Average Forward Current
[1]
DC Current
[2]
Transient Forward Current
[3]
(10
µsec
Pulse)
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[1.6 mm (0.063 in.) below
seating plane]
Yellow
60
20
20
Units
mA
mA
mA
mA
°C
°C
Notes:
1. See Figure 5 to establish pulsed operating conditions.
2. For AlGaAs Red, Red, Orange, and Green series derate linearly from 50°C at 0.5 mA/°C. For Yellow series derate linearly from 50°C at
0.34 mA/°C.
3. The transient peak current is the maximum non-recurring peak current that can be applied to the device without damaging the LED
die and wire bond. It is not recommended that the device be operated at peak currents beyond the peak forward current listed in the
Absolute Maximum Ratings.
1.0
EMERALD GREEN
ORANGE
AlGaAs RED
T
A
= 25° C
RELATIVE INTENSITY
HIGH
PERFORMANCE
GREEN
HIGH EFFICIENCY RED
0.5
YELLOW
0
500
550
600
WAVELENGTH – nm
650
700
750

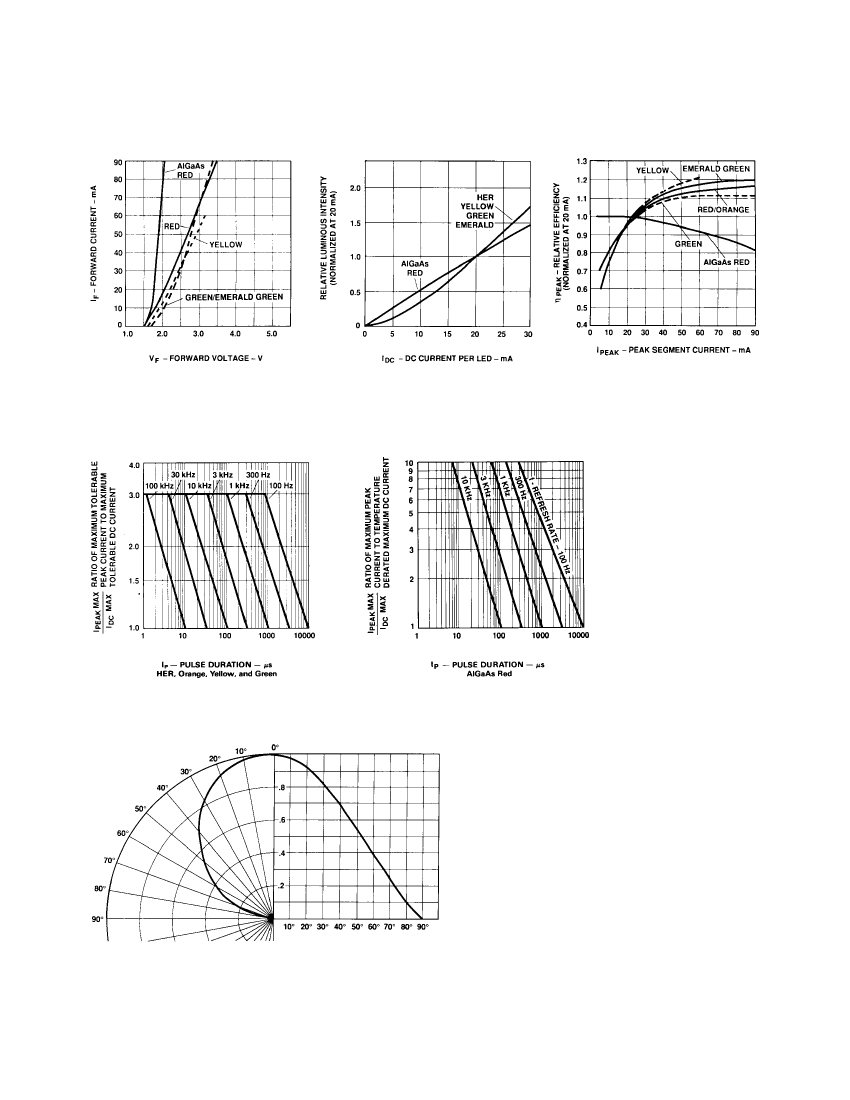

Figure 1. Relative Intensity vs. Wavelength.
1-155
Figure 2. Forward Current vs.
Forward Voltage Characteristics. V
F
(300 mA) for AlGaAs Red = 2.6 Volts
Typical.
Figure 3. Relative Luminous Intensity
vs. DC Forward Current.
Figure 4. Relative Efficiency
(Luminous Intensity per Unit Current)
vs. LED Peak Current.
ηv
(300 mA) for
AlGaAs Red = 0.7.
Figure 5. Maximum Tolerable Peak Current vs. Peak Duration.
(I
PEAK
MAX Determined from Temperature Derated I
DC
MAX).
Figure 6. Relative Luminous Intensity vs. Angular Displacement.
1-156
