DS09-MFC-M-02-BL datasheet, PDF

Datasheet> All Categories > The connector> The connector> DS09-MFC-M-02-BL

DS09-MFC-M-02-BL: DescriptionD Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DS09-MFC-M-02-BL Overview

D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Plug

DS09-MFC-M-02-BL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1308551737
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.496 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLUE
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	IDC
Total number of contacts	9

Preview

Download Datasheet

View All

SPECIFICATIONS

Operating Voltage:

Current Rating:

Contact Resistance:

Insulation Resistance:

Insulator:

Contacts:

Shell:

Rivet, Boardlock:

Underplating:

Contact Area:

Withstanding:

Temp Range:

250V AC Max.

3A Max.

15mΩ Max.

3000 mΩ Min. @500V DC

Thermal Plastic UL94V-0

Copper Alloy

Steel

Copper Alloy

50u”~150u” Nickel

1u” ~ 30u” Gold

1000AC/minute

-55C to +105C

Series

Type

DSXX

XFC

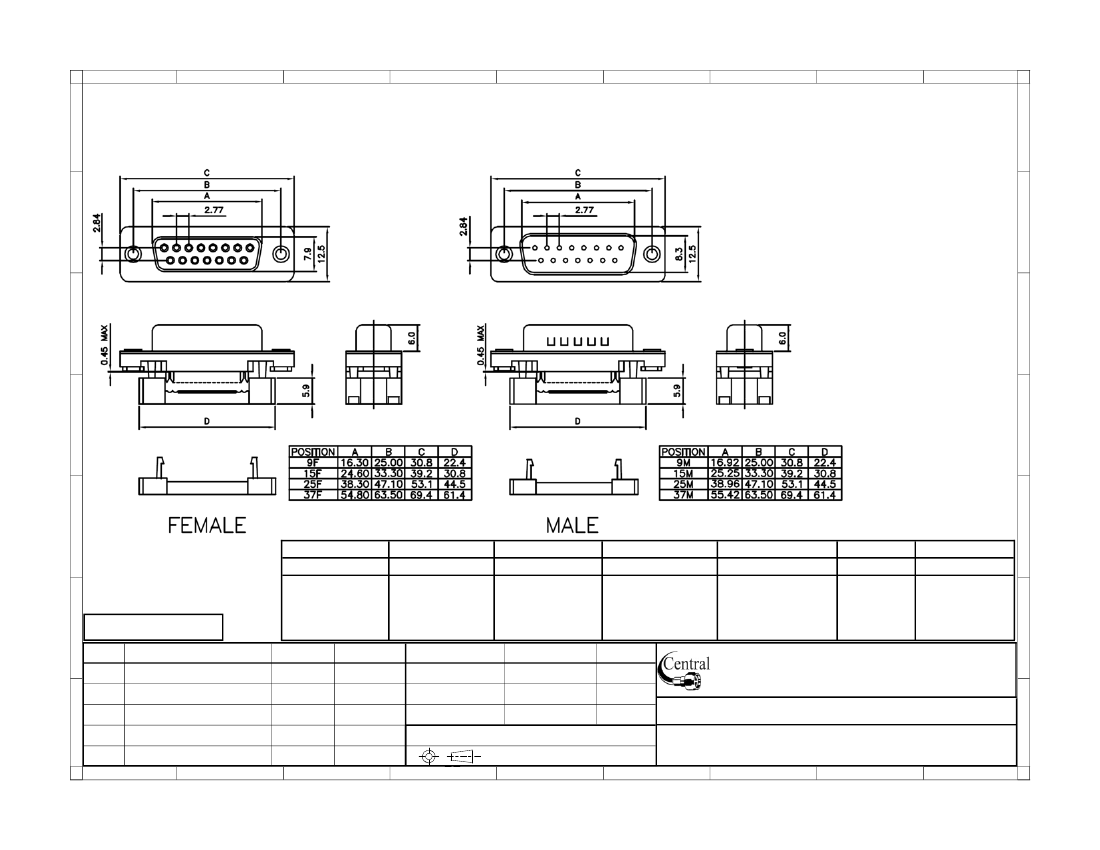

D-Sub Connector MFC=Male IDC

XX=09,15,25,37,50 FFC=Female IDC

Shell

P=Plastic

M=Metal

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Face Options

Contact Finish

Color

01=.120 Thru Hole Blank=Selective Gold Blank=Black

02=4-40 Threaded

SG15=15u” Sel. Gold BL=Blue

03=Fixed Jackscrew SG30=30u” Sel. Gold

4.8x11.8mm

Date

11/25/13

11/25/13 Part No.:

Options

Blank=None

SR=Strain Relief

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

DSXX-XFC-X-02-XX-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

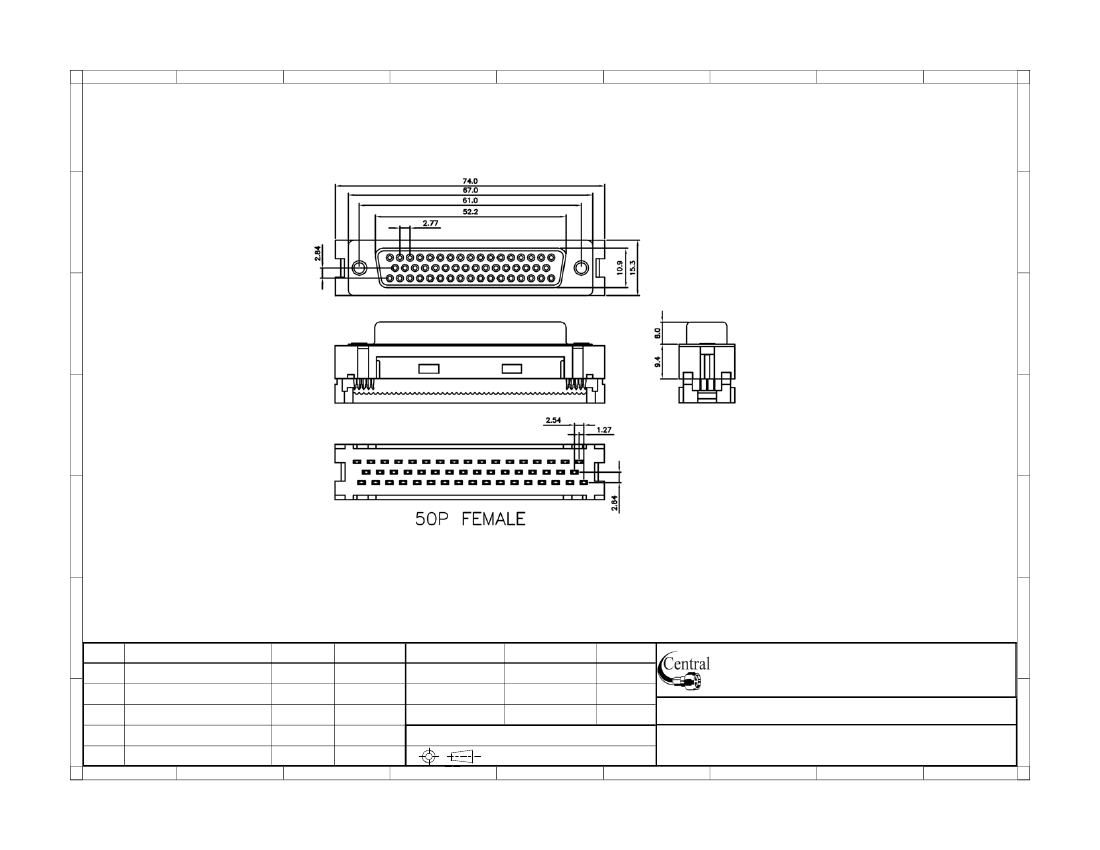

Description: IDC D-Sub Female, Metal Body
