D360SC4M

Description
schottky rectifiers (sbd) (40v 360a)
CategoryDiscrete semiconductor    diode
File Size16KB，1 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Environmental Compliance
Download Datasheet Parametric View All

D360SC4M Online Shopping

Suppliers Part Number Price MOQ In stock
D360SC4M - - View Buy Now

D360SC4M Overview

schottky rectifiers (sbd) (40v 360a)

D360SC4M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSHINDENGEN
Parts packaging codeMODULE
package instructionMODULE-4
Contacts4
Reach Compliance Codeunknown
ECCN codeEAR99
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 3 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.6 V
JESD-30 codeR-XUFM-X3
Maximum non-repetitive peak forward current1600 A
Number of components3
Phase1
Number of terminals3
Maximum operating temperature125 °C
Maximum output current120 A
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage40 V
Maximum reverse current80000 µA
surface mountNO
technologySCHOTTKY
Terminal formUNSPECIFIED
Terminal locationUPPER

Preview

Download Datasheet
SHINDENGEN
Schottky Rectifiers (SBD)
Modules

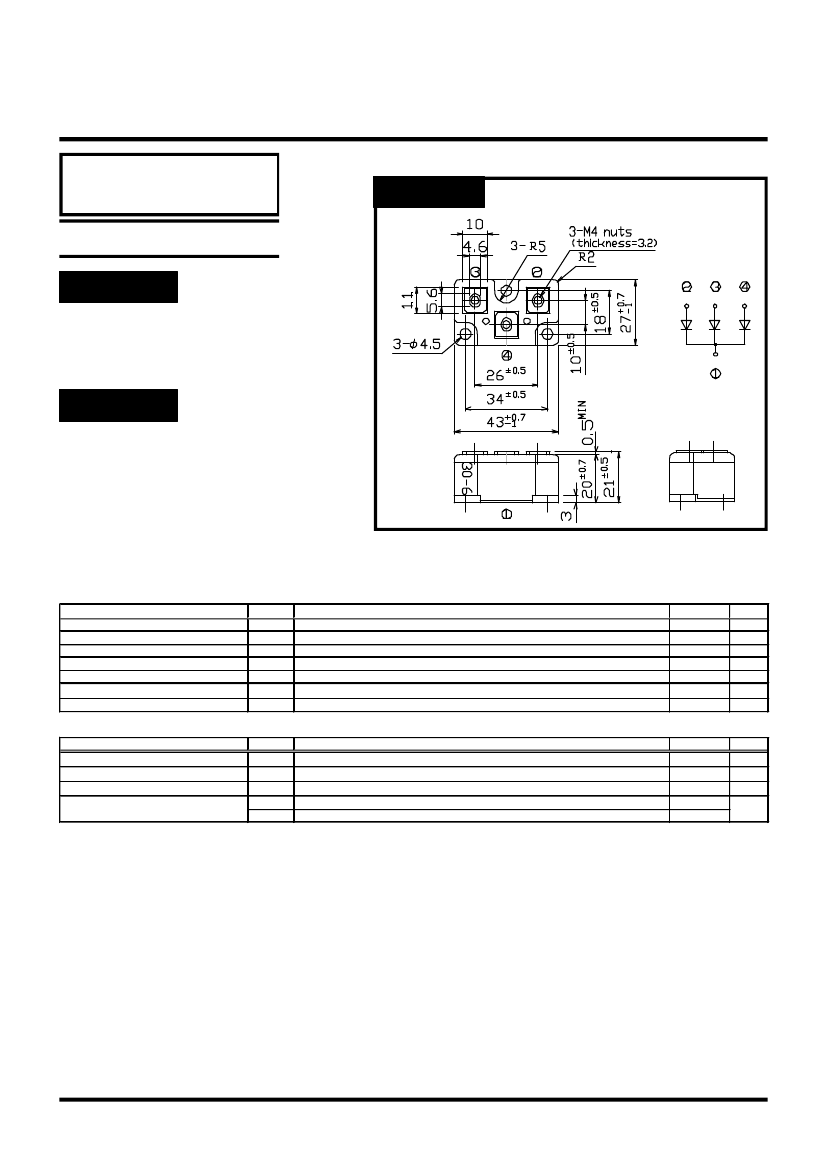

D360SC4M
40V 360A
FEATURES
●
High capacity modules
●
Low VF
●
Small
θ
jc
OUTLINE DIMENSIONS
Case : Modules
Unit : mm
APPLICATION
●
Big switching power supply
●
DC/DC converter
●
Mainframe
●
IC tester
RATINGS
●Absolute Maximum Ratings  not specified Tc=25℃）
(If
Item
Symbol
Conditions
Storage Temperature
Tstg
Tj
Operating Junction Temperature
V
RM
Maximum Reverse Voltage
V
RRSM
Pulse width 100ms, duty 1/100
Repetitive Peak Surge Reverse Voltage
I
O
Average Rectified Forward Current
50Hz sine wave, R-load, Rating for each arm Io/3, Tc=64℃
I
FSM
50Hz sine wave, Non-repetitive 1cycle peak value, Rating of per arm Tj=125 ℃
Peak Surge Forward Current
TOR
Mounting Torque
●Electrical Characteristics   not specified Tc=25℃）
(If
Item
Symbol
Conditions
V
F
I
F
=120A,
Forward Voltage
Pulse measurement, Rating of per arm
I
R
V
R
=V
RM
, Pulse measurement, Rating of per arm
Reverse Current
Junction Capacitance
Cj
f=1MHz, V
R
=10V, Rating of per arm
θjc
junction to case
Thermal Resistance
θcf
case to heatsink, Mounting torque = 1.7N½m
Ratings Units
-40∼125 ℃
125
℃
40
V
48
V
360
A
1600
A
1.7
N½m
Ratings Units
Max.0.60
V
Max.80
mA
TYP 4.2
nF
Max.0.18 ℃/W
Max.0.12
