ILCX05-HF2F18-3.500 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ILCX05-HF2F18-3.500

ILCX05-HF2F18-3.500: DescriptionParallel - Fundamental Quartz Crystal, 3.5MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size58KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

ILCX05-HF2F18-3.500 Overview

Parallel - Fundamental Quartz Crystal, 3.5MHz Nom, SMD, 4 PIN

ILCX05-HF2F18-3.500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT; TR, 13 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	3.5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Series resistance	200 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

4 Pad Ceramic Package, 5.5 mm x 11.9 mm

Product Features:

SMD Package

Supplied in Tape and Reel

Compatible with Leadfree Processing

ILCX05 Series

Applications:

PCMCIA Cards

Storage

PC’s

Wireless Lan

5.5

11.9

Frequency

3.5 MHz to 70 MHz

ESR (Equivalent Series Resistance)

3.5 MHz – 4.4 MHz

4.5 MHz – 6.9 MHz

7 MHz – 13.9 MHz

14 MHz – 25 MHz

30 MHz – 70 MHz (3 O.T.)

200 Max.

100 Max.

70 Max.

50 Max.

100 Max.

Shunt Capacitance (C0)

Frequency Tolerance @ 25

Frequency Stability over

Temperature

Crystal Cut

Load Capacitance

Drive Level

Aging

Temperature

Operating

7 pF Max.

30 ppm Standard (see Part Number Guide for more

options)

50 ppm Standard (see Part Number Guide for more

options)

AT Cut

18 pF Standard (see Part Number Guide for more options)

100 uW Max.

5 ppm Max. / Year Standard

4.3

Connection Diagram

Recommended Pad Layout

2.4

2.1

0 C to +70 C Standard (see Part Number Guide for more

options)

-40 C to +85 C Standard

5.1

Storage

Dimension Units: mm

Part Number Guide

Package

Tolerance

(ppm) at Room

Temperature

B = ±50 ppm

F = ±30 ppm

ILCX05 -

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm

J = ±10 ppm*

Sample Part Number:

Stability

(ppm) over Operating

Temperature

B = ±50 ppm

F = ±30 ppm

G = ±25 ppm

H = ±20 ppm

I = ±15 ppm**

J = ±10 ppm**

ILCX05 - FB1F18 - 20.000

Operating

Temperature Range

0 = 0°C to +50°C

1 = 0°C to +70°C

2 = -10°C to +60°C

3 = -20°C to +70°C

5 = -40°C to +85°C

9 = -10°C to +50°C

Mode

(overtone)

F = Fundamental

3 = 3

overtone

Load Capacitance

(pF)

Frequency

18 pF Standard

Or Specify

- 20.000 MHz

* Not available at all frequencies. ** Not available for all temperature ranges.

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

06/09_A

Specifications subject to change without notice

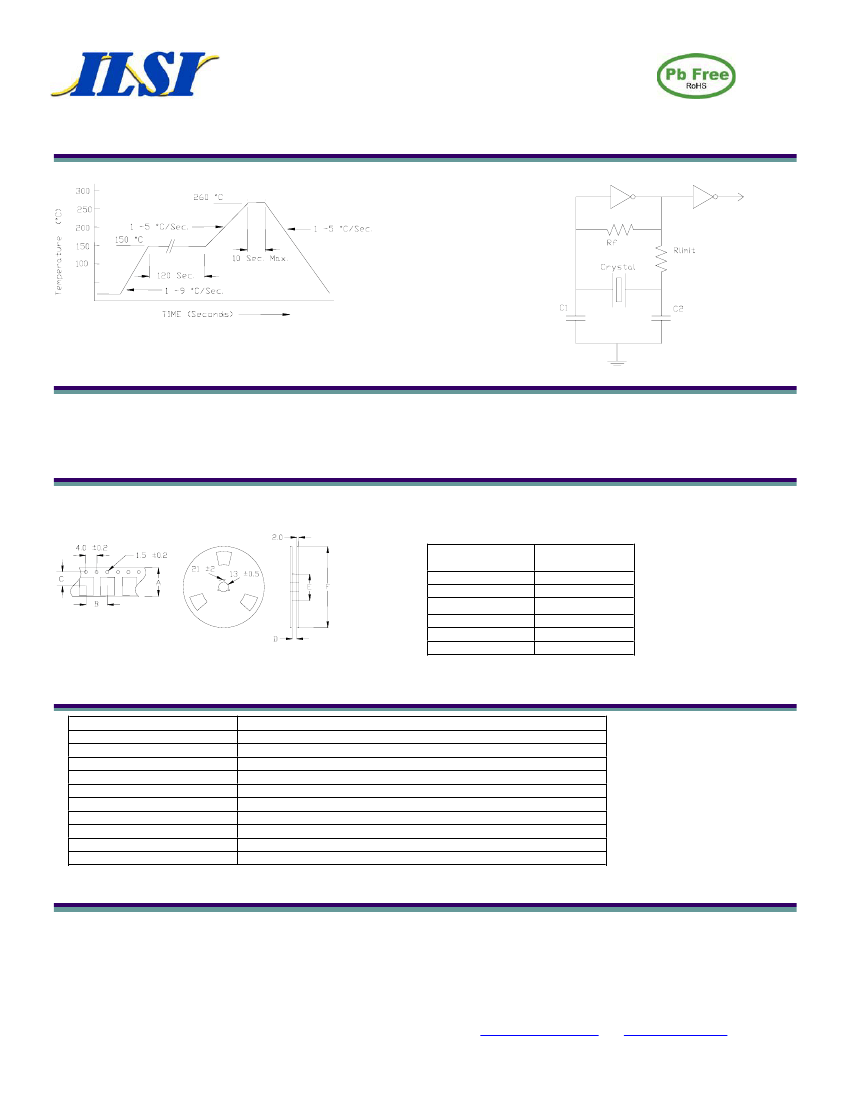

Page 1
