BNC6100-L240 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BNC6100-L240

Preview

BNC6100-L240: DescriptionRF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Guide Slot, Plug; CategoryThe connector The connector; File Size205KB，2 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric View All

BNC6100-L240 Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Guide Slot, Plug

BNC6100-L240 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ROHS, CABLE TYPE JBY240
subject depth	0.984 inch
Body diameter	0.571 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	MALE
Contact resistance	1.5 mΩ
Contact style	COAX
Coupling type	BAYONET
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

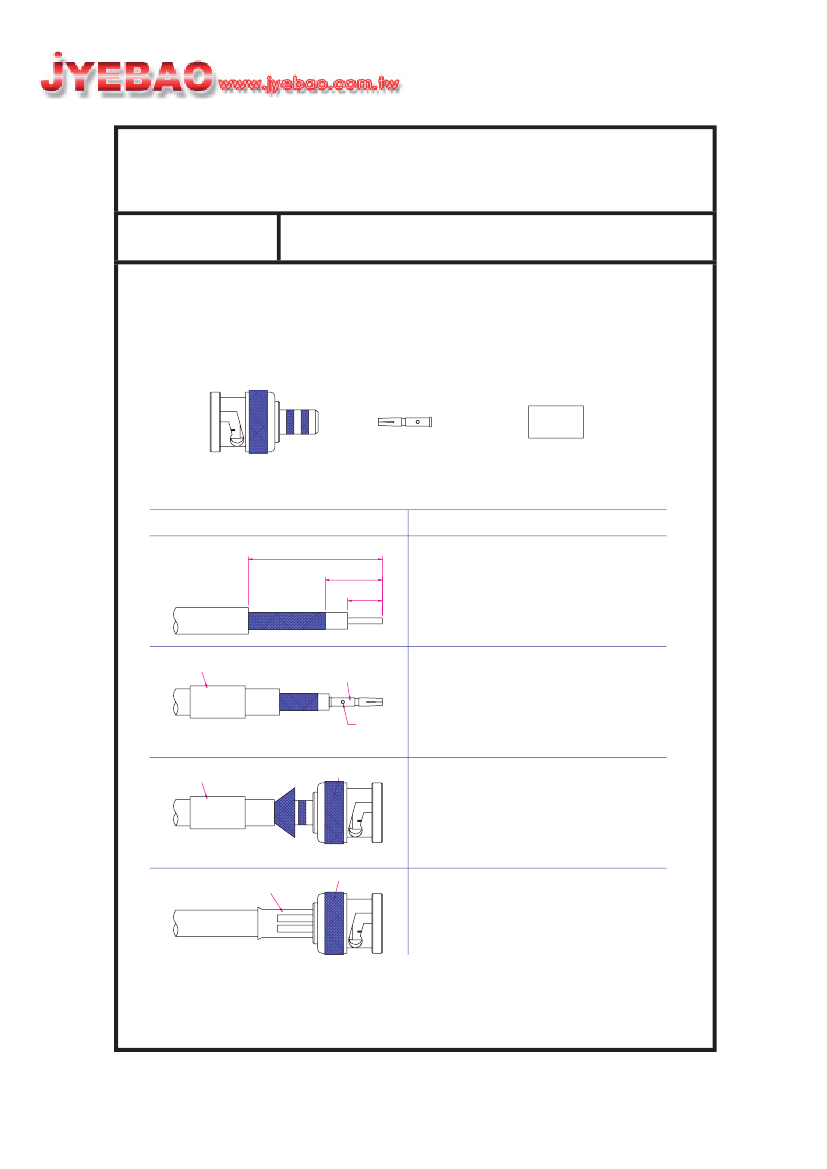

BNC6100-L240

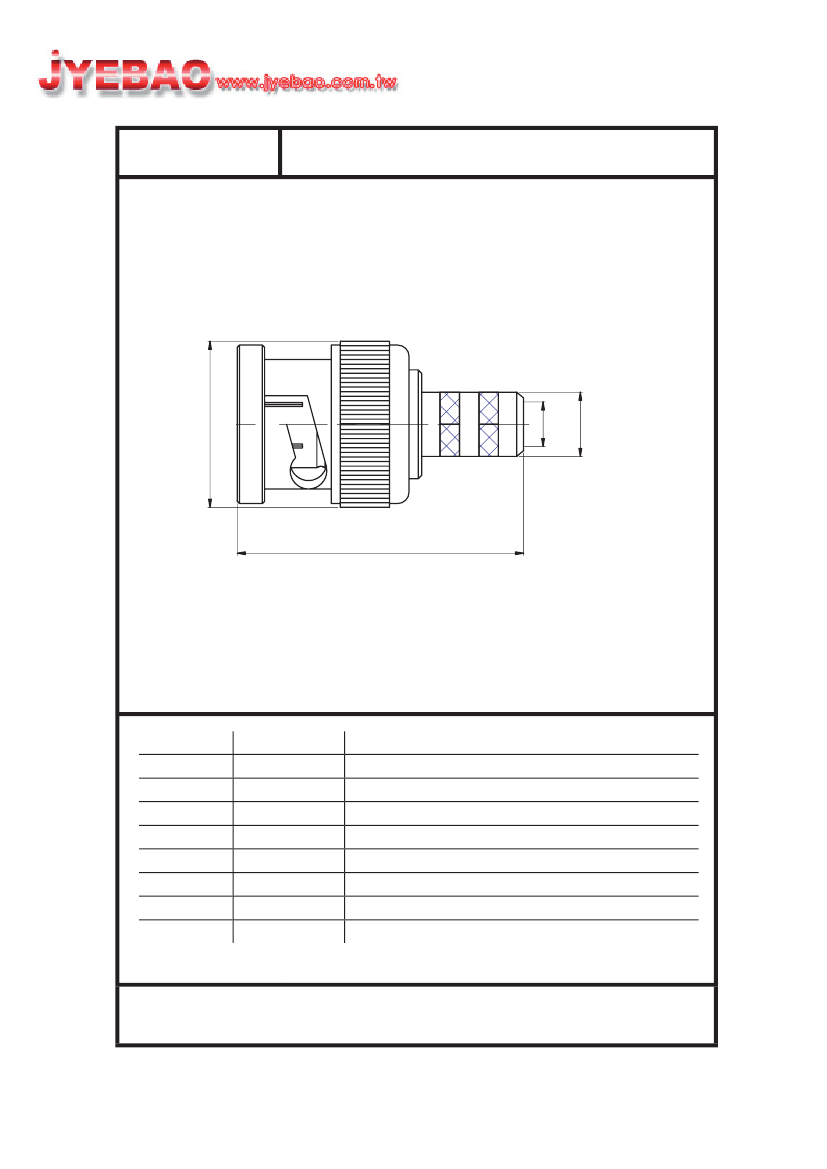

BNC Reverse Polarity Plug Crimp 50Ω

Ø14.5

(Ø.570)

25

(.984)

Parts

Ferrule

Contact Pin

Gasket

Spring

Washer

Insulator

Body

Coupling Nut

Material

Brass

Phosphor Bronze

Silicon

SK5

Brass

Teﬂon

Brass

Plating(Micro-inch)

Tin-Zinc-Copper-Alloy 100 Over Copper 50

Gold 3 Over Nickel 50 Over Copper 50

Tin-Zinc-Copper-Alloy 100 Over Copper 50

Weight:

Suitable Cables: LMR240, JBY240

This part number complies with RoHS.

Notice: JYEBAO reserves the right to make modiﬁcations deemed appropriate.
