402802A000-23 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 402802A000-23

402802A000-23: DescriptionBoard Connector, 280 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Hole .099-.111, Black Insulator, Receptacle; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

402802A000-23 Overview

Board Connector, 280 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Hole .099-.111, Black Insulator, Receptacle

402802A000-23 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	XD/P
body width	0.585 inch
subject depth	0.462 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	40
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	280
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

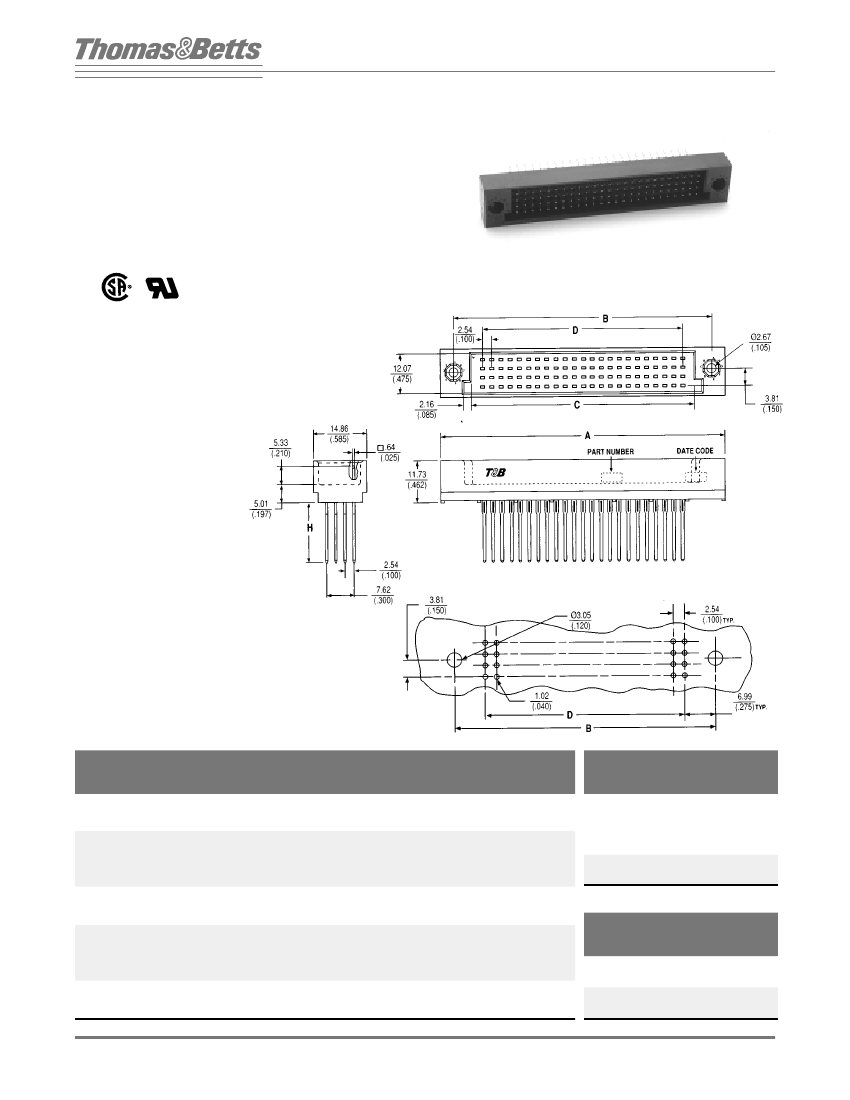

Two–Piece Connectors

XD/P System

FOUR ROW, ONE CELL

STRAIGHT MALE

XD/P

™

CONNECTORS

PRESSFIT OR SOLDER POST

100-300 POSITIONS

NO CENTER MOUNTING

FEATURE

LR49571

E60980

HYSICAL

ROPERTIES

Insulation Material: Glass filled thermoplastic

rated UL 94V-0

Color: Black

Contacts: Copper alloy, nickel plate overall, 30

microinches gold plating in contact zone, tin/lead

or gold on posts

LECTRICAL

ROPERTIES

Current Rating: 2 amps/pin

Insulation Resistance: >1 x 10

0hms

Dielectric Strength: > 1000 VDC at sea level

NVIRONMENTAL

ROPERTIES

Temperature Rating: -55˚C TO 125°C

OUNTING

ARDWARE

See pages 310-314

ELECTIVE

OADING

EQUENTIAL

ATING

See pages 308-309

Recommended Printed Circuit Board Layout

889-XDP4-W W W

889-100

RESSFIT

PPLICATION

OOLING

Installation Platen:

Pin Replacement Tool:

Ordering Information

NUMBER OF

POSITIONS

WWW

100

120

128

140

160

180

200

220

240

260

280

300

PART NUMBER

SPECIFY X, Y & Z

40100XY000-2Z

40120XY000-2Z

40128XY000-2Z

40140XY000-2Z

40160XY000-2Z

40180XY000-2Z

40200XY000-2Z

40220XY000-2Z

40240XY000-2Z

40260XY000-2Z

40280XY000-2Z

40300XY000-2Z

82.55 (3.250)

95.25 (3.750)

100.33 (3.950)

107.95 (4.250)

120.65 (4.750)

133.35 (5.250)

146.05 (5.750)

158.75 (6.250)

171.45 (6.750)

184.15 (7.250)

196.85 (7.750)

209.55(8.250)

74.93 (2.950)

87.63 (3.450)

92.71 (3.650)

100.33 (3.950)

113.03 (4.450)

125.73 (4.950)

138.43 (5.450)

151.13 (5.950)

163.83 (6.450)

176.53 (6.950)

189.23 (7.450)

201.93 (7.950)

64.77 (2.550)

77.47 (3.050)

82.55 (3.250)

90.17 (3.550)

102.87 (4.050)

115.57 (4.550)

128.27 (5.050)

140.97 (5.550)

153.67 (6.050)

166.37 (6.550)

179.07 (7.050)

191.77 (7.550)

60.96 (2.400)

73.66 (2 900)

78.74 (3.100)

86.36 (3.400)

99.06 (3.900)

111.76 (4.400)

124.46 (4.900)

137.16 (5.400)

149.86 (5.900)

162.56 (6.400)

175.26 (6.900)

187.96 (7.400)

TAIL LENGTH

6.35 (.250)

8.33 (.328)

13.54 (.533)

18.62 (.733)

3.05 (.120)

4.83 (.190)

CONTACT

STYLE

FLEX-FIT™

Compliant

Solder

Post

TAIL PLATING

100 microinches SN/PB

over 50 microinches NI

30 microinches AU over

50 microinches NI

eg. 403002C000-23

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

288
