R185405400: DescriptionRF Connector, Female, Panel Mount, Receptacle; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

R185405400 Overview

RF Connector, Female, Panel Mount, Receptacle

R185405400 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
Insertion loss	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	7/16
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Maximum operating frequency	7.5 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

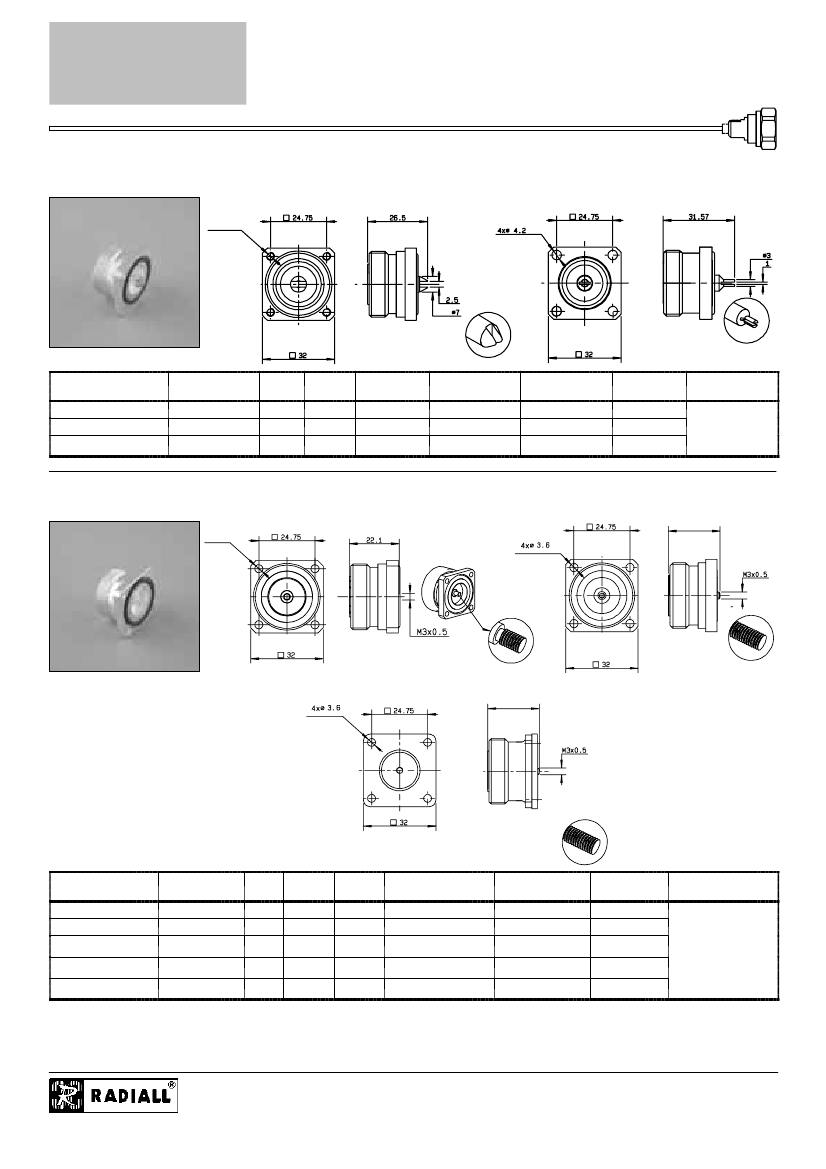

7/16

RECEPTACLES

STRAIGHT FLANGE FEMALE RECEPTACLES WITH SLOTTED CONTACT

4xA

Fig 1

Fig 2

part number

R185 404 200

R185 404 230

R185 404 240

capt. center

cont.

yes

fig.

1

2

dim. A

4 x 3.5

4xM3

4 x 4.2

panel

P05

P04

finish

Silver+Copper

Silver

Silver+Copper

slotted outer

contact

no

packaging

20

note

panel seal

STRAIGHT FEMALE RECEPTACLES WITH THREADED CONTACT

21.7

4xA

Fig 1

21.6

Fig 2

Fig 3

part number

R185 405 200

R185 405 230

R185 405 248

R185 405 250

R185 405 400

capt. center

cont.

yes

fig.

1

2

3

Dim.A

4 x 3.5

4 x M3

4 x 3.5

panel

P05

finish

Silver+Copper

Tin+Nickel

Silver+Copper

slotted outer

contact

no

yes

no

packaging

20

unit

20

note

panel seal -

flange mount

Manufactured upon request

Note : standard packaging = 20 pieces. For unit packaging, add ”W” after the P/N.

20

R185405400 Related Products

	R185405400	R185404240	R185404230	R185405248	R185405230	R185405250
Description	RF Connector, Female, Panel Mount, Receptacle	RF Connector, Female, Panel Mount, Solder Terminal, Receptacle	RF Connector, Female, Panel Mount, Screw Terminal, Receptacle	RF Connector, Female, Panel Mount, Receptacle	RF Connector, Female, Panel Mount, Screw Terminal, Receptacle	RF Connector, Female, Panel Mount, Receptacle
Maker	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CENTER CONTACT
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	SILVER	SILVER (197) OVER COPPER	SILVER	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
Insertion loss	0.14 dB	0.14 dB	0.14 dB	0.14 dB	0.14 dB	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	7/16	7/16	7/16	7/16	7/16	7/16
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	7.5 GHz	7.5 GHz	7.5 GHz	7.5 GHz	7.5 GHz	7.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	-	-
