DF3-8S-2C(50) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DF3-8S-2C(50)

DF3-8S-2C(50): DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

DF3-8S-2C(50) Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket

DF3-8S-2C(50) Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DF3
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

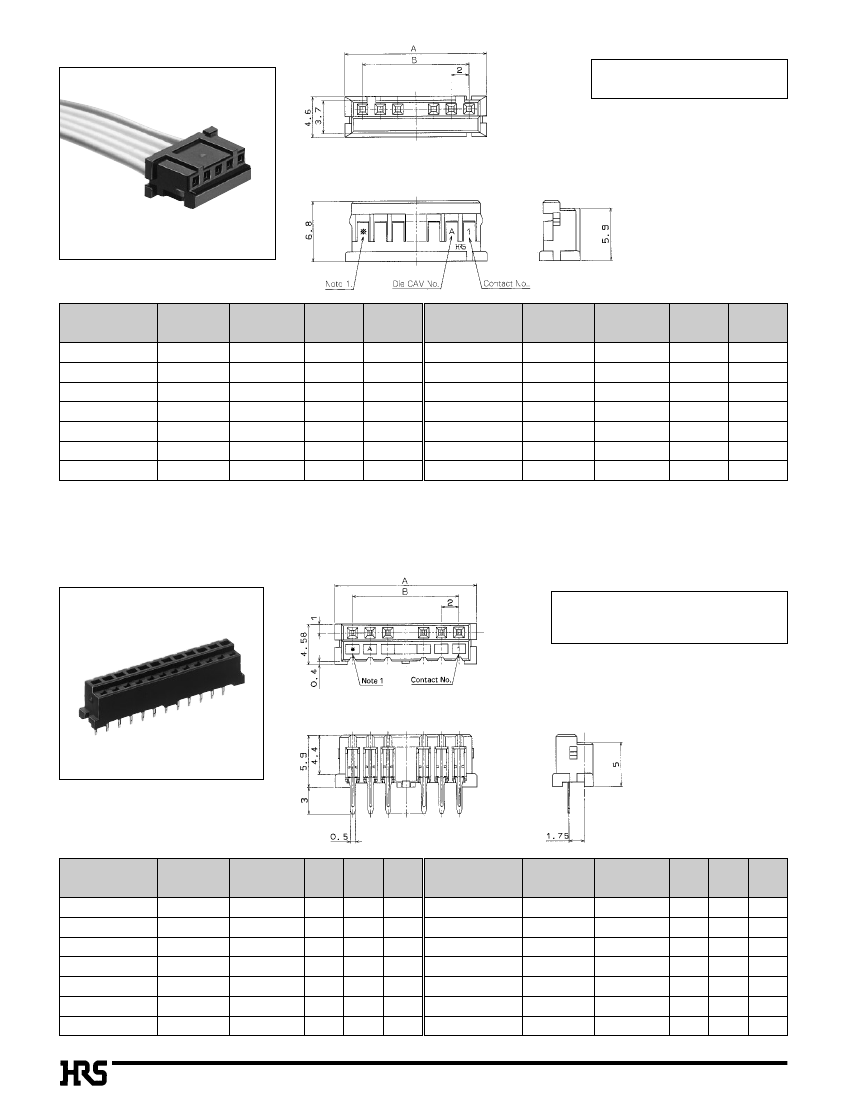

sCrimping

Socket

[Specific No.]

–

* *

Blank: 100 pieces per pack

This picture shows the Contact

crimped status.

Unit: mm

Part Number

CL No.

Number of Contacts

Part Number

CL No.

Number of Contacts

DF3-2S-2C(**) 543-0003-8-**

DF3-3S-2C(**) 543-0004-0-**

DF3-4S-2C(**) 543-0005-3-**

DF3-5S-2C(**) 543-0006-6-**

DF3-6S-2C(**) 543-0007-9-**

DF3-7S-2C(**) 543-0008-1-**

DF3-19S-2C(**) 543-0010-3-**

DF3-10S-2C(**) 543-0011-6-**

DF3-11S-2C(**) 543-0012-9-**

DF3-12S-2C(**) 543-0013-1-**

DF3-13S-2C(**) 543-0014-4-**

DF3-14S-2C(**) 543-0015-7-**

DF3-8S-2C(**) 543-0009-4-**

DF3-15S-2C(**) 543-0016-0-**

Note1: The product's contact number indicated.

Note2: The quantity for delivery of the specification No. "None" is determined per bag (100 pcs.).

If needed, please order the products per bag.

Note3: A quantity of "500 pieces package" and "1000 pieces package" for delivery is dealt with pieces. Order example: 500, 1000, and 1500 pieces...

sReceptacle

[Specific No.]

–

* *

(20) :Tin plated, Tube packaging

(50) :Gold plated, Tube packaging

Note1: The product's contact number indicated

qBoard

Through-hole Diameter:

Ø0.7

0.1

Unit: mm

Part Number

CL No.

Number of Contacts

Tube Package

Quantity

Part Number

CL No.

Number of Contacts

Tube Package

Quantity

24 pieces

DF3-2S-2DSA(**) 543-0048-6-**

DF3-3S-2DSA(**) 543-0049-9-**

DF3-4S-2DSA(**) 543-0050-8-**

DF3-5S-2DSA(**) 543-0051-0-**

DF3-6S-2DSA(**) 543-0052-3-**

DF3-7S-2DSA(**) 543-0053-6-**

80 pieces DF3- 9S-2DSA(**) 543-0055-1-**

DF3-10S-2DSA(**) 543-0056-4-**

DF3-11S-2DSA(**) 543-0057-7-**

DF3-12S-2DSA(

**)

543-0058-0-**

DF3-13S-2DSA(

**)

543-0059-2-**

DF3-14S-2DSA(**) 543-0060-1-**

14 27

DF3-8S-2DSA(**) 543-0054-9-**

DF3-15S-2DSA(

**)

543-0061-4-**

Note2: Please order the tube packaging at the multiplied tube packaging quantity (pieces).

A258
