PSS4020-150MB: DescriptionGeneral Purpose Inductor, 15uH, 20%, Ferrite-Core, 1515,; CategoryPassive components inductor; File Size215KB，4 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

PSS4020-150MB Overview

General Purpose Inductor, 15uH, 20%, Ferrite-Core, 1515,

PSS4020-150MB Parametric

Parameter Name	Attribute value
Objectid	1205388648
package instruction	1515
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1515
structure	Magnetic Shielded
core material	Ferrite
DC Resistance	0.331 Ω
Nominal inductance(L)	15 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Package height	1.8 mm
Package length	3.8 mm
Package form	SMT
Package width	3.8 mm
method of packing	Bulk
Maximum rated current	0.42 A
shield	YES
Tolerance	20%

Preview

Download Datasheet

View All

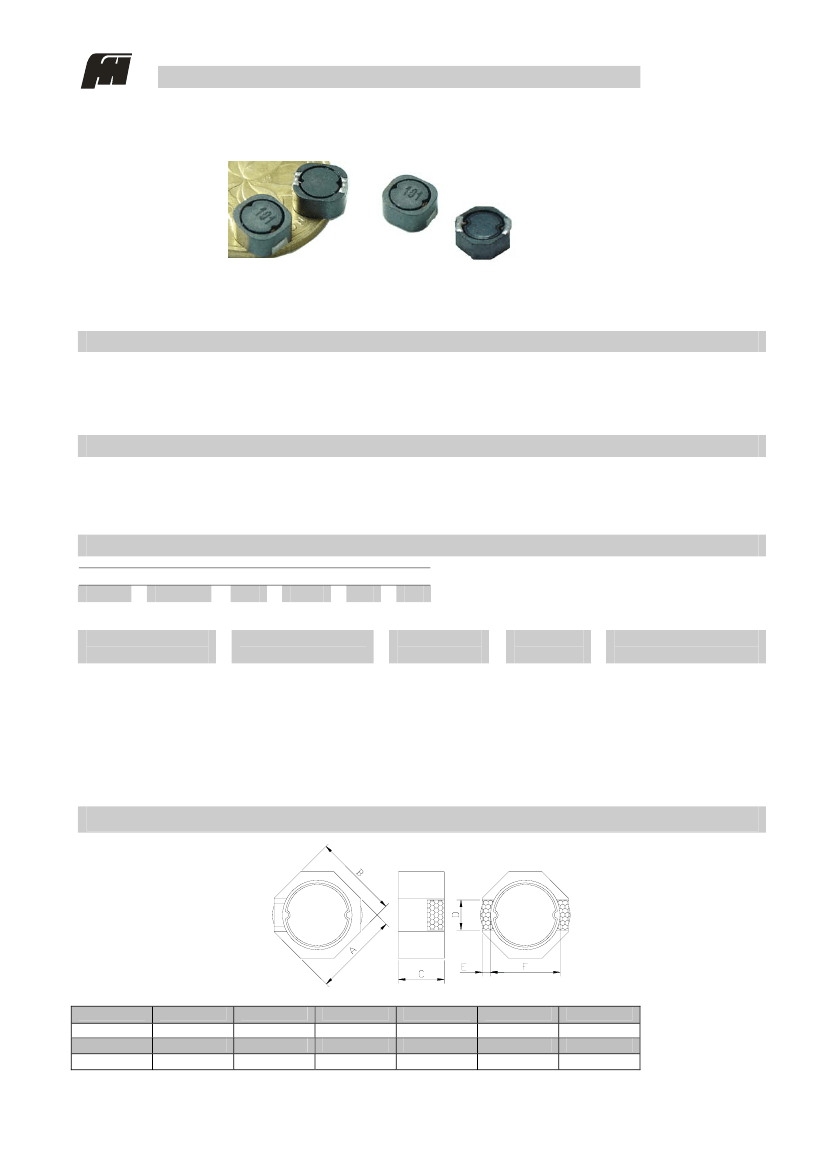

PSS

系列功率电感

PSS Series SMD Power Inductors

特征

FEATURES

·小尺寸、屏½结构

·RI

磁芯自带电极

·优异的高饱和性½

·适合于表面贴装

· Small size with magnetic shielded

· The electrode attached to the ferrite RI core directly

· Excellent property with high saturation

· Suitable for surface mounting

应用

APPLICATIONS

·移动通信,笔记本电脑

·LCD

显示屏

·移动终端设备

·DC/DC

½换

· OA equipment, Notebook Computer

· LCD monitor

· Portable terminal equipment

· DC/DC converters

产品规格型号表示方法

ORDERING CODE

PSS

①

产品代号

Code

PSS

系列

功率电感

5030

②

—

②

150

③

④

⑤

③

感量(µH)

Inductance

1R0

100

101

100

④

误差

Tolerance

M ±20%

N ±30%

⑤

包装方式

Packaging Style

Tape&Reel

Bulk

规格尺寸

Dimensions

(L×W×T) (mm)

4020

3.8×3.8×1.8

5020

5.0×5.0×2.0

5030

5.0×5.0×2.8

6025

6.0×5.6×2.5

6030

6.0×5.6×3.0

外½尺寸

Dimensions

单½(Unit)：mm

3R3

型号

Part

4020

5020

5030

3.8±0.2

5.0±0.3

3.8±0.2

5.0±0.3

1.8±0.2

2.0±0.3

2.8±0.3

1.5

1.7

0.5

3.0

4.1
