BI10-EG18F-AP6X-H1141 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI10-EG18F-AP6X-H1141

BI10-EG18F-AP6X-H1141: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size261KB，3 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI10-EG18F-AP6X-H1141 Overview

Inductive Sensor,

BI10-EG18F-AP6X-H1141 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	IP68, IP69K; REVERSE POLARITY PROTECTION; SHORT-CIRCUIT PROTECTION
body height	48.5 mm
Body length or diameter	18 mm
shell	STAINLESS STEEL
Installation features	FLUSH MOUNTING
Maximum working current	200 mA
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Output interface type	3-WIRE INTERFACE
Output type	PNP
Package Shape/Form	BARREL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensor

Stainless steel front

BI10-EG18F-AP6X-H1141

■

Threaded barrel, M18 x 1

■

Stainless steel, 1.4305

■

DC 3-wire, 10…30 VDC

■

NO contact, PNP output

■

M12 x 1 male connector

Wiring Diagram

Type designation

Ident-No.

Rated switching distance Sn

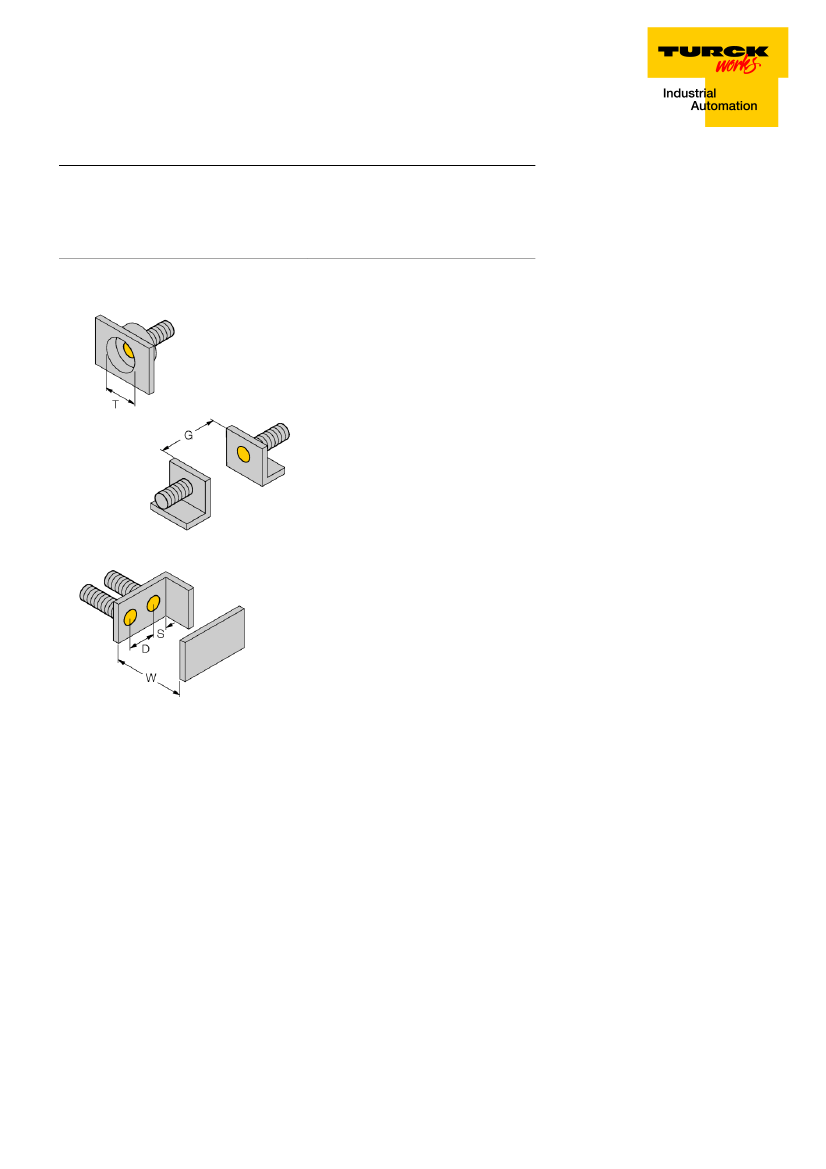

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Dimensions

Housing material

Active area material

End cap

Admissible pressure on front cap

Max. tightening torque housing nut

Electrical connection

Vibration resistance

Shock resistance

Protection class

MTTF

Packaging unit

Switching state

Edition • 2018-05-22T12:35:05+02:00

BI10-EG18F-AP6X-H1141

4614708

10 mm

Flush

(0,81 x Sn) mm

St37 = 1; Al = 1; Cu=0.8; stainless steel 1mm = 0.5;

stainless steel 2mm = 0.9; Ms = 1.2

5 % of full scale

± 10 %

3…15 %

-25…+70 °C

10…30 VDC

20 % U

200 mA

10 mA

0.1 mA

0.5 kV

yes/ Cyclic

yes/ Complete

3-wire, NO contact, PNP

0.2 kHz

Threaded barrel,M18 × 1

48.5 mm

Stainless steel, V2A (1.4305)

Stainless steel, 1.4305 (AISI 303)

Metal

60 bar

50 Nm

Connectors, M12 × 1

55 Hz (1 mm)

30 g (11 ms)

IP68/IP69K

377 years acc. to SN 29500 (Ed. 99) 20 °C

LED,Yellow,LED flashing: 0.8 s

< s

Functional principle

The inductive all-metal switches operate

on the basis of the electromagnetic pulse

method. Unlike standard inductive sensors,

the magnetic field is not generated through

oscillation but through short, periodic current

pulses flowing through the coil. The magnet-

ic field induces voltage in the object to be de-

tected, which, for its part creates a current

flow in this object. After switching off the cur-

rent pulse, the current in the object also drops,

now inducing voltage back in the emitter coil.

This voltage is the wanted signal and remains

unaffected by energy dissipation in the mag-

netic field. Only non-ferromagnetic or poorly

conductive metals provide a low signal.

1/3

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
