20010-004-H0 datasheet, PDF - EEWORLD Datasheet

20010-004-H0: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerI-PEX Co., Ltd.

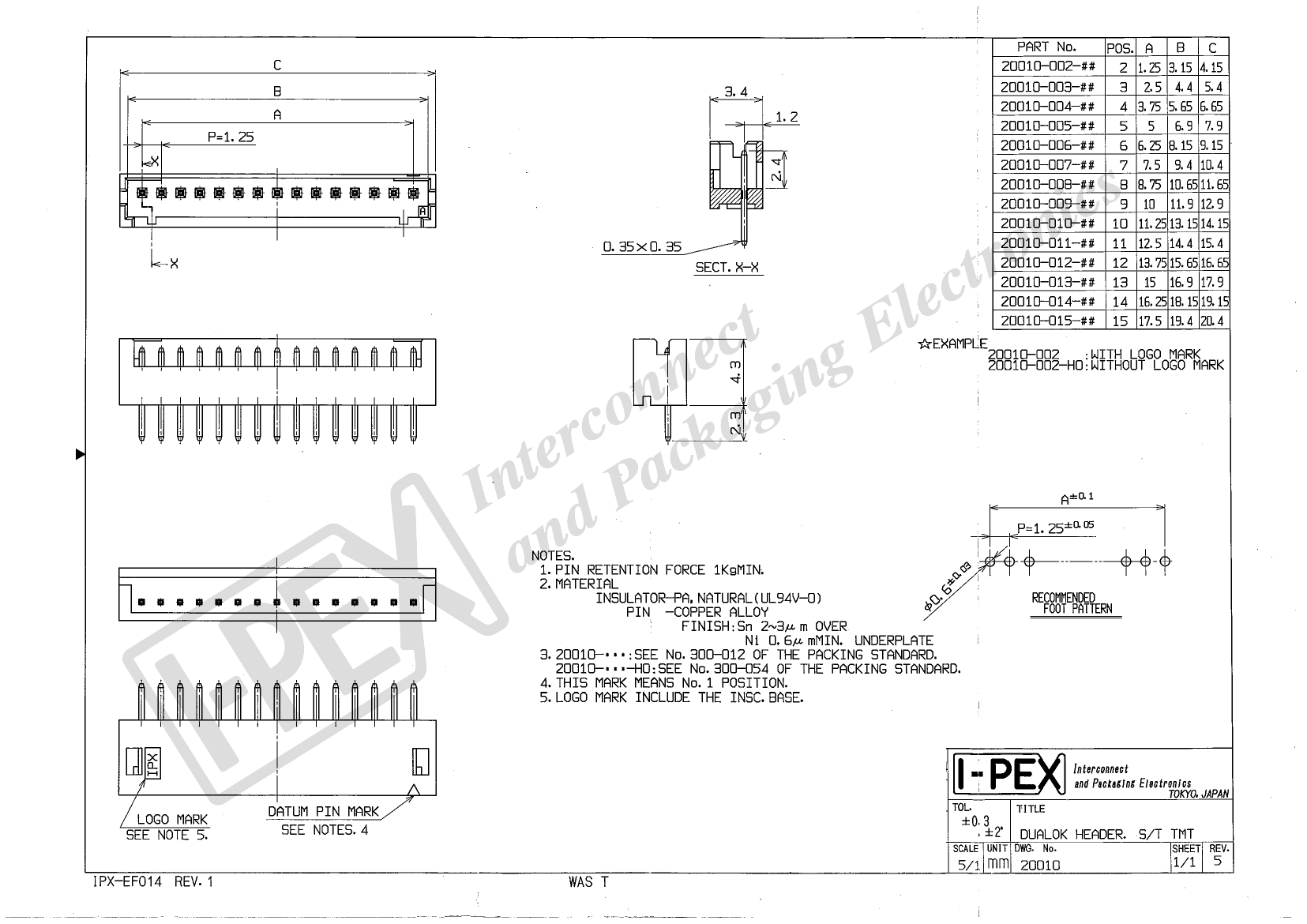

Download Datasheet Parametric View All

20010-004-H0 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle

Parameter Name	Attribute value
Objectid	304408031
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.134 inch
subject depth	0.169 inch
body length	0.262 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	50 Cycles
Filter function	NO
maximum insertion force	4.8928 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.091 inch
Terminal pitch	1.2446 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	.5004 N
