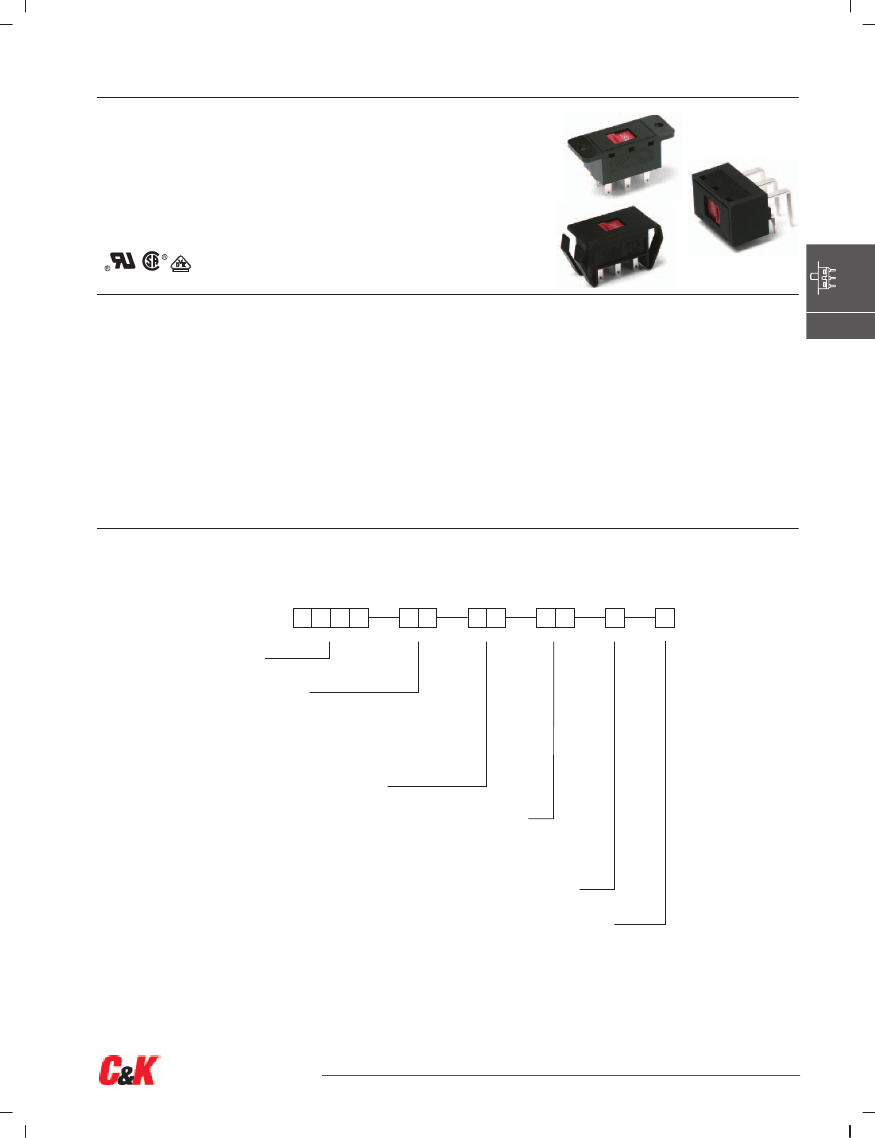

V Series
Power & Line Voltage Select Slide Switches
Features/Benefits
•
Ratings up to 10 AMPS
•
Snap-in panel and PC mounting
•
Actuators with screwdriver slot
•
Quick connect terminals available
•
RoHS compliant
Typical Applications
•
Appliances
Models Available
Specifications
CONTACT RATING: 10.1 AMPS @ 125 V AC; 4 AMPS @ 28 V DC;
5 AMPS @ 250 V AC (UL/CSA). 2.0 (0.5) AMPS @ 250 V AC,
T85 (VDE).
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial
@ 2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to +85ºC.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
TOP PLATE: 6/6 nylon (UL94V-2), black.
ACTUATOR: Glass filled polyester (UL94V-0), ‘01 and 02’ styles,
black (standard); ‘12, 13 and 14’ styles, red (standard).
CONTACTS: Copper, silver plated.
TERMINALS: Copper, silver plated.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
I
Slide
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages I–34 through I–36. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
V802
DPDT
V701
SPST
Actuator
V702
SPDT
12
Screwdriver slot
V801
DPST
01
.290" high
02
.290" high with markings
13
Screwdriver slot
14
Screwdriver slot with markings
Mounting Style
SS
Panel with mounting ears
MA
Right angle, PC thru-hole
MS
PC Thru-hole
S2
Snap-in panel
SL
Right angle, panel with
mounting ears
Terminations
05
Quick connect
02
PC thru-hole
08
Right angle PC thru-hole
Contact Material
Q
Silver
Seal
NONE
No seal
E
Epoxy seal
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–33
www.ck-components.com
V Series
Power & Line Voltage Select Slide Switches

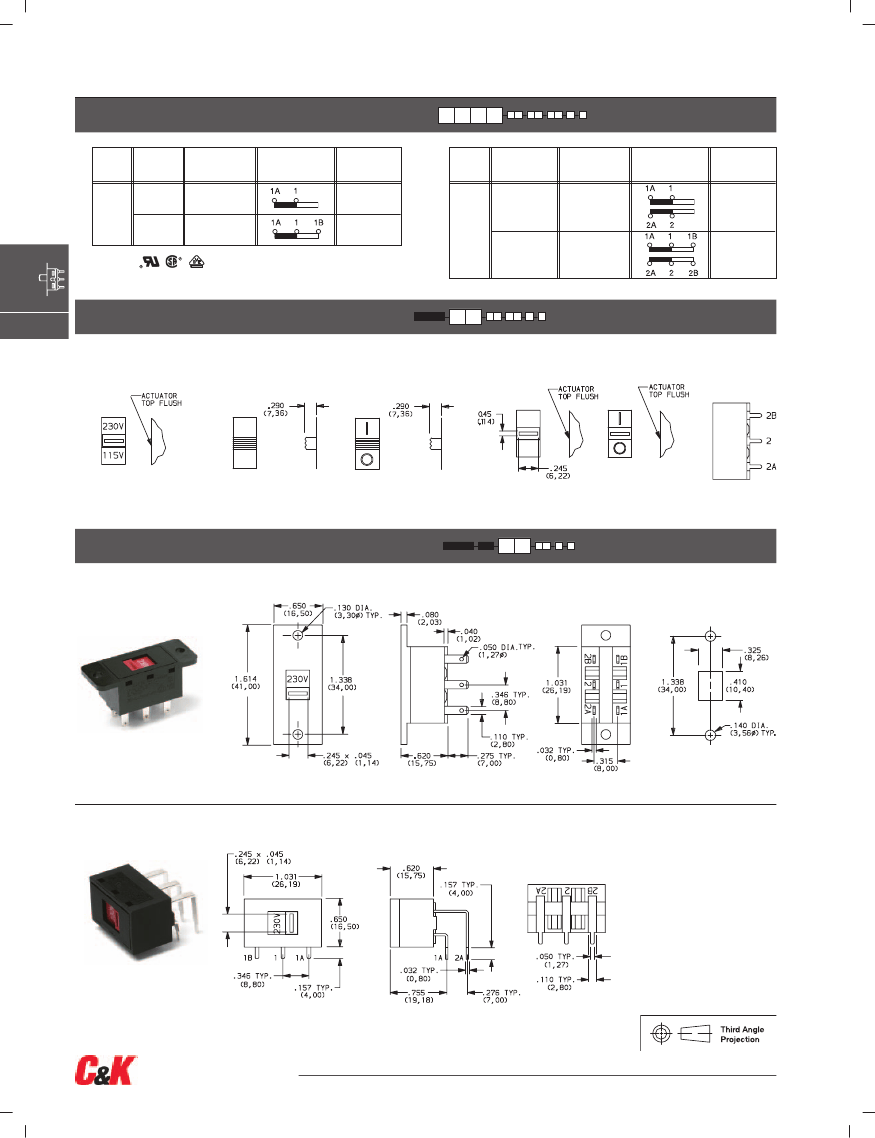

SWITCH FUNCTION
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
SPST
AVAILABLE
MOUNTING
STYLES
ALL
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
AVAILABLE
MOUNTING
STYLES
SCHEMATIC
SCHEMATIC
V701
SP
V801
DP
DPST
ALL
V702
SPDT
ALL
V802
All models
with all options.
Contacts make on side actuator thrown.
DPDT
ALL
I
Slide
12
SCREWDRIVER SLOT
WITH MARKING
ACTUATOR
01
.290" HIGH
02
.290" HIGH
WITH MARKINGS
13
SCREWDRIVER SLOT
NO MARKING
14
SCREWDRIVER SLOT
WITH MARKINGS
Actuator color is red with white
115V-230V markings (std.).
Actuator color is black.
markings are reversed on V702
and V802 models. Actuator color
is black with white markings (std.).
Actuator color is red.
Markings are reversed on
V702 and V802 models.
Note:
Orientation of
Actuator color is red with actuator markings
and terminals.
white markings (std.).
MOUNTING STYLE
SS
PANEL WITH MOUNTING EARS
PANEL MOUNTING
V80212SS05Q
DPDT
AVAILABLE WITH:
Models: All.
Terminations:
02 and 05
MA
RIGHT ANGLE, PC THRU-HOLE
AVAILABLE WITH:
Models:
All
Terminations:
08
PC MOUNTING
PC mount, side actuated.
For mounting information,
see TERMINATIONS section, page I-36.
V80212MA08Q

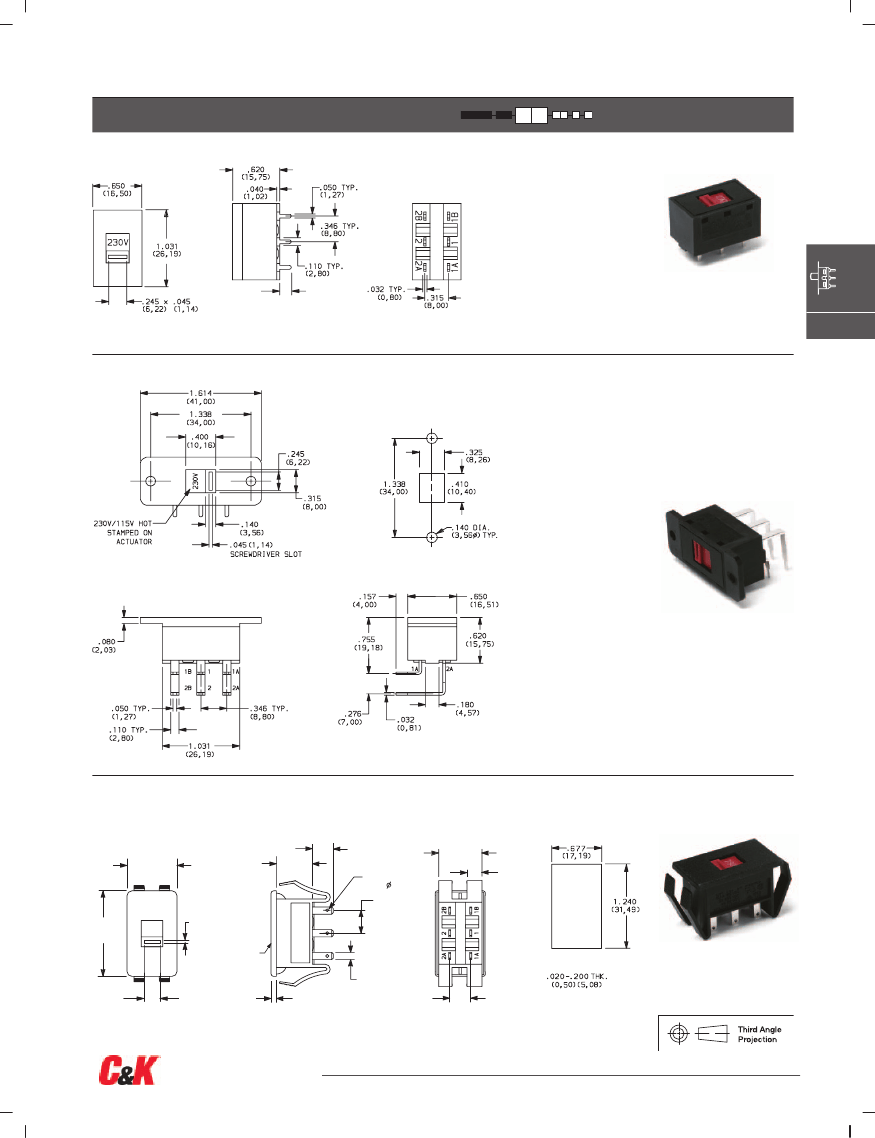

Horizontal Actuation
DPDT
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
I–34
www.ck-components.com
V Series
Power & Line Voltage Select Slide Switches
MOUNTING STYLE
MS
PC THRU-HOLE
AVAILABLE WITH:
All models with 02 terminations
PC MOUNTING
PC mount, top actuated.
For mounting information,
see TERMINATIONS section, page I-36.
.175
(4,45)
V80212MS02Q
DPDT
I
Slide
SL
RIGHT ANGLE PANEL WITH MOUNTING EARS
PANEL MOUNTING
AVAILABLE WITH:
All models with 08 terminations
V80213SL08Q
Horizontal Actuation
DPDT
S2
SNAP-IN PANEL MOUNT
PANEL MOUNTING
.315
(8,00)
.050 DIA. TYP.
(1,30 )
.346 TYP.
(8,80)
1.300
(33,02)
?
?
.750
(19,05)
.540
(13,72)
.650
(16,50)
.200 TYP.
(5,08)
.045 x .045 DEEP
(1,14) x (1,14)
ACTUATOR TOP
FLUSH
.110 x .032 TYP.
(2,79) x (0,80)
.315
(8,00)
V80212S205Q
Panel thickness:
DPDT
.245
(6,22)
.080
(2,03)
AVAILABLE WITH:
All models with 02 &
05 terminations
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–35
www.ck-components.com
V Series
Power & Line Voltage Select Slide Switches

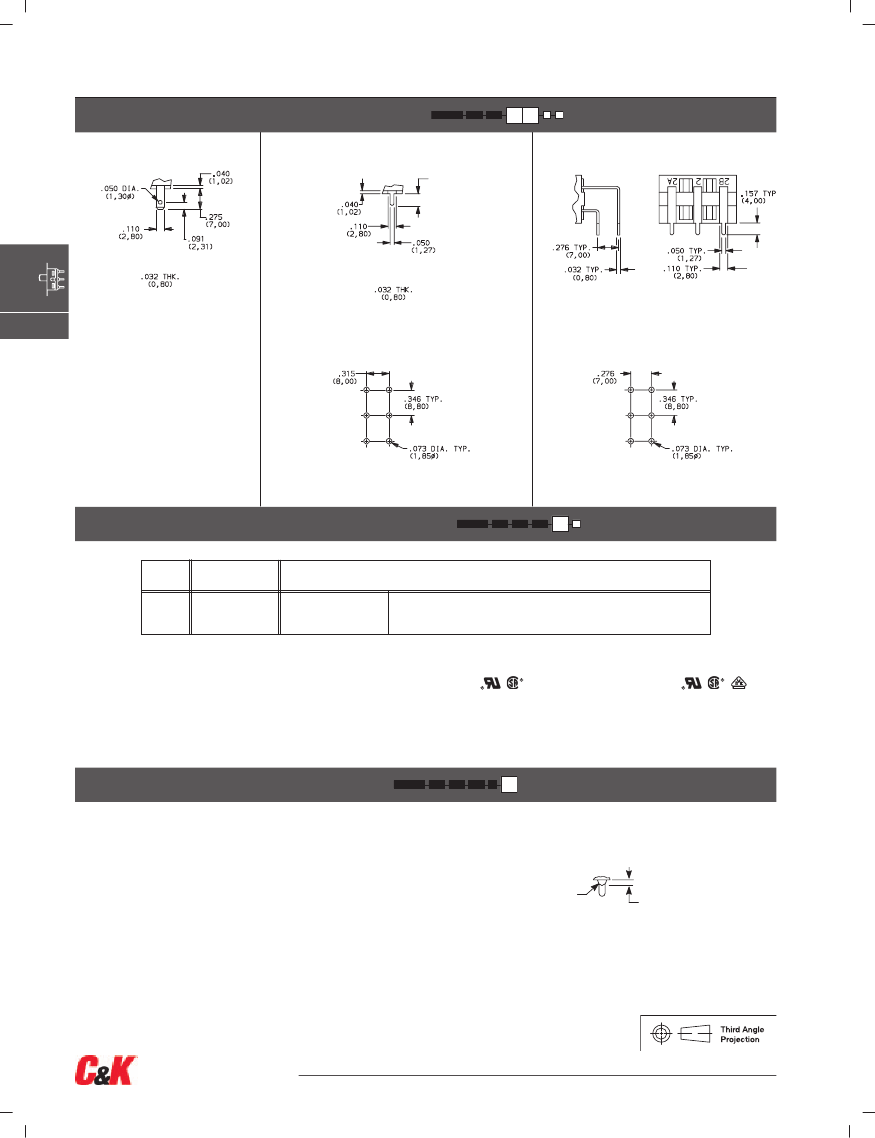

TERMINATIONS
05
QUICK CONNECT
02
PC THRU-HOLE
.175
(4,45)
08
PC THRU-HOLE
Fits .110 in. quick connector.
Not available with ‘MS, SS or S2’ mounting styles.
I
Slide
PC MOUNTING
PC MOUNTING
MS, SS Mounting Styles.
MA, SL Mounting Styles.
CONTACT MATERIAL
OPTION
CODE
CONTACT
MATERIAL
RATINGS
Q
SILVER
1
POWER
10.1 AMPS @ 125 V AC; 4 AMPS @ 28 V DC; 5 AMPS @
250 V AC (UL/CSA); 2.0 (0.5) AMPS @ 250 V AC, T85 (VDE).
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
CONTACTS & TERMINALS: Copper, silver plated (standard with all termination options).
All models
with all options. V70X and V80X models
.
NOTE:
Any models supplied with Q contact material are RoHS compliant.
SEAL
NONE
NO SEAL
E
EPOXY SEAL
EPOXY
.075 MAX.
(1,91)
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
I–36
www.ck-components.com
