54H04DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54H04DMQB

54H04DMQB: DescriptionInverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size63KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54H04DMQB Overview

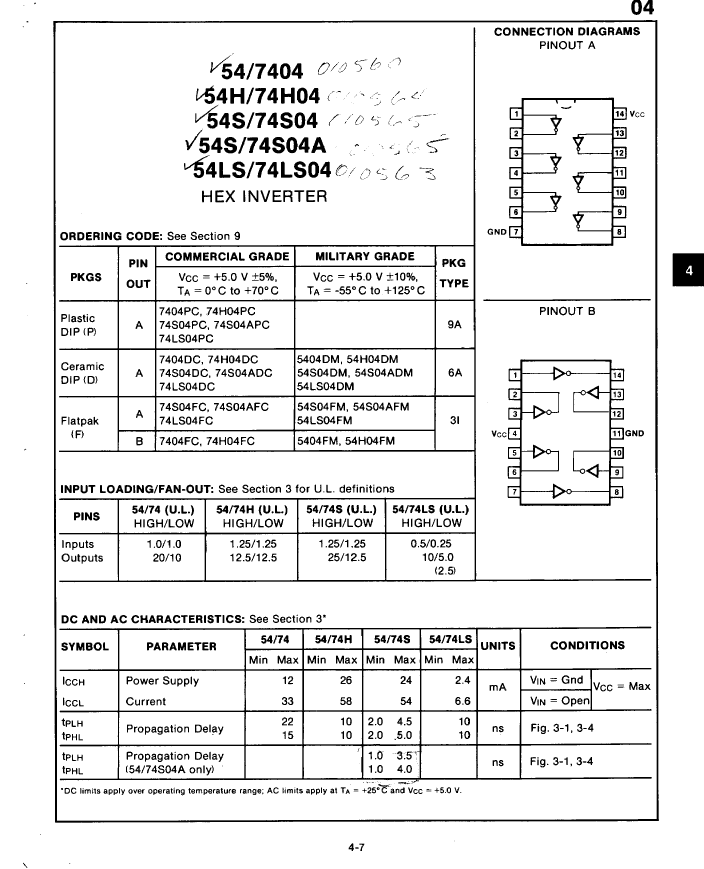

Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14

54H04DMQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	CERAMIC, DIP-14
Reach Compliance Code	unknown
series	TTL/H/L
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.02 A
Humidity sensitivity level	2A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
Maximum supply current (ICC)	58 mA
Prop。Delay @ Nom-Sup	13 ns
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

54H04DMQB Related Products

	54H04DMQB	54H04FMQB	74H04DCQM	74H04DCQR	74H04PCQM	74H04PCQR	74H04FCQM	74H04FCQR
Description	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, PDFP14, DFP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, PDIP14, PLASTIC, DIP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, PDIP14, PLASTIC, DIP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, PDFP14, DFP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, PDFP14, DFP-14
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CERAMIC, DIP-14	DFP-14	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant
series	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L
JESD-30 code	R-CDIP-T14	R-PDFP-F14	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDFP-F14	R-PDFP-F14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A	2A
Number of functions	6	6	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP	DIP	DIP	DIP	DFP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250	250
Maximum supply current (ICC)	58 mA	58 mA	58 mA	58 mA	58 mA	58 mA	58 mA	58 mA
Prop。Delay @ Nom-Sup	13 ns	13 ns	13 ns	13 ns	13 ns	13 ns	13 ns	13 ns
propagation delay (tpd)	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30
Maker	Fairchild	Fairchild	-	-	Fairchild	Fairchild	Fairchild	Fairchild
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	-
Base Number Matches	1	1	1	1	1	1	-	-
