5510-62P-01-01: DescriptionD Subminiature Connector, 62 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, #4-40unc,; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

5510-62P-01-01 Overview

D Subminiature Connector, 62 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, #4-40unc,

5510-62P-01-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145154604430
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.494 inch
subject depth	0.55 inch
body length	2.729 inch
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.095 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40UNC
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL,CSA,TUV
Shell surface	NICKEL
Shell material	IRON
Housing size	4/C
Terminal length	0.13 inch
Terminal pitch	2.41 mm
Termination type	SOLDER
Total number of contacts	62
UL Flammability Code	94V-0

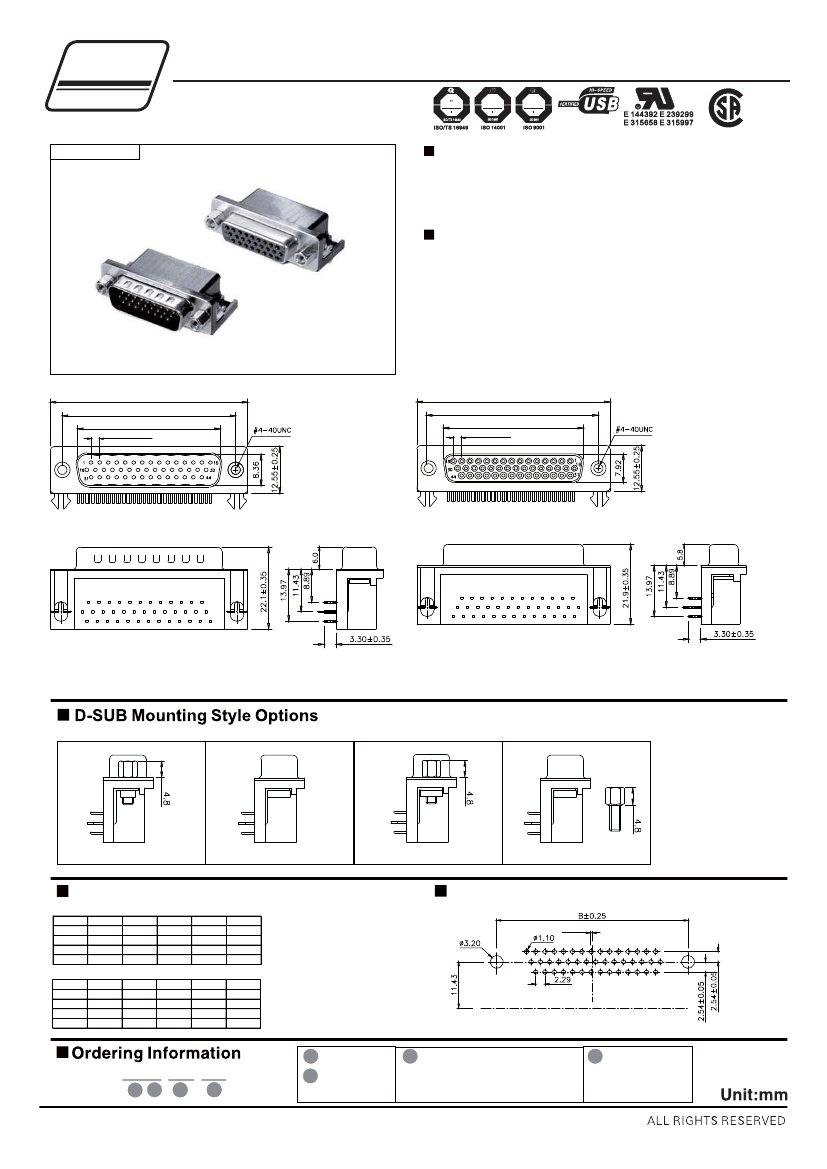

5510-62P-01-01 Preview

Neltron

Connectors

RoHS Compliant

D-SUB Series

-SUB

High Density R / A T

ype

TUV

SUD

TUV

SUD

TUV

SUD

Speciﬁcations

1. Current Rating: 3.0A AC/DC.

2. Voltage Rating: 500V AC/DC.

3. Contact Resistance: 25m ohm. max.

4. Insulation Resistance: 1000M ohm. Min.

5. Withstanding Voltage: 500V AC for one minute.

6. Operating Temperature Range:-55 to +105 .

Material and Finish

1. Insulator: PBT(UL94V-0)

2. Contact :Copper Alloy Nickel Undercoated,

Gold Plated

3. Shell:Metal Iron

Nickel Plated

Dim C

0.35

Dim B

0.25

Dim A

0.13

Dim D

0.10

Dim C

0.35

Dim B

0.25

Dim A

0.13

Dim D

0.10

P/N: 5510-XXP-XX

P/N: 5510-XXS-XX

01 Type

02 Type

02A Type

02B Type

Engineering Dimension

P/N: 5510-XXP-XX

Circuits Dim. A Dim. B

16.92

24.99

25.25

33.32

38.96

47.04

55.42

63.50

P/N: 5510-XXS-XX

Circuits Dim. A Dim. B

16.33

24.99

24.66

33.32

38.38

47.04

54.84

63.50

Dim.C

30.81

39.14

53.04

69.32

Dim. D

2.29

2.41

Dim. E

0.25

0.51

0.58

Recommended PCB Layout

Dim E

Dim.C

30.81

39.14

53.04

69.32

Dim. D

2.29

2.41

Dim. E

0.25

0.51

0.58

No. of Contacts

01:Board Lock/Hex Screw

02:Rivet W/Board Lock

02A:Rivet W/Board Lock/Hex Screw

02B:Rivet W/Board Lock/

Attached Hex Screw

01:Gold plated

03:Selective Gold

Plated

5510- XXP - XX - XX

P:Male

S:Female

2017-2026
