EK17D-H

Description
Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Beige Insulator, Receptacle
CategoryThe connector    The connector
File Size161KB,1 Pages
ManufacturerAUK Contractors Co., Ltd.

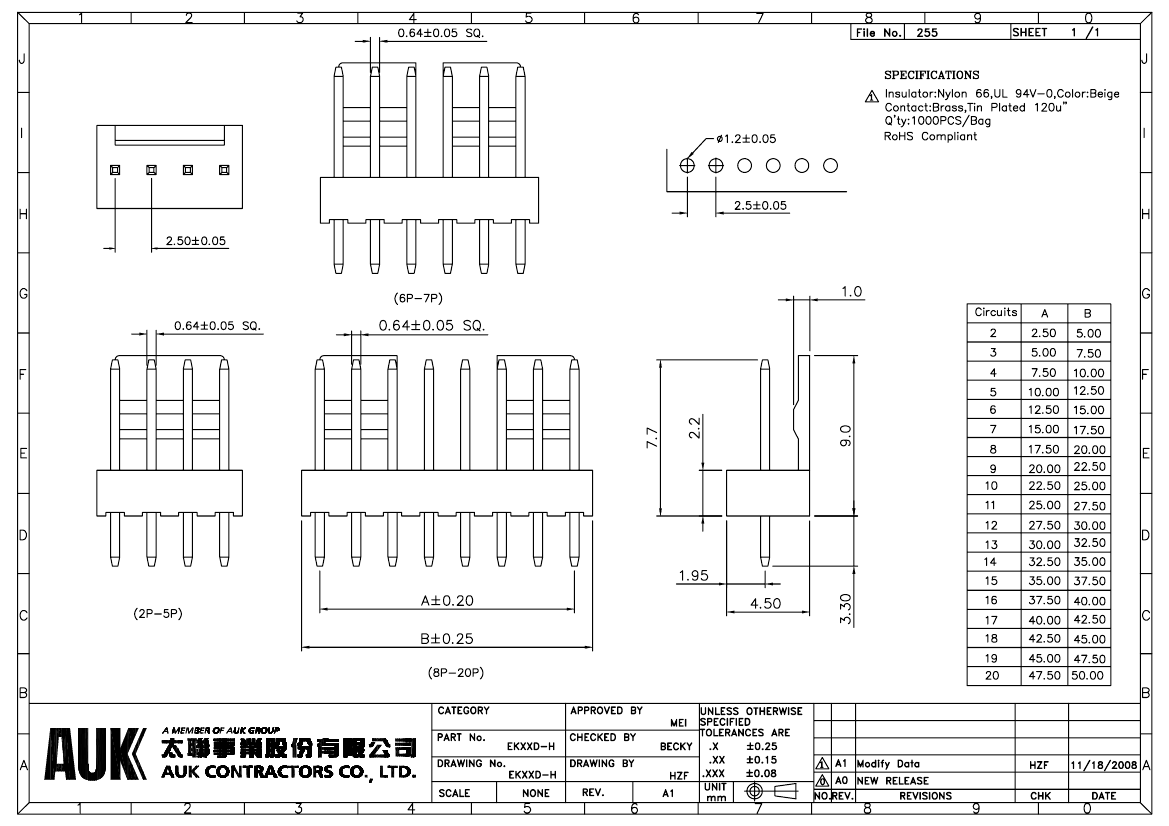

Download Datasheet Parametric View All

EK17D-H Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Beige Insulator, Receptacle

EK17D-H Parametric

Parameter NameAttribute value
Objectid304403026
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.177 inch
subject depth0.354 inch
body length1.673 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Filter functionNO
Insulator colorBEIGE
insulator materialPOLYAMIDE
Plug contact pitch0.098 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
Plating thickness120u inch
GuidelineUL
Terminal length0.13 inch
Terminal pitch2.4892 mm
Termination typeSOLDER
Total number of contacts17
