151206-2420TH datasheet, PDF - EEWORLD Datasheet

151206-2420TH: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.079 PITCH,NATURAL; CategoryThe connector The connector; File Size122KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

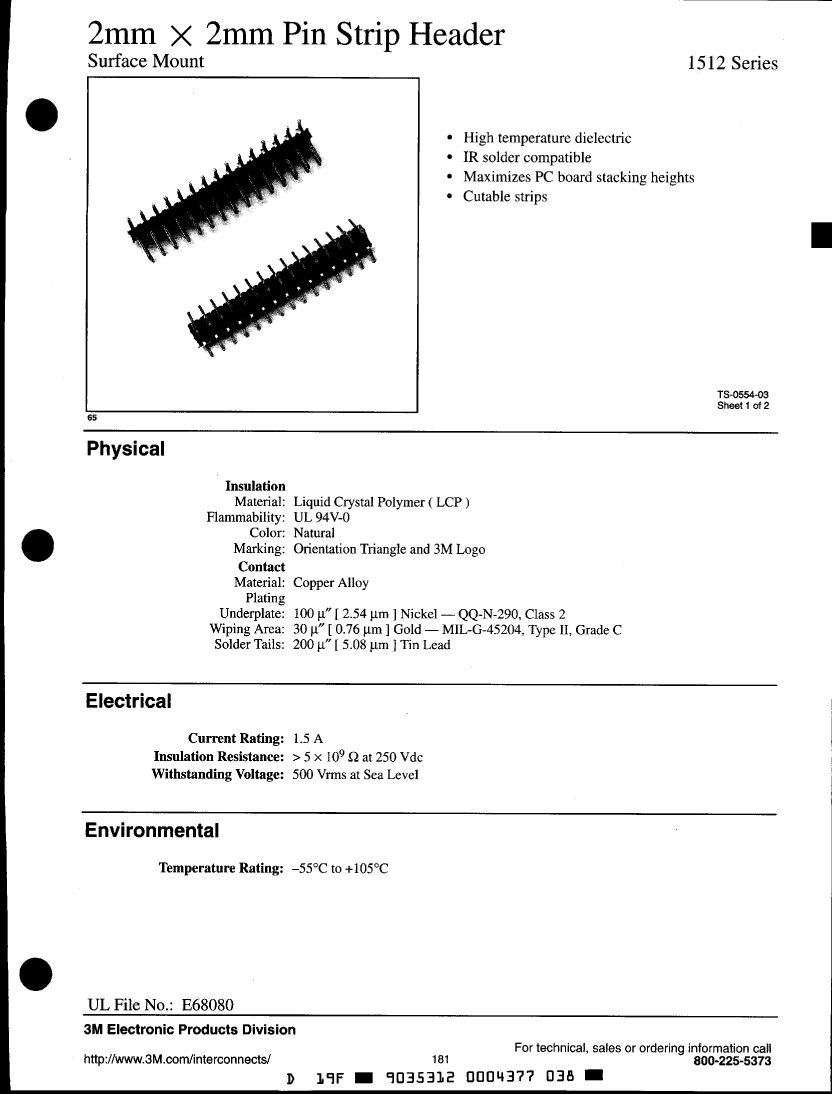

151206-2420TH Overview

HEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.079 PITCH,NATURAL

Parameter Name	Attribute value
Objectid	301223298
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0

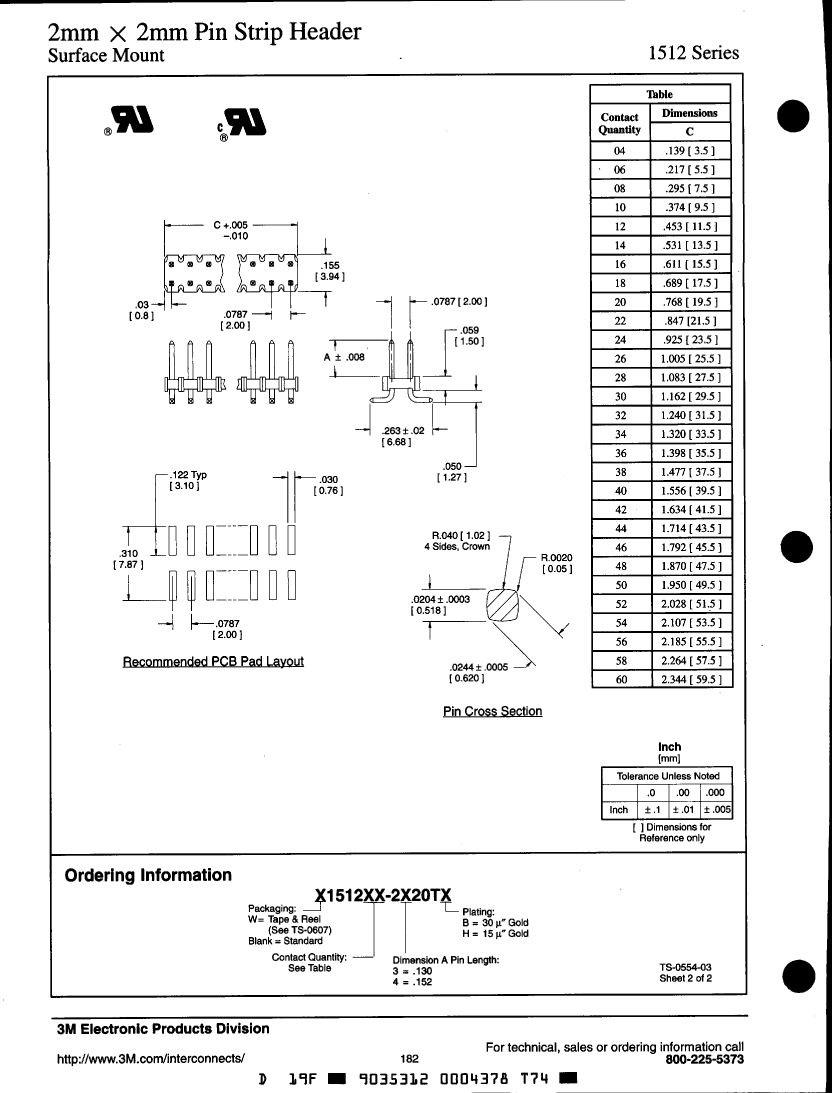

body width	0.155 inch
subject depth	0.059 inch
body length	0.217 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.7752 mm
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
Terminal pitch	2.0066 mm
Total number of contacts	6
