Part Number

Search

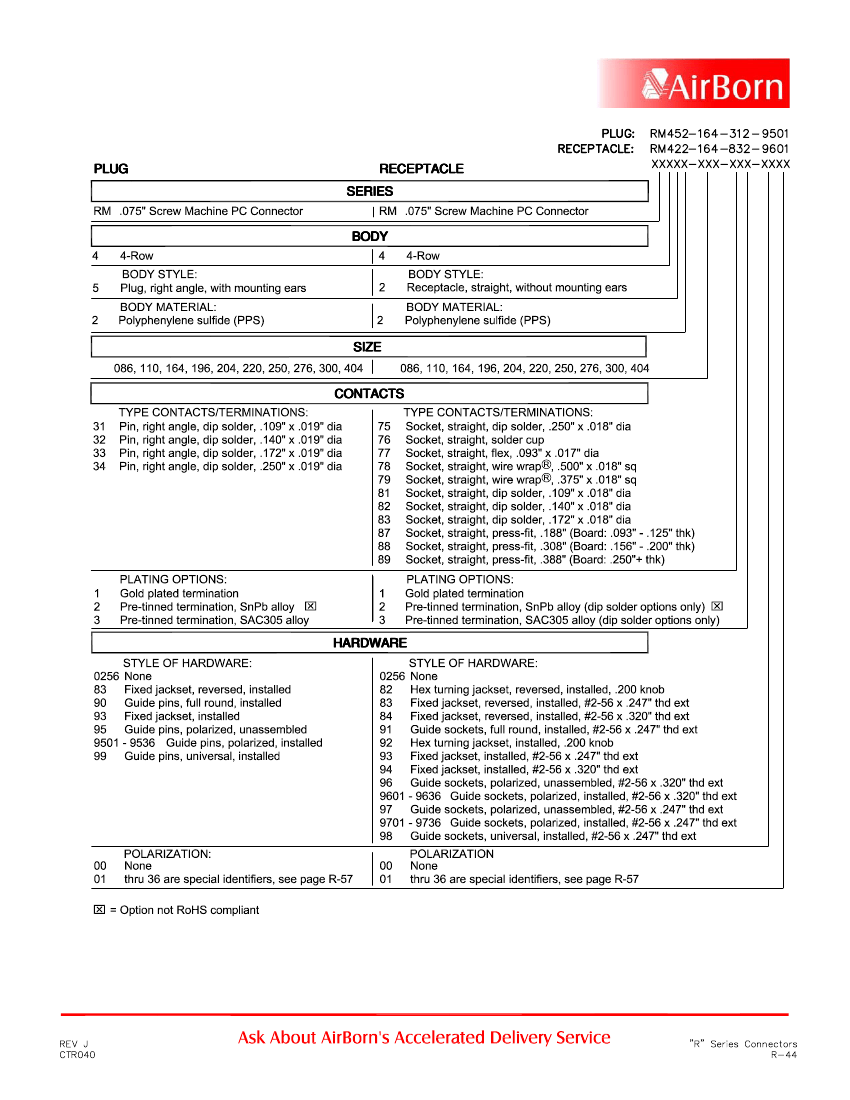

RM422-276-772-9601

Description
Board Connector, 276 Contact(s), 4 Row(s), Female, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size970KB,3 Pages
ManufacturerAirBorn
Download Datasheet Parametric View All

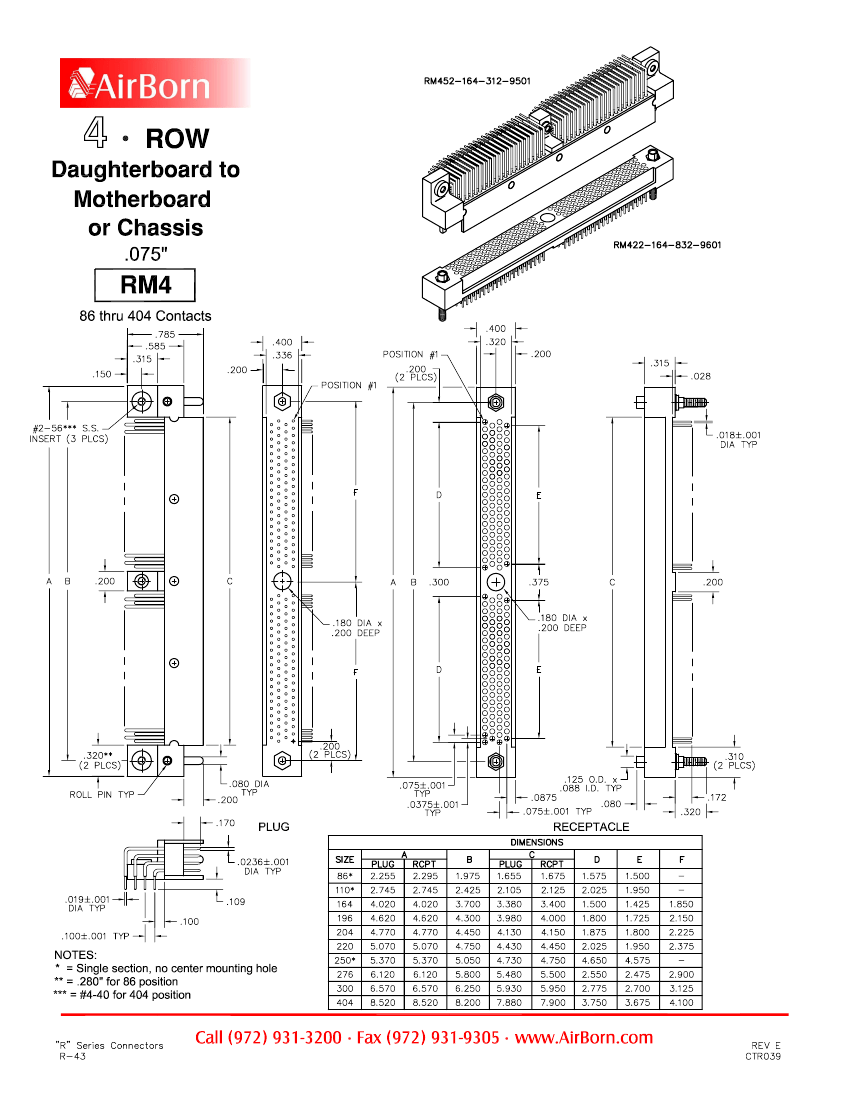

RM422-276-772-9601 Overview

Board Connector, 276 Contact(s), 4 Row(s), Female, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle

RM422-276-772-9601 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAirBorn
Reach Compliance Codecompliant
body width0.4 inch
subject depth0.315 inch
body length6.12 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN/LEAD
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeSTAGGERED
Contact resistance15 mΩ
Contact styleRND PIN-SKT
Durability500 Cycles
maximum insertion force.695 N
Insulation resistance5000000000 Ω
insulator materialPOLYPHENYLENE SULPHIDE
Manufacturer's serial numberRM
Plug contact pitch0.075 inch
Match contact row spacing0.075 inch
Installation option 1LOCKING

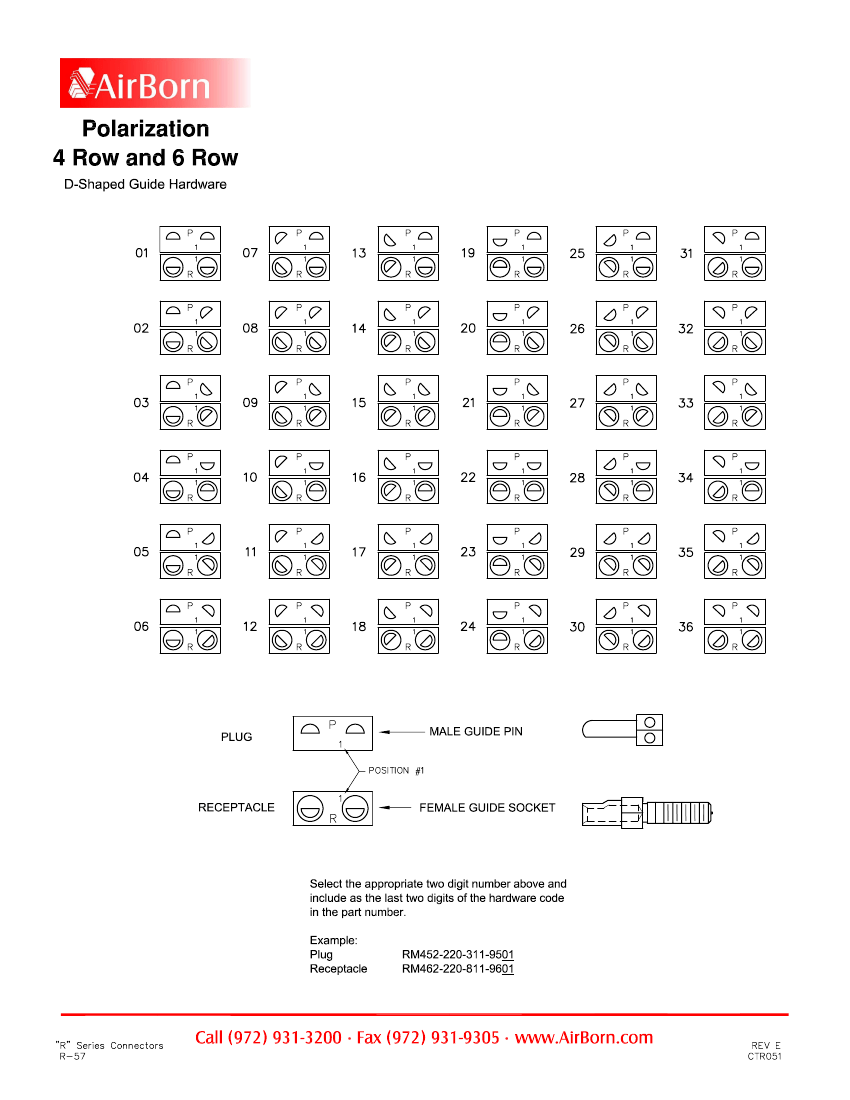

Installation option 2GUIDE SLOT
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Rated current (signal)3 A
reliabilityCOMMERCIAL
Terminal length0.093 inch
Terminal pitch1.905 mm
Termination typeSOLDER
Total number of contacts276
Base Number Matches1
