56-745-027 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 56-745-027

56-745-027: DescriptionRectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,; CategoryThe connector The connector; File Size456KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

56-745-027 Overview

Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,

56-745-027 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG-RECEPTACLE
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	700
Mixed contacts	NO
触点数量:侧 1	50
触点数量:侧 2	50
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ZINC ALLOY
direct connection	YES
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

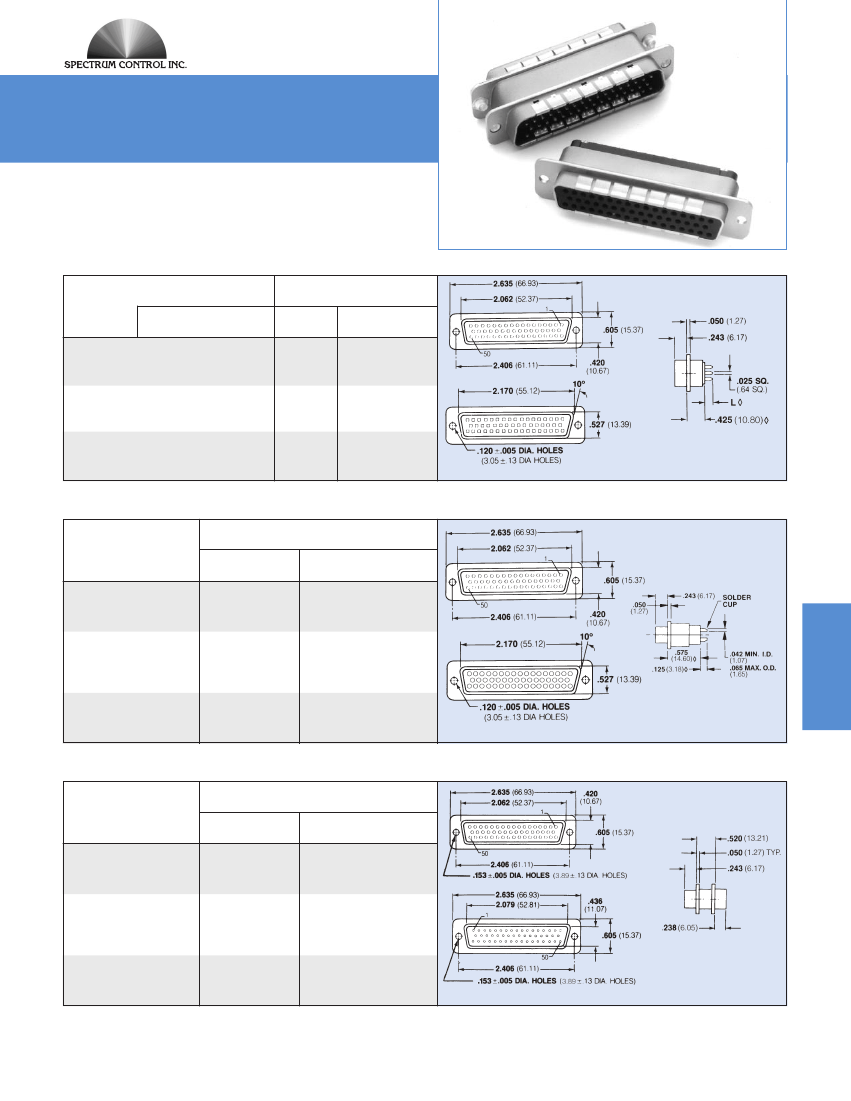

Shell Size

Series 700

Socket Contact &

Pin/Socket Adapter

Solderless Wire Wrap

Spectrum Part Number

Select one

EMI Filter

Filter

Desig.**

Cap. Value

310

1000

5000

4000

830

100

2500

375

pF Pi

pF C

pF Pi

pF C

pF Pi

pF C

pF Pi

pF C

56-743

.500

-006

-007

-008

-009

-010

-030

-031

-032

-036

.375

-016

-017

-018

-019

-020

-027

-028

-029

-035

.250

-011

-012

-013

-014

-015

-024

-025

-026

-034

Mating Face

Side View

Termination Face

Solder Cup Termination

Spectrum

Part

Number

56-746-001

56-746-002

56-746-003

56-746-004

56-746-005

56-746-006

56-746-007

56-746-008

56-746-009

56-746-018

EMI Filter

Filter

Designation**

Cap. Value

310

1000

5000

4000

830

100

2500

375

500

pF Pi

pF C

pF Pi

pF C

pF Pi

pF C

pF Pi

pF C

Mating Face

Side View

Termination Face

Pin/Socket Adapter

Spectrum

Part

Number

* 56-745-001

56-745-002

* 56-745-003

56-745-004

* 56-745-005

56-745-006

56-745-007

56-745-008

56-745-019

56-745-027

EMI Filter

Filter

Designation**

Cap. Value

310

1000

5000

4000

830

100

2500

375

500

pF Pi

pF C

pF Pi

pF C

pF Pi

pF C

pF Pi

pF C

Socket Face

Side View

Pin Face

Dimensions in inches

(mm)

* May be available from distributor stock.

** See page 146 for filter performance.

Standard Tolerance = ±.005 except where noted,

◊

= ±.015

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

167

Filtered Connectors

56-745-027 Related Products

	56-745-027	56-745-006	56-745-004	56-745-019	56-745-008	56-745-002	56-745-007
Description	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,	Rectangular Connector Adapter, 50 Contacts(Side1), 50 Contacts(Side2), Male-Female,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Body/casing type	PLUG-RECEPTACLE	PLUG-RECEPTACLE	PLUG-RECEPTACLE	PLUG-RECEPTACLE	PLUG-RECEPTACLE	PLUG-RECEPTACLE	PLUG-RECEPTACLE
Connector type	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	YES	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	700	700	700	700	700	700	700
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
触点数量:侧 1	50	50	50	50	50	50	50
触点数量:侧 2	50	50	50	50	50	50	50
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY
direct connection	YES	YES	YES	YES	YES	YES	YES
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	-
