CS010G20C-C0: DescriptionSingle Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size202KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

CS010G20C-C0 Overview

Single Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

CS010G20C-C0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1.60 X 0.80 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	unknow
color	GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	15.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	565 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

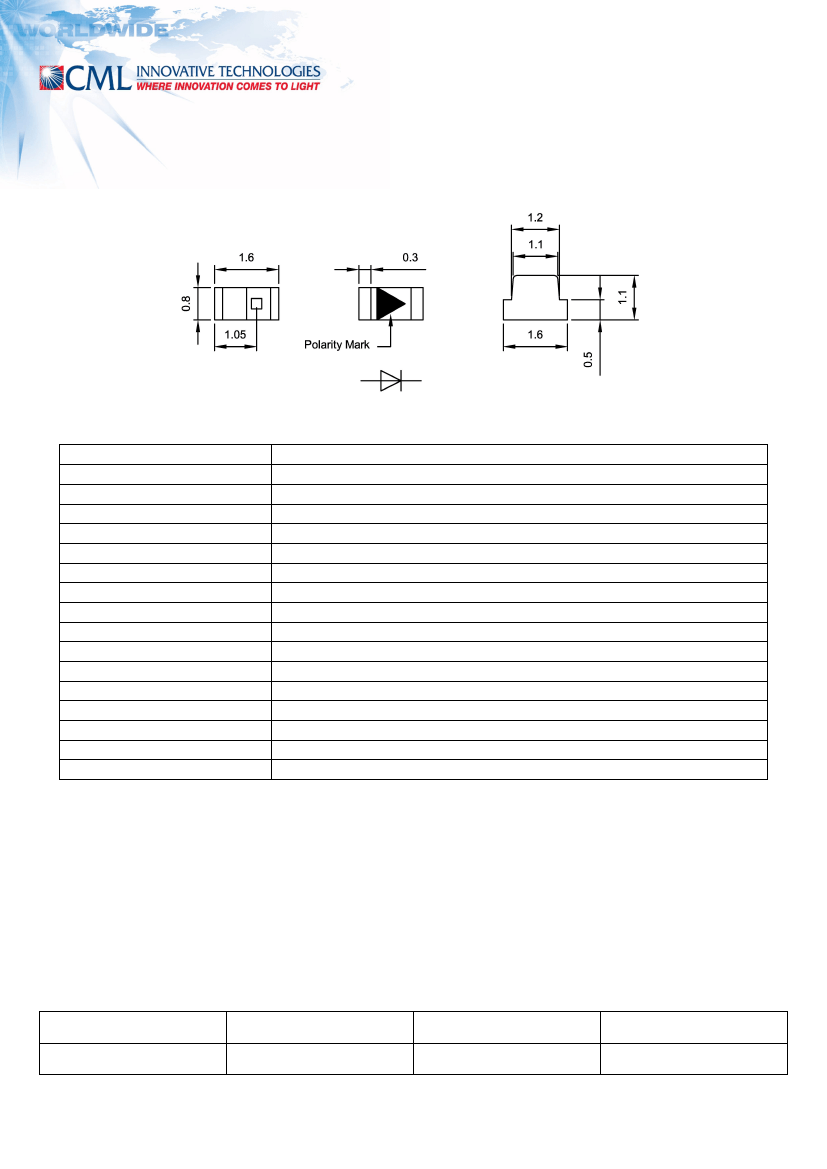

Part Number : CS010G20C-C0

Serial Number : CS010

LEDs

Led type

Industry size

Size (mm)

Output color

Epoxy

Peak Wave Lenght (mA)

Min. Mcd

Typical mcd

Forward volt typ.

Forward volt max.

Rated current (mA)

Viewing angle (°)

Op. temperature (°C)

Storage temperature (°C)

Power Dissipation

Cont forward current max

ROHS Status

SMD LED

0603

1.6 x 0.8 x 1.1 mm

GREEN

WATER CLEAR

565

4

15

2.2

2.5

20

120

-40 to +85

105

25

Yes

Drawn :

Revision :

Ch'd :

Revision date : 2006-09-01

Datasheet : CS010

Name : LeD

Print date : 06/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
