586-1202-202: DescriptionSingle Color LED, Green, Transparent, T-1 3/4, 5.89mm; CategoryLED optoelectronic/LED photoelectric; File Size97KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

586-1202-202 Overview

Single Color LED, Green, Transparent, T-1 3/4, 5.89mm

586-1202-202 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
JESD-609 code	e0
Lens type	TRANSPARENT
Nominal luminous intensity	170.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
peak wavelength	528 nm
shape	ROUND
size	5.89 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

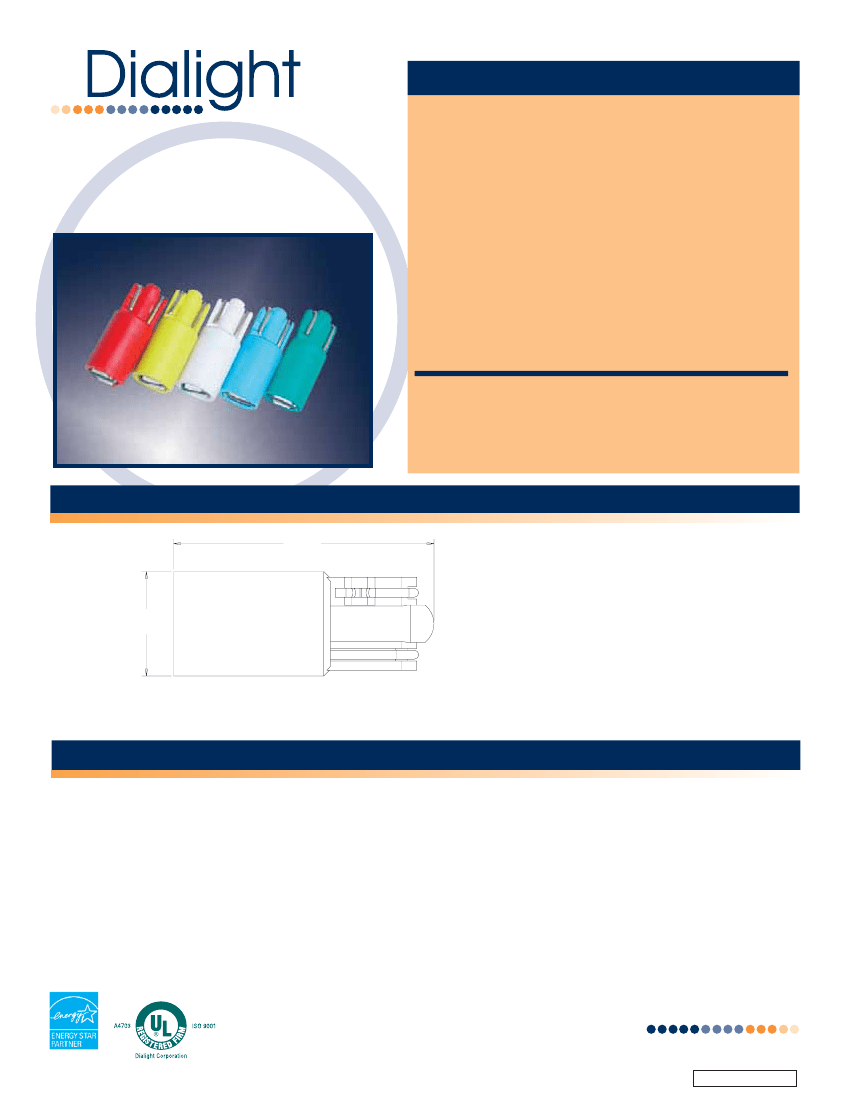

FEATURES / BENEFITS

Unique multi-LED design provide superior illumination

586 Series

BASED LED

T1 3/4 WEDGE (T5)

High brightness with low current draw - uses up to 90% less

energy than incandescent

Long Life - up to 100K hours

True non-polarized design

No heat generated

Mounts directly into industry standard socket

Resistant to shock and vibration

Incorporating AlInGaP and InGaN technology

Colors include red, green, yellow, blue, and white

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

SPECIFICATIONS

.579

[ 14,71 ]

[14.71]

Operating Voltages: 6, 12, 14, 24, and 28 VDC

Non-polarized

Operating temperature: -30

to +

.232

[ 5,89 ]

[5.89]

Storage temperature: -40

to +

100

Replaces incandescent lamp numbers*: 79, 16,

84, 86, 18, 37, 70, 73, 74, 17, 85

Measurements are typical

Dimensions are inches [mm]

See Dialight’s Incandescent lamp/based LED

cross reference guide for a complete listing

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.

If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses

which will optimize the light output.

Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEL586L001_A
