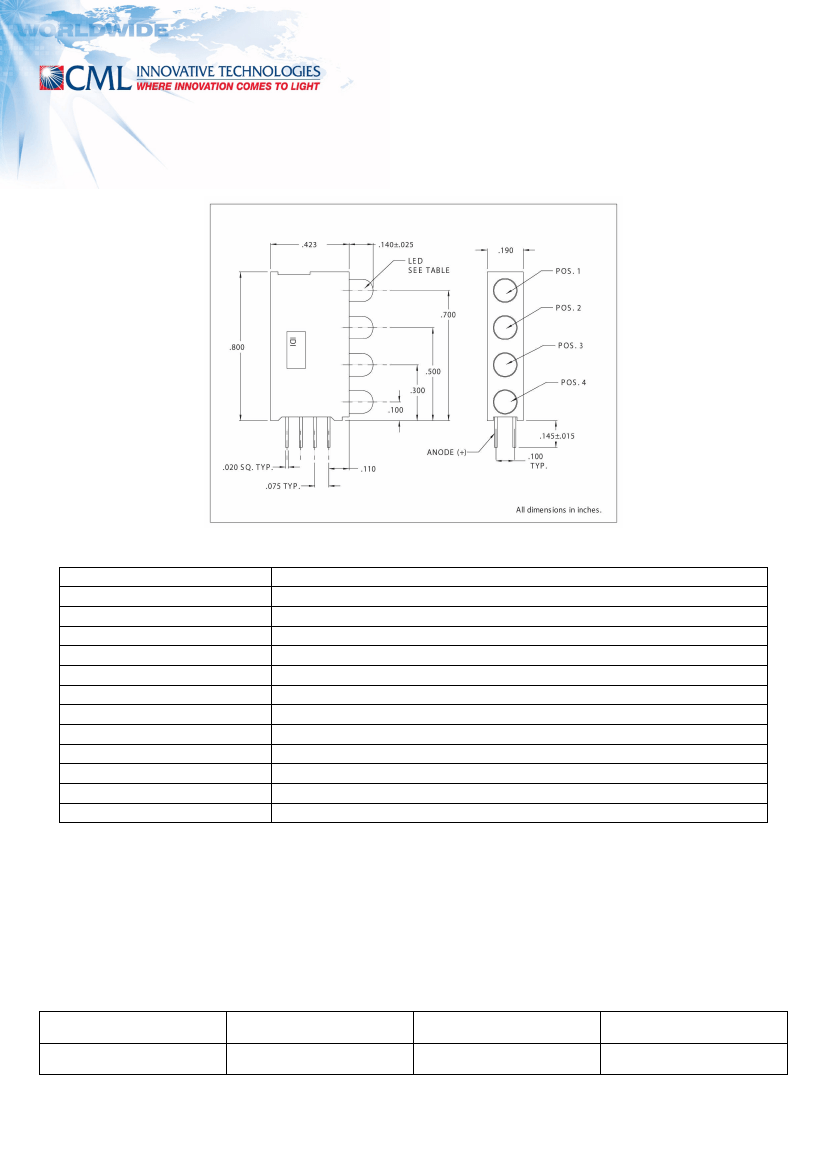

Preview

5694F3: DescriptionSingle Color LED Array, Amber, T-1, 3mm, PLASTIC PACKAGE-8; CategoryLED optoelectronic/LED photoelectric; File Size119KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric View All

5694F3 Overview

Single Color LED Array, Amber, T-1, 3mm, PLASTIC PACKAGE-8

5694F3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	PLASTIC PACKAGE-8
Reach Compliance Code	unknown
color	AMBER
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.025 A
Nominal luminous intensity	6.5 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of terminals	8
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	20.32 mm
method of packing	BULK
peak wavelength	602 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number : 5694F3

Serial Number : 5694F

Circuit Board Indicators

Emitted color

Lens color

Lum in min (mcd)

Lum in type (mcd)

Rated current (mA)

Cont forward current max

Fwd volts type

Forward volt max.

Reverse breakdown V

Viewing angle (°)

Peak Wave Lenght (mA)

Housing type

ROHS Status

Amber

5,6

16

10.0

30.0

2.2

3.0

5

55

603

UL94V-0

Yes

Drawn : VG

Revision :

Ch'd : VG

Revision date : 2006-03-06

Datasheet : 5694F

Name : VG

Print date : 12/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
