44067-0202 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 44067-0202

44067-0202: DescriptionBoard Connector, 2 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

44067-0202 Overview

Board Connector, 2 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle

44067-0202 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	POLARIZATION AVAILABLE
body width	0.291 inch
subject depth	0.39 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	5.7824 N
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	44067
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.158 inch
Terminal pitch	3 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Base Number Matches	1

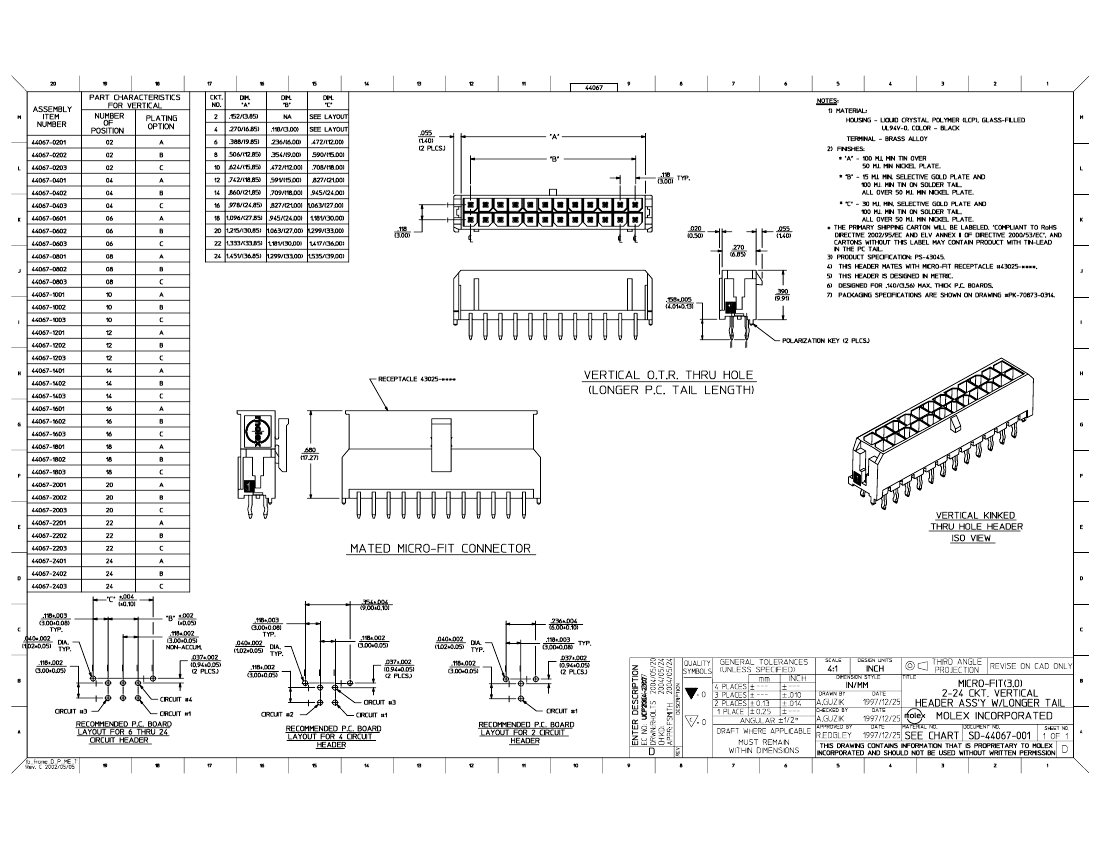

Preview

Download Datasheet

View All

44067-0202 Related Products

	44067-0202	44067-2203	44067-2003	44067-2202	44067-0203	44067-0803	44067-1293
Description	Board Connector, 2 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 2 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	44067	44067	44067	44067	44067	44067	44067
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	22	20	22	2	8	12
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Other features	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	-
body width	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	-
subject depth	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	0.39 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Contact arrangement	S0P2	S0P22	S0P20	S0P22	S0P2	S0P8	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	-
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	-
maximum insertion force	5.7824 N	5.7824 N	5.7824 N	5.7824 N	5.7824 N	5.7824 N	-
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-
Installation option 2	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	-
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	-
Plating thickness	15u inch	30u inch	30u inch	15u inch	30u inch	30u inch	-
Guideline	UL	UL	UL	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.158 inch	0.158 inch	0.158 inch	0.158 inch	0.158 inch	0.158 inch	-
