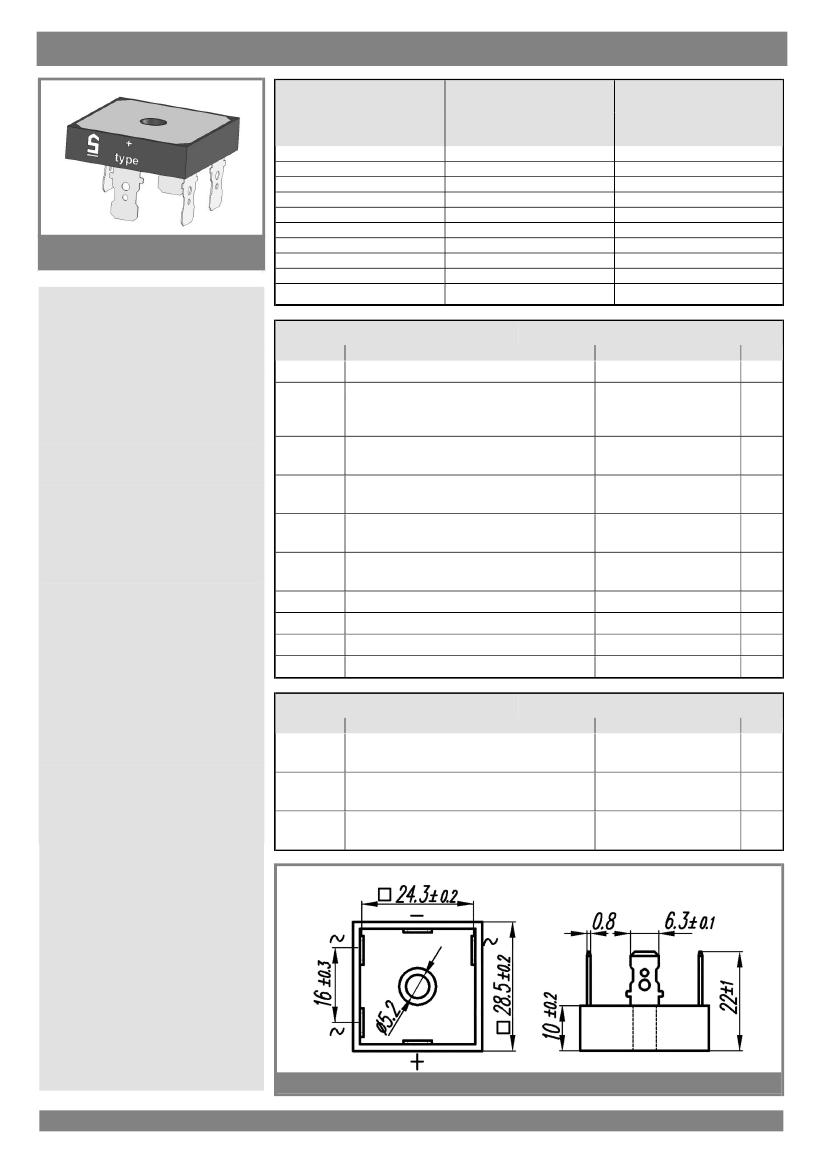

three-phase Si-bridge rectifiers

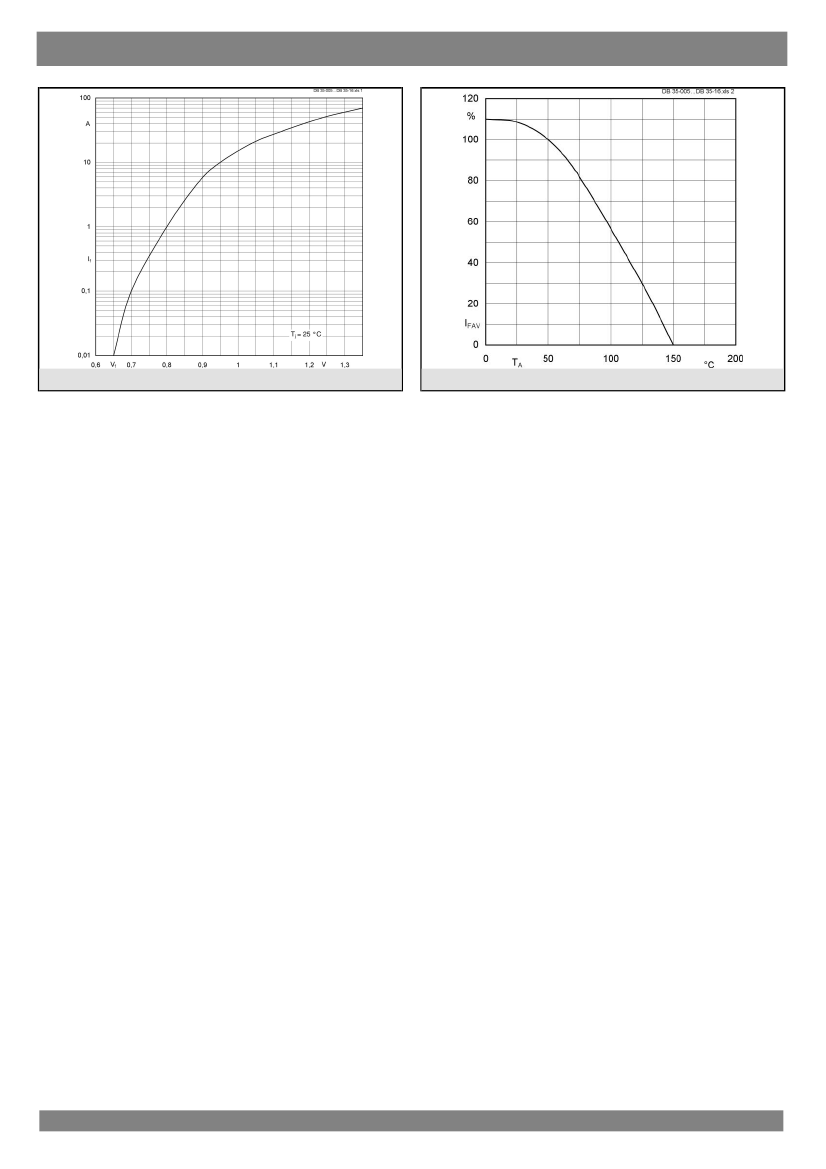

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| package instruction | S-PUFM-D5 |
| Contacts | 5 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | UL RECOGNIZED |
| Shell connection | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.05 V |
| JESD-30 code | S-PUFM-D5 |
| JESD-609 code | e3/e4 |
| Maximum non-repetitive peak forward current | 370 A |
| Number of components | 6 |
| Phase | 3 |
| Number of terminals | 5 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 35 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | SQUARE |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 50 V |
| surface mount | NO |
| Terminal surface | TIN/SILVER |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| DB35-005 | DB35-04 | DB35-01 | DB35-005_06 | DB35-02 | DB35-06 | DB35-08 | DB35-10 | |
|---|---|---|---|---|---|---|---|---|
| Description | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers | three-phase Si-bridge rectifiers |
| Is it Rohs certified? | conform to | conform to | conform to | - | conform to | conform to | conform to | conform to |
| package instruction | S-PUFM-D5 | S-PUFM-D5 | S-PUFM-D5 | - | S-PUFM-D5 | S-PUFM-D5 | S-PUFM-D5 | S-PUFM-D5 |
| Contacts | 5 | 5 | 5 | - | 5 | 5 | 5 | 5 |
| Reach Compliance Code | unknown | unknown | unknown | - | unknown | unknown | unknown | unknown |
| Other features | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | - | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | - | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS | - | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | - | SILICON | SILICON | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | - | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.05 V | 1.05 V | 1.05 V | - | 1.05 V | 1.05 V | 1.05 V | 1.05 V |
| JESD-30 code | S-PUFM-D5 | S-PUFM-D5 | S-PUFM-D5 | - | S-PUFM-D5 | S-PUFM-D5 | S-PUFM-D5 | S-PUFM-D5 |
| JESD-609 code | e3/e4 | e3/e4 | e3/e4 | - | e3/e4 | e3/e4 | e3/e4 | e3/e4 |
| Maximum non-repetitive peak forward current | 370 A | 370 A | 370 A | - | 370 A | 370 A | 370 A | 370 A |
| Number of components | 6 | 6 | 6 | - | 6 | 6 | 6 | 6 |
| Phase | 3 | 3 | 3 | - | 3 | 3 | 3 | 3 |
| Number of terminals | 5 | 5 | 5 | - | 5 | 5 | 5 | 5 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | - | 150 °C | 150 °C | 150 °C | 150 °C |
| Maximum output current | 35 A | 35 A | 35 A | - | 35 A | 35 A | 35 A | 35 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | SQUARE | SQUARE | SQUARE | - | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | - | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 50 V | 400 V | 100 V | - | 200 V | 600 V | 800 V | 1000 V |
| surface mount | NO | NO | NO | - | NO | NO | NO | NO |
| Terminal surface | TIN/SILVER | TIN/SILVER | TIN/SILVER | - | TIN/SILVER | TIN/SILVER | TIN/SILVER | TIN/SILVER |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | - | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | - | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | - | 1 | - | 1 | 1 | 1 | 1 |
